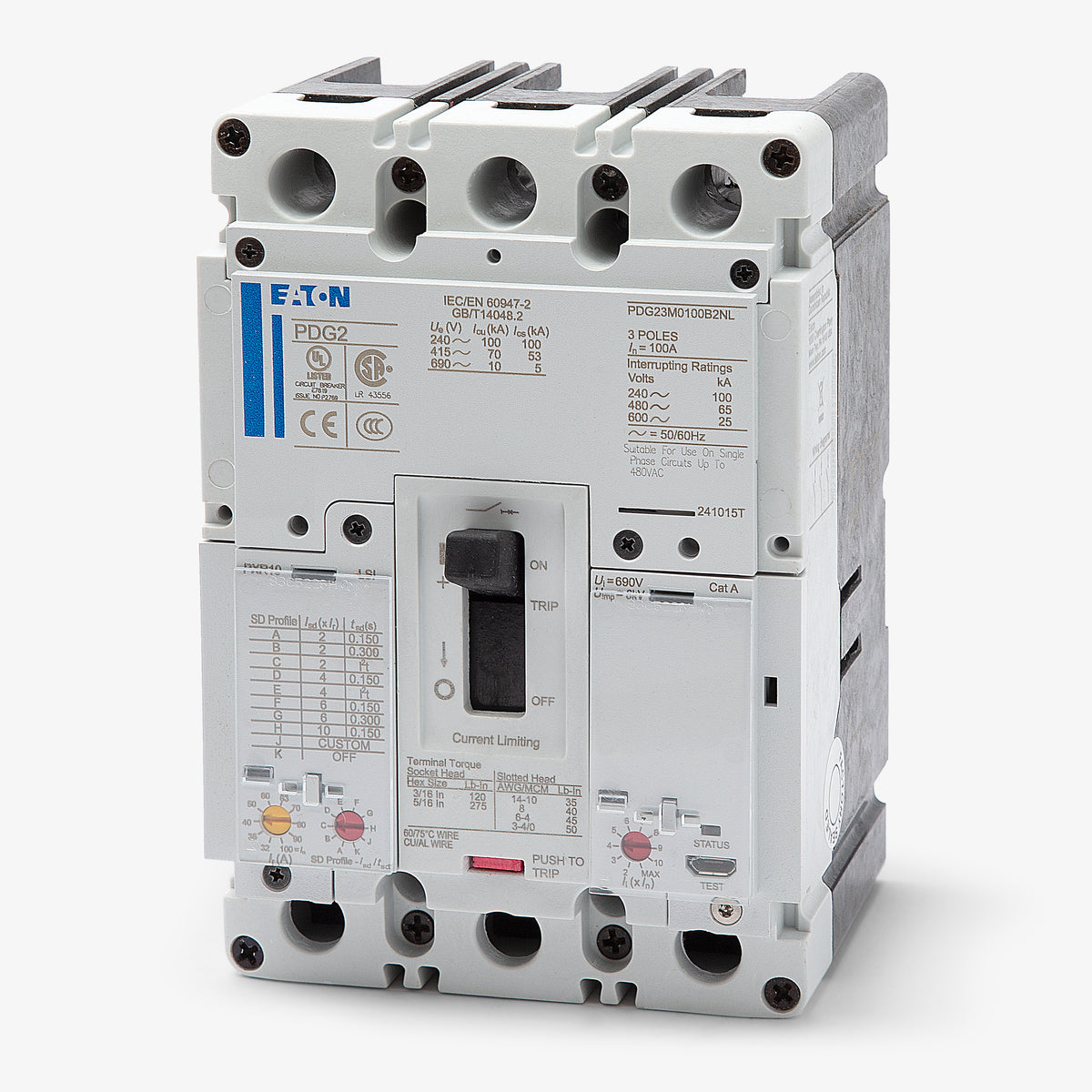

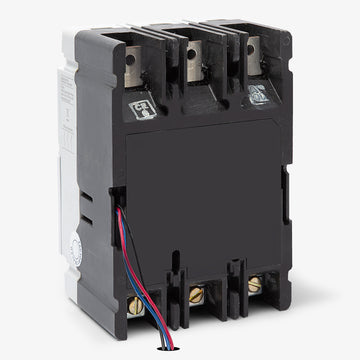

Eaton/Cutler-Hammer PDG23M0100B2NL Circuit Breaker
- 100A
- 3 Pole
- Bolt-On
Quantity
Eaton/Cutler-Hammer PDG23M0100B2NL 3 Pole Circuit Breaker
New
Quantity
Description
Eaton/Cutler-Hammer PDG23M0100B2NL 3 Pole Circuit Breaker
The Eaton/Cutler-Hammer PDG23M0100B2NL is a 3 Pole solid state molded case circuit breaker with a current rating of 100 Amps and a voltage rating of 600VAC. It has an interrupting rating of 65kAIC at 480VAC. The PDG23M0100B2NL has a panel mounting type and includes long time, short time and instantaneous trip functions.
Specifications
| Brand | Eaton/Cutler-Hammer |
|---|---|
| Series | PDG |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 125VDC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 35kA @ 600VAC, 22kA @ 125VDC, 22kA @ 250VDC |
| Frame Type | 2 |
|---|---|
| Terminal Type | Lugs |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSI |
| Trip Function | Long-Time, Short-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Standards | RoHS |
|---|---|
| Approval | CSA, CCC, IEC, UL, CE |
Product FAQs
8 answersWhat type of trip unit is equipped on the PDG23M0100B2NL?
This breaker features a Power Xpert Release (PXR) 10 solid-state electronic trip unit. It provides LSI (Long-Time, Short-Time, and Instantaneous) protection functions for precise coordination.
What terminal configuration comes standard with the PDG23M0100B2NL?

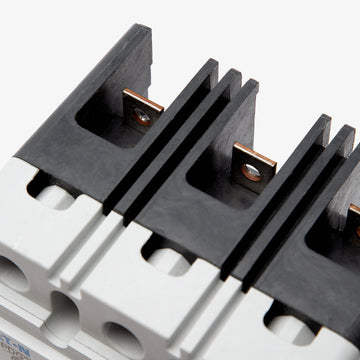

This model is supplied with standard load-side terminals only (part number PDG2X3T100). Line-side terminals or lugs must be sourced separately depending on your installation requirements.
Which Eaton breaker frame size does the PDG23M0100B2NL belong to?
It is part of the Power Defense Frame 2 (PDG2) family. It shares accessories, internal modules, and mounting dimensions with other Frame 2 molded case circuit breakers.
Is the Eaton PDG23M0100B2NL globally rated?
Yes, the Power Defense series is a globally accepted platform. This breaker meets major industry standards including UL 489, CSA, IEC, and CCC, making it suitable for international applications.
How can I configure the settings on the PXR10 trip unit?
The Power Xpert Release (PXR) 10 trip unit features a USB port for connection to a PC. Using Eaton's Power Xpert Protection Manager (PXPM) software, you can test, configure, and troubleshoot the breaker settings.
Are internal accessories field-installable on the PDG23M0100B2NL?
Yes, the Power Defense Frame 2 breakers feature a modular design that allows for field-installable internal accessories, such as auxiliary switches, shunt trips, and undervoltage releases.
What is the UPC for the Eaton PDG23M0100B2NL?
The UPC for this specific Power Defense circuit breaker is 786679937228.
Does the PDG23M0100B2NL use thermal-magnetic or solid-state protection?
This breaker uses solid-state electronic protection via its PXR 10 trip unit, which offers enhanced accuracy and adjustability compared to traditional thermal-magnetic mechanisms.
