Eaton/Cutler-Hammer PDG23P0030TFFL 3 Pole Circuit Breaker
New
Quantity
Description

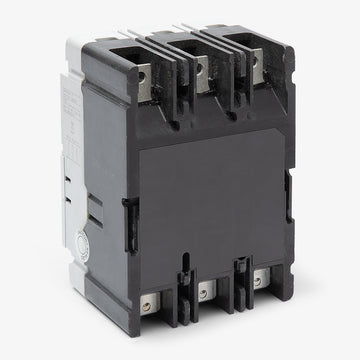

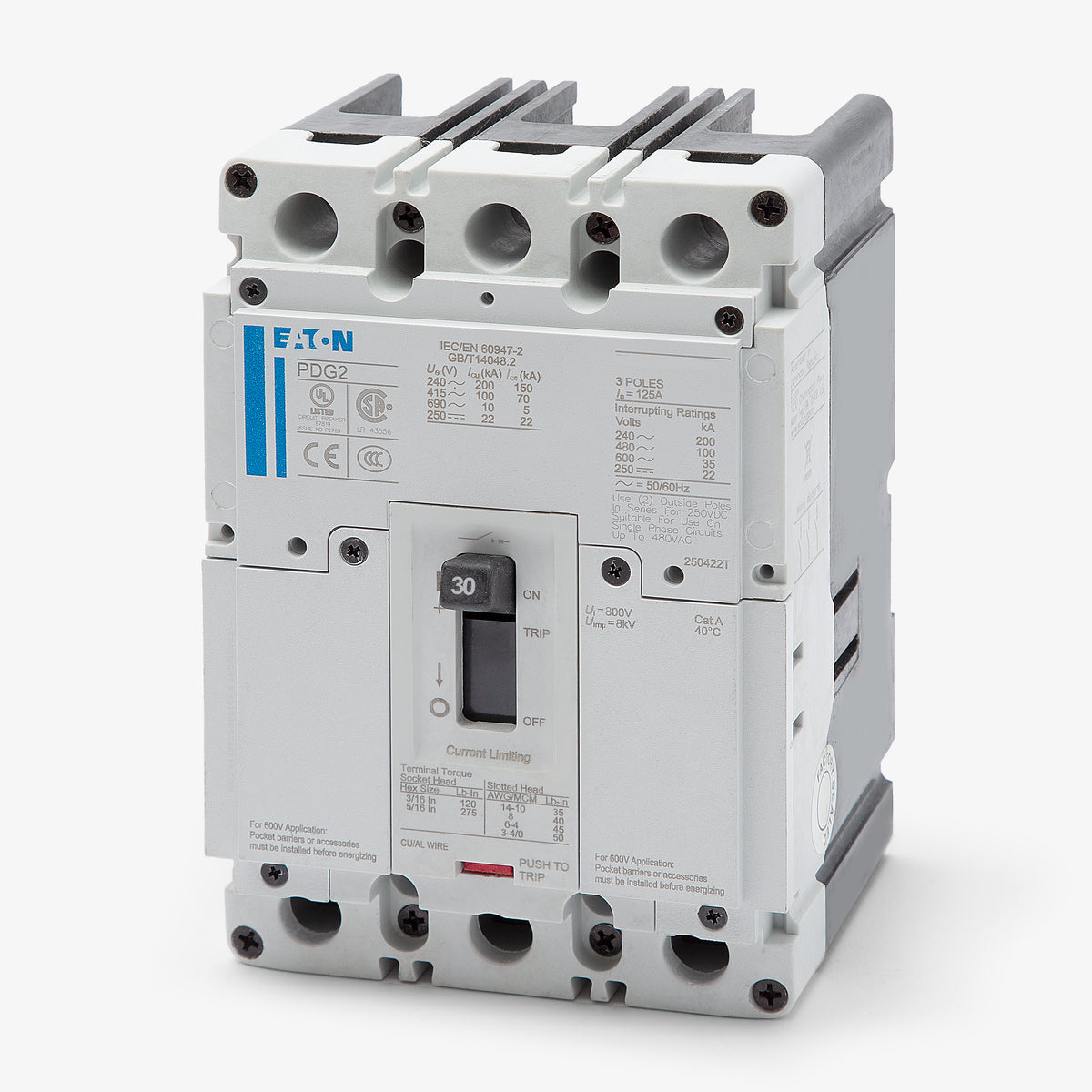

Eaton/Cutler-Hammer PDG23P0030TFFL 3 Pole Circuit Breaker
The Eaton/Cutler-Hammer PDG23P0030TFFL is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 30 Amps and a voltage rating of 600VAC. It has an interrupting rating of 100kAIC at 480VAC. The PDG23P0030TFFL has a bolt-on connection type and includes long time and instantaneous trip functions.
Specifications
| Brand | Eaton/Cutler-Hammer |
|---|---|
| Series | PDG2 |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 100kA @ 480VAC, 35kA @ 600VAC |
| Frame Type | 2 |
|---|---|
| Terminal Type | Lugs |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Standards | RoHS |
|---|---|
| Approval | UL, CSA, IEC, CCC |
Product FAQs
8 answersWhat older Eaton or Cutler-Hammer breaker does the PDG23P0030TFFL replace?
The PDG23P0030TFFL is the modern Power Defense Frame 2 upgrade for the legacy Eaton FDC3030 circuit breaker. It provides the same 30A rating and 100kAIC interrupting capacity at 480VAC, though a retrofit kit may be required depending on your specific panelboard.

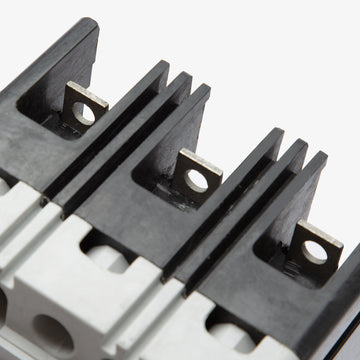

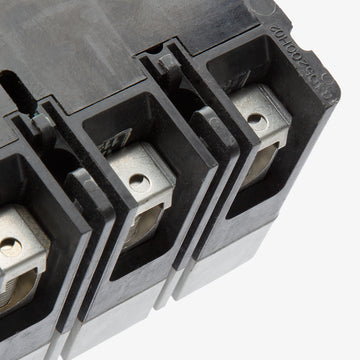

Does the PDG23P0030TFFL include line and load lugs?
No. The TFFL suffix indicates this breaker includes standard lugs on the load side only. The line side is designed to bolt directly to a panelboard or switchboard bus. If you need standard lugs on both the line and load sides, you will need the TFFJ variant.
Is the trip setting on the PDG23P0030TFFL adjustable?
No. This breaker features a fixed thermal and fixed magnetic (LI) trip unit, meaning the 30A overload and short-circuit protection settings are not field-adjustable.
Is the Eaton Power Defense PDG23P0030TFFL globally rated?
Yes. The G in the PDG prefix indicates it is a globally rated platform, designed to meet UL 489, CSA, IEC, and CCC standards for use in both North American and international applications.
Can the PDG23P0030TFFL be used in DC applications?
Yes. In addition to its 600VAC rating, this Power Defense Frame 2 thermal-magnetic breaker is rated for up to 250VDC, making it suitable for a variety of direct current applications.
What equipment is the PDG23P0030TFFL designed to mount into?
This Frame 2 breaker is designed to bolt directly into Eaton Power Defense panelboards, switchboards, and compatible industrial enclosures.
Does the PDG23P0030TFFL include an Arcflash Reduction Maintenance System?
No. The Arcflash Reduction Maintenance System is typically available on Eaton breakers equipped with advanced Power Xpert Release (PXR) electronic trip units. The PDG23P0030TFFL uses a standard fixed thermal-magnetic trip unit.
What does the P in the PDG23P0030TFFL catalog number signify?
In the Eaton Power Defense nomenclature, the P designates the interrupting rating tier. For Frame 2 breakers, it indicates a capacity of 100kAIC at 480VAC.
