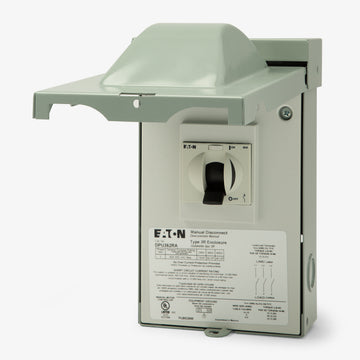

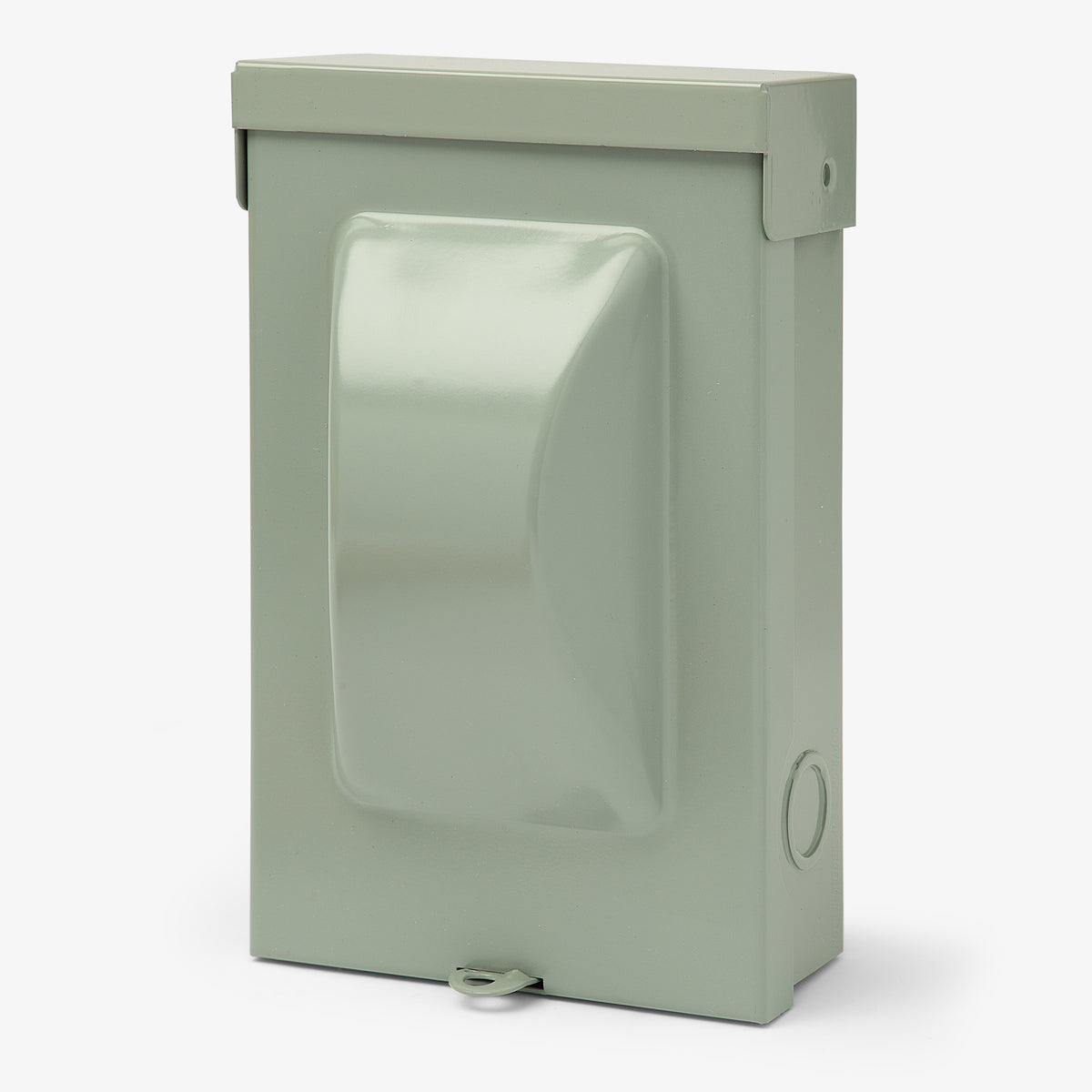

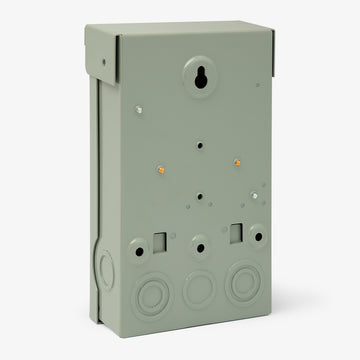

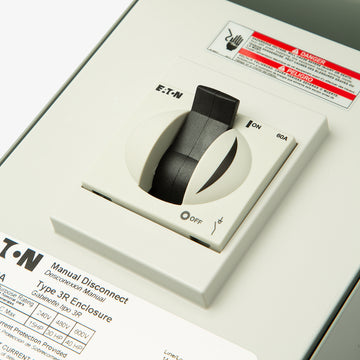

Eaton DPU362RA Disconnect Switch
The Eaton DPU362RA is a disconnect switch with a current rating of 60 Amps and a voltage rating of 240/480/600VAC. It has an interrupting rating of 10kAIC. The DPU362RA has a surface mounting type and it is used for electrical assemblies, panels and EOEMs, power distribution and outdoor.
Specifications
| Fusibility | Non-Fusible |
|---|---|
| Amperage | 60 A |
| Voltage | 240/480/600VAC |
| Poles | 3 |
| Phase | 3 |
|---|---|
| Interrupting Rating | 10kAIC |
| Mounting Type | Surface |
|---|---|
| Frame Type | DPU |
| Wire Gauge | AWG 14 to AWG 4, Cu/Al |
| For Use With | Air Conditioning Unit |
| Approval | UL, CSA |
|---|---|
| NEMA Rating | 3R |
| Standards | ANSI |
| Enclosure Material | Galvanized Steel |
| Series | DPU |
|---|---|
| Brand | Eaton |
| Color | ANSI 61 Gray |
