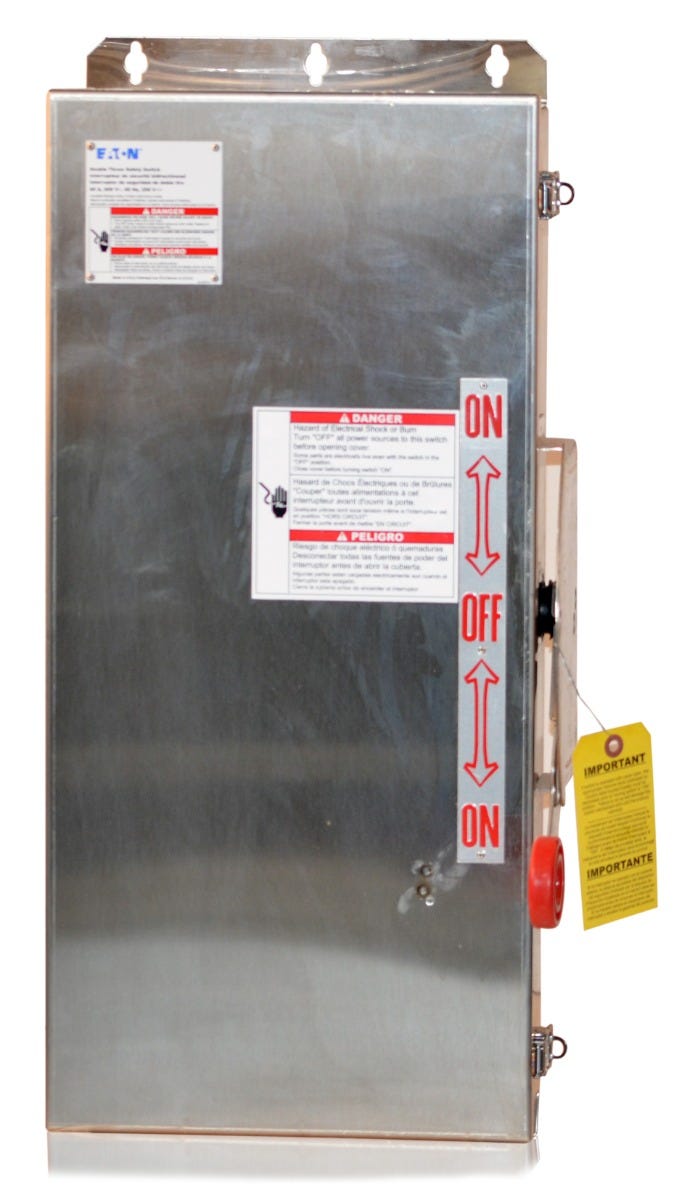

Eaton DT362UWK Safety Switch
The Eaton DT362UWK is a 3 Pole safety switch with a current rating of 60 Amps and a voltage rating of 600VAC, 250VDC. It has an interrupting rating of 100kAIC at 600V. The DT362UWK has a surface mounting type and it is used for commercial, institutional buildings and structures, power distribution and control applications.
Specifications
| Duty Rating | Heavy Duty |
|---|---|
| Fusibility | Non-Fusible |
| Amperage | 60 A |
| Voltage | 600VAC, 250VDC |
| Poles | 3 |
|---|---|
| Phase | 3 |
| Interrupting Rating | 100kAIC at 600V |
| Mounting Type | Surface |
|---|---|
| For Use With | Service Entrance |
| Configuration | Double |
| Number Of Wires | 3 |
| Approval | UL, NEMA |
|---|---|
| NEMA Rating | 4X |
| Enclosure Material | Stainless Steel |
| Series | DT |
|---|---|
| Brand | Eaton |
| MPN | DT362UWK |
| UPC | 782113747958 |
