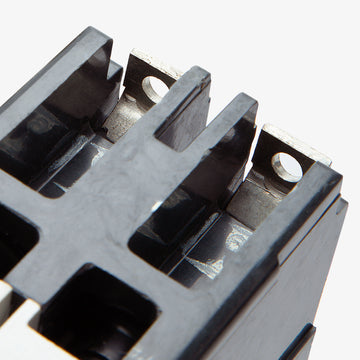

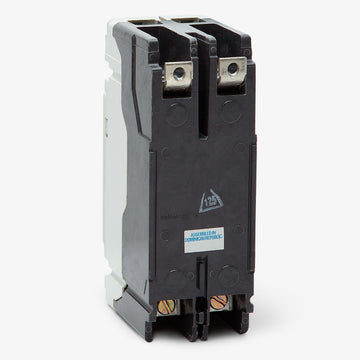

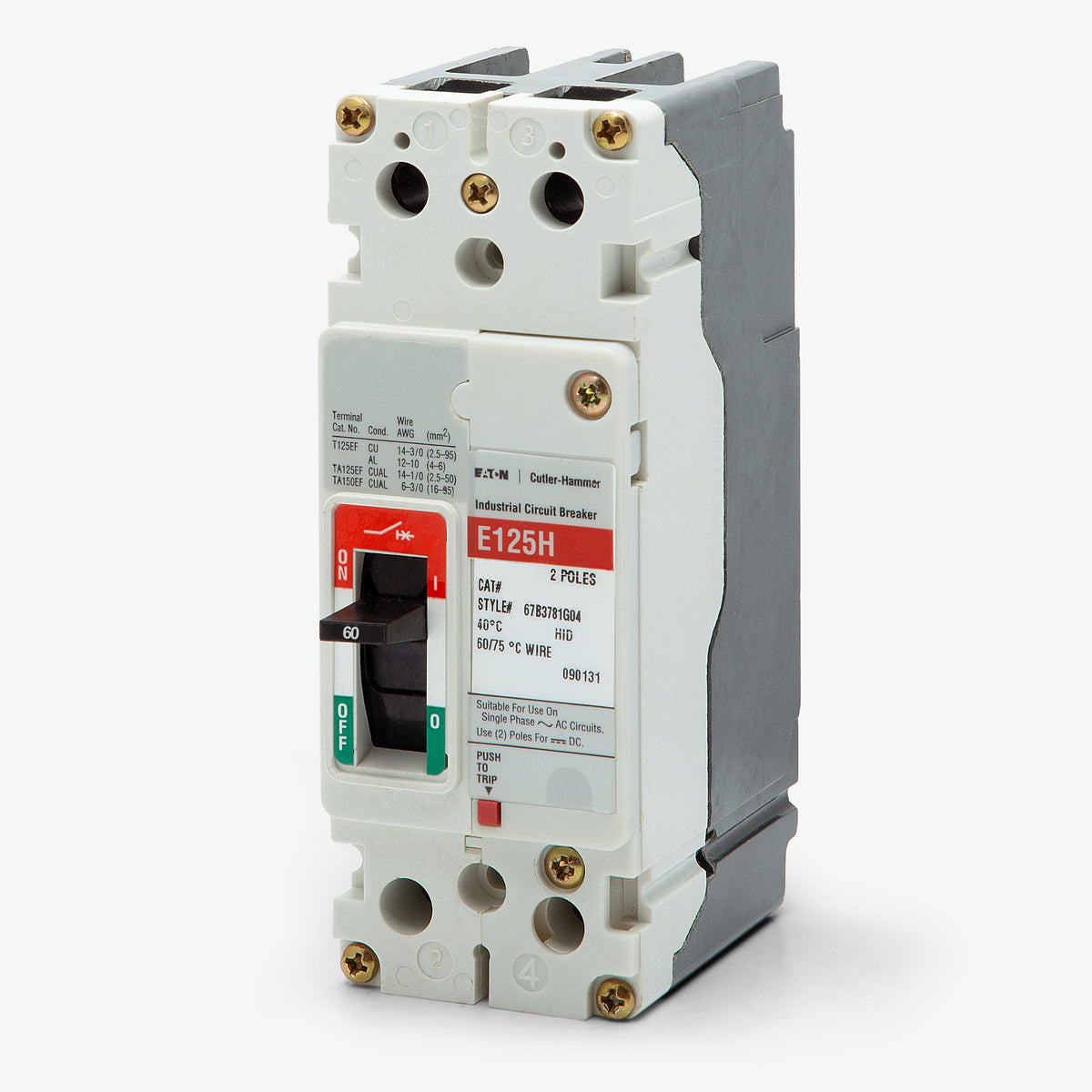

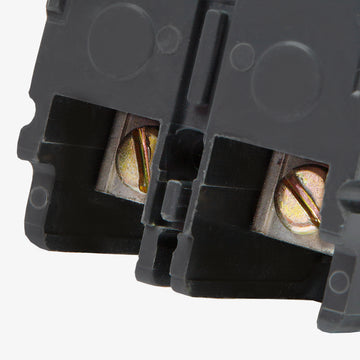

Eaton / Cutler-Hammer EGB2060FFG Molded Case Circuit Breaker
- 60A
- 2 Pole
- Unit Mount
Eaton / Cutler-Hammer
EGB2060FFG
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
EGB2060FFG
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer EGB2060FFG - 60A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerEGB2050FFG
50A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerEGB2040FFG
40A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerEGB2090FFG
90A 2 Pole Molded Case Circuit Breaker
Description
Built for heavy-duty power distribution, the Eaton EGB2060FFG is a 60A, 2-pole molded case circuit breaker. It provides essential long-time and instantaneous (LI) protection within the Series G lineup. Designed with a unit-mount configuration, this EG-frame component fits securely into Eaton switchboards and enclosures. Offering an 18 kAIC interrupt rating at 480VAC, the breaker ensures reliable fault clearing. It is HACR rated, current limiting, and reverse feed capable.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | EGB2060FFG |
| Series | EGB |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | EG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series G Enclosures, Switchboards |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Rotary Handle, Motor Operator |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Reverse Feed |
Product FAQs
6 answersWhat does the "FFG" suffix mean in the EGB2060FFG catalog number?
In Eaton Series G nomenclature, "FF" indicates the breaker has a fixed thermal and fixed magnetic trip unit. The "G" indicates it comes standard with line and load side lug terminals.
Can the EGB2060FFG be mounted on a DIN rail?
Out of the box, this is a unit mount breaker designed to be bolted directly to a panel or chassis. However, it can be adapted for DIN rail mounting using a compatible Eaton DIN rail adapter kit, such as the EGDIN or EF34DIN.
Is this circuit breaker suitable for direct current (DC) applications?
Yes, the EGB2060FFG is rated for use in DC systems up to 250VDC, where it provides an interrupting rating of 10kAIC. It is commonly used in battery storage, UPS systems, and industrial DC distribution.
What type of enclosures are compatible with the EGB2060FFG?
This EG-frame breaker is designed for installation in Eaton Series G enclosures, switchboards, and motor control centers that accept unit mount breakers.
Does this breaker provide ground fault or arc fault protection?
No, the EGB2060FFG features a standard thermal-magnetic trip unit that provides overload and short-circuit protection only. It does not include built-in ground fault (GFCI) or arc fault (AFCI) circuitry.
What wire sizes do the standard lugs on this breaker accept?
The included feed-thru line and load lugs accept wire gauges ranging from 14 AWG to 1/0 AWG. Always ensure connections are torqued to the manufacturer specifications printed on the breaker label.
