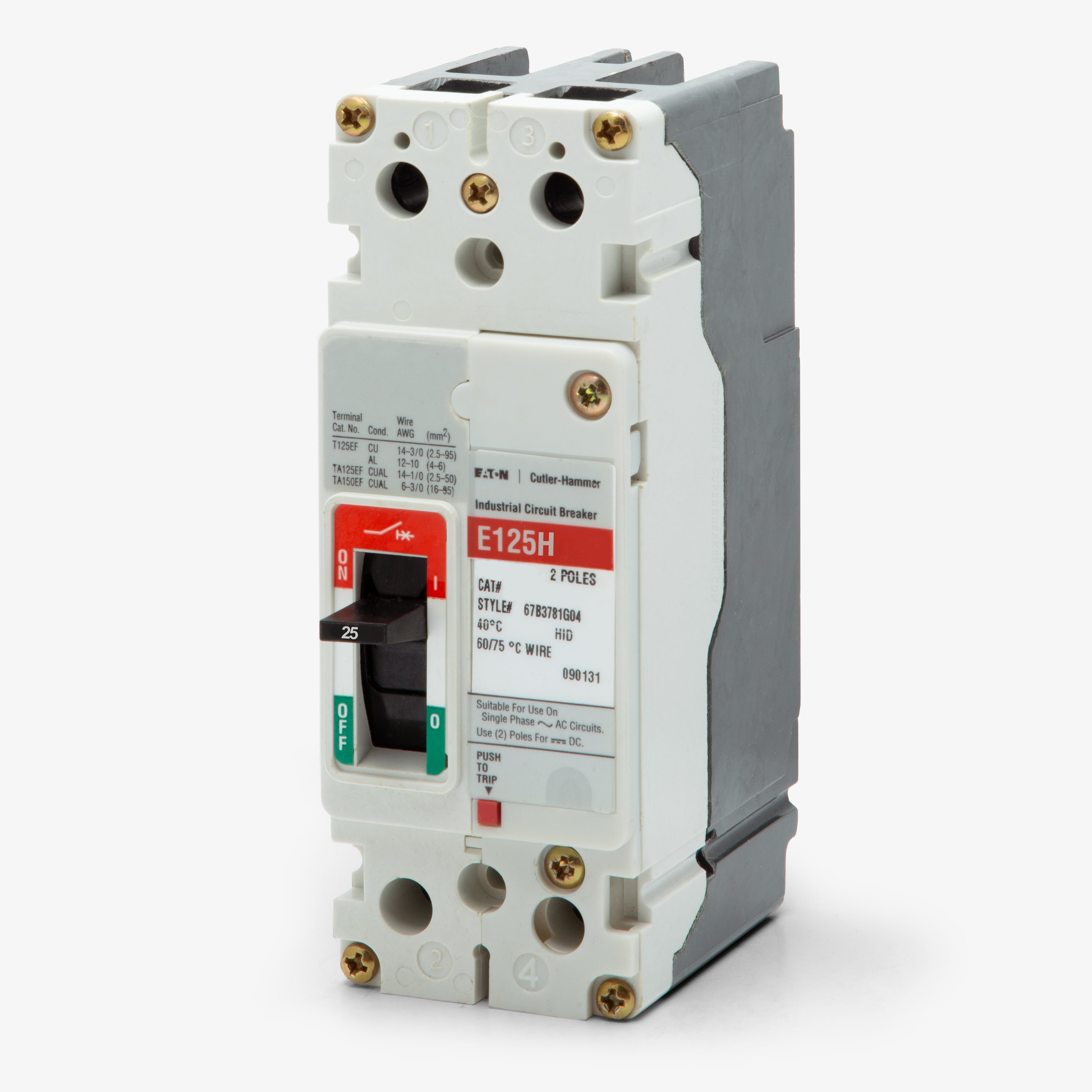

Eaton / Cutler-Hammer EGE2025FFG - 25A 2 Pole Molded Case Circuit Breaker

Brand Eaton / Cutler-Hammer
SKU EGE2025FFG
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99

Eaton / Cutler-Hammer EGE2025FFG - 25A 2 Pole Molded Case Circuit Breaker

Brand Eaton / Cutler-Hammer
SKU EGE2025FFG
Select Item Condition
Earn 355 SuperPoints

Quantity
Planning a Big Order?
Bulk pricing available—let us know your needs for a quote.
Get a quote
Shop with Confidence
Enjoy a free 60-day warranty, extendable to 1 year at checkout.
Learn more

Eaton / Cutler-Hammer EGE2025FFG - 25A 2 Pole Molded Case Circuit Breaker

New

$355.49 No stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description
Utilizing advanced current-limiting technology, the Eaton EGE2025FFG is a 2-pole, 25A MCCB. It belongs to the Series G family, offering superior performance in a compact EG frame. Designed for unit mounting, it integrates into Pow-R-Line 1a and 2a panelboards, switchboards, and enclosures. It is replaced by the Power Defense PDG22F0025TFFJ. With a 35kAIC rating at 240VAC, it provides high-speed blow-open action to minimize fault damage. It is HACR rated and supports reverse feed.

Specifications

Brand Eaton / Cutler-Hammer
Series EGE
Part Number EGE2025FFG
Amperage 25A
Voltage 240VAC, 480VAC, 600Y/347VAC, 250VDC
Poles 2
Phase 1
AIC Rating 35kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600Y/347VAC, 10kA @ 250VDC
Mounting Style Unit Mount
Terminal Type Lugs
For Use With Eaton Pow-R-Line 1a Panelboards, Eaton Pow-R-Line 2a Panelboards, Series G Enclosures, Switchboards, Motor Control Centers
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed Thermal, Fixed Magnetic
Wire Gauge 14-3/0 AWG
Max Wire 3/0 AWG
Min Wire 14 AWG
Available Options Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Rotary Handle, Terminal Shields
Accessories Line and Load Terminals
Standards CSA C22.2 No. 5, IEC 60947-2, UL 489
Approval CE, CSA, IEC, KEMA, UL
Temp Rating 40C
Construction Features HACR Rated, Current Limiting, HID Rated, Reverse Feed
