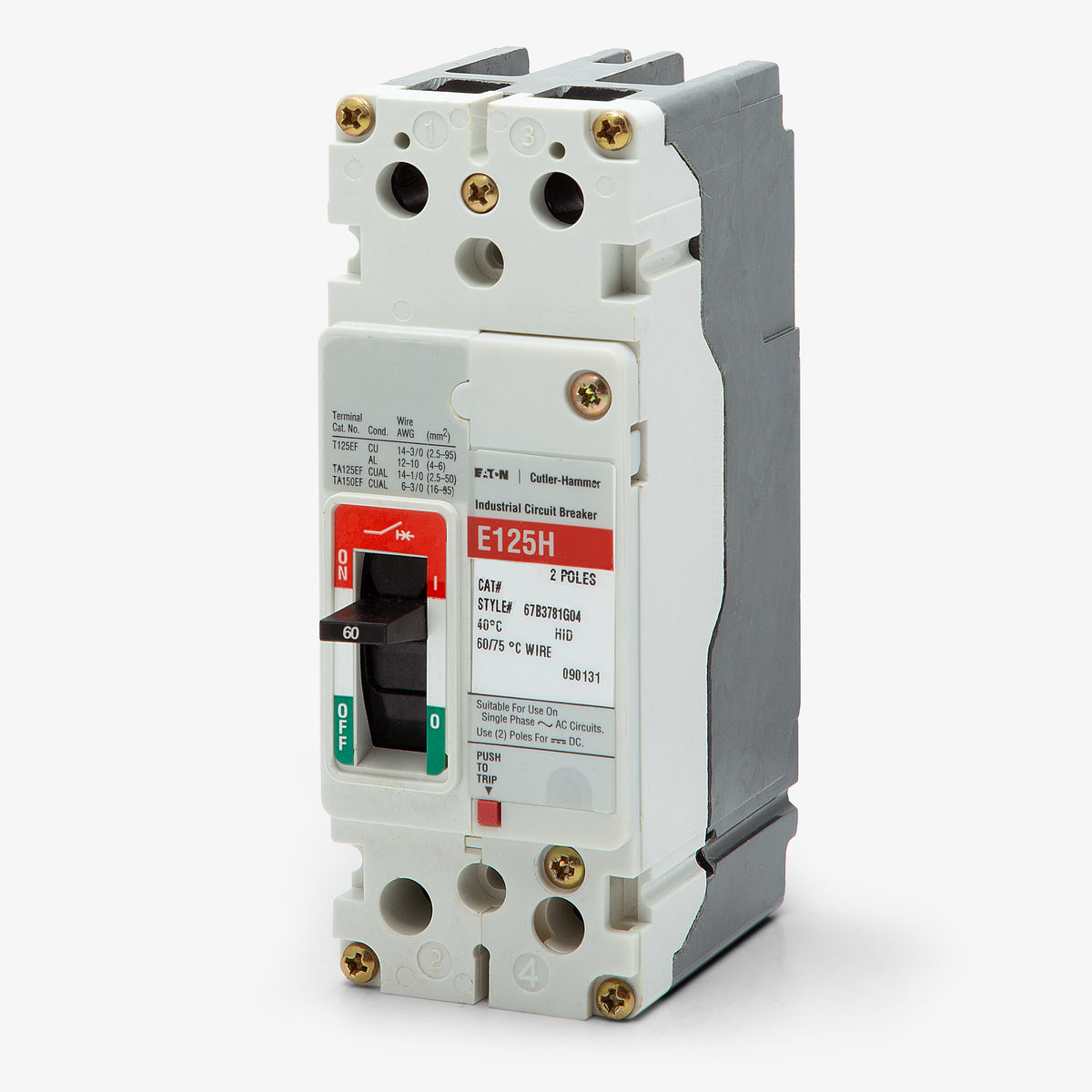

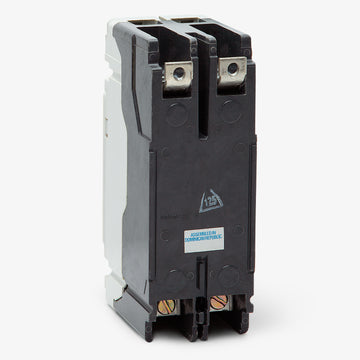

Eaton / Cutler-Hammer EGE2060FFG Molded Case Circuit Breaker
- 60A
- 2 Pole
- Unit Mount
Eaton / Cutler-Hammer
EGE2060FFG
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
EGE2060FFG
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer EGE2060FFG - 60A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerEGE2040FFG
40A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerEGE2030FFG
30A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerEGE2100FFG
100A 2 Pole Molded Case Circuit Breaker
Description
The EGE2060FFG is a 60A, 2-pole molded case circuit breaker from Eaton's Series G family. Built for industrial environments, it delivers reliable thermal-magnetic protection. This unit-mount breaker installs into Pow-R-Line 1a/2a panelboards, switchboards, and MCCs. It is replaced by the Power Defense PDG22F0060TFFJ. Rated 35 kAIC at 240VAC, it features a current-limiting design with high-speed blow-open action to minimize fault damage. It is HACR rated and supports reverse feed.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | EGE |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 35kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600Y/347VAC, 10kA @ 250VDC |
| Frame Type | EG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line 1a Panelboards, Eaton Pow-R-Line 2a Panelboards, Series G Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Rotary Handle, Terminal Shields |
|---|---|
| Accessories | Line and Load Terminals |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, KEMA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed |
Product FAQs
6 answersWhat equipment is compatible with the EGE2060FFG?
This EG-frame breaker is designed for use in Eaton Pow-R-Line 1a and 2a panelboards, Series G enclosures, switchboards, and motor control centers.

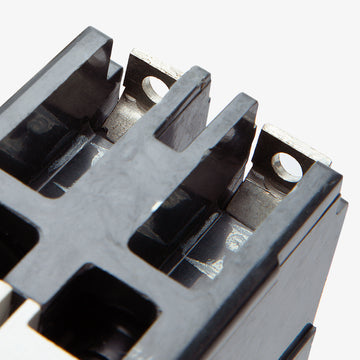

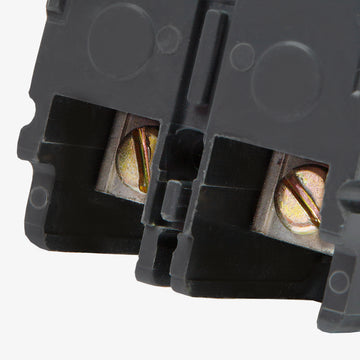

What wire sizes do the factory-installed lugs accept?
The standard line and load lugs on this breaker accommodate wire sizes from 14 AWG to 1/0 AWG.
Can the EGE2060FFG be used in DC systems?
Yes, this thermal-magnetic breaker is rated for 250VDC applications with a 10kA interrupting capacity.
What does the "FFG" suffix indicate in the EGE2060FFG catalog number?
The "FF" indicates fixed thermal and fixed magnetic trip elements. The "G" signifies that standard line and load terminals are included from the factory.
How is the EGE2060FFG mounted?
It is a unit-mount, feed-thru circuit breaker. It mounts individually and wires directly via lugs rather than plugging into a panelboard bus.
Are the trip settings on the EGE2060FFG adjustable?
No, this breaker features a thermal-magnetic trip unit with fixed Long-Time and fixed Instantaneous (LI) protection. Neither the thermal nor the magnetic trip points can be adjusted.
