Eaton / Cutler-Hammer EGH2050FFB Molded Case Circuit Breaker
- 50A
- 2 Pole
- Bolt-On
Eaton / Cutler-Hammer
EGH2050FFB
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
EGH2050FFB
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

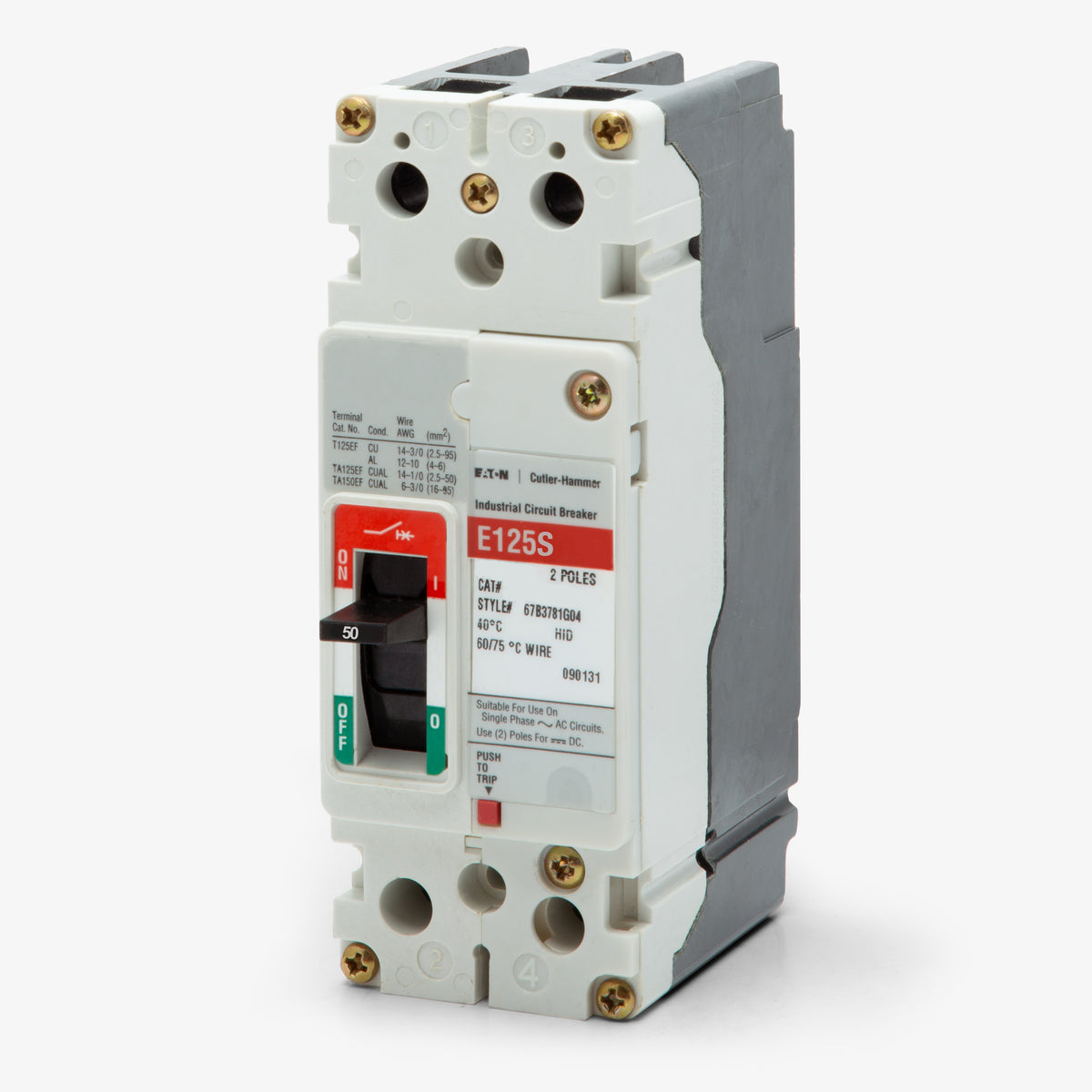

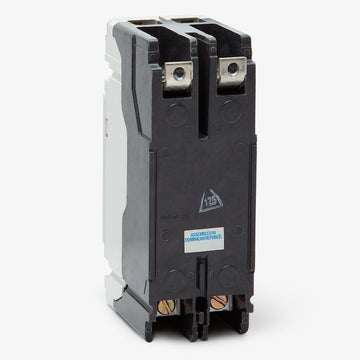

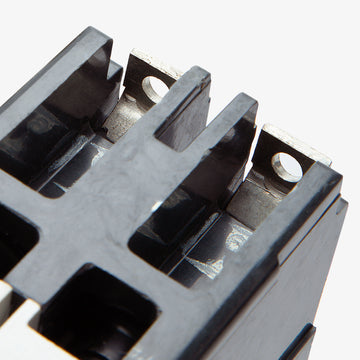

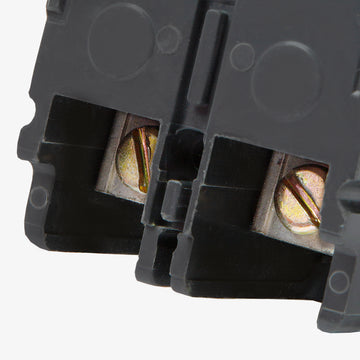

Eaton / Cutler-Hammer EGH2050FFB - 50A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerEGH2040FFB
40A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerEGH2070FFB
70A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerEGH2015FFB
15A 2 Pole Molded Case Circuit Breaker
Description
Built for commercial power distribution, this 50A Series G molded case circuit breaker delivers consistent, current-limiting protection against overloads and short circuits. It utilizes fixed thermal and magnetic trip units for reliable operation. This EG-frame device features a bolt-on mounting style, integrating seamlessly into Eaton Pow-R-Line and Series G panelboards. It comes equipped with load-side lugs. It offers a high interrupting capacity of 65 kAIC at 480VAC and is HACR rated.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | EGH |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 35kA @ 600Y/347VAC, 42kA @ 250VDC |
| Frame Type | EG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series G Panelboards, Pow-R-Line Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Handle Lock, Multi-Wire Lugs, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included, Mounting Hardware |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, KEMA, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Reverse Feed, High Interrupting Capacity |
Product FAQs
5 answersWhat panelboards are compatible with the EGH2050FFB circuit breaker?
The EGH2050FFB is designed for use in Eaton Series G panelboards and Pow-R-Line panelboards. It features a bolt-on connection for secure mounting directly to the busbar.
What wire gauge is supported by the terminals on the EGH2050FFB?
The factory-installed lugs accept wire sizes from 14 AWG up to 1/0 AWG. The terminals are rated for both copper and aluminum (Cu/Al) conductors.
Is the EGH2050FFB rated for direct current (DC) applications?
Yes, this 2-pole breaker is rated for use in DC systems up to 250VDC, where it delivers a 42kA interrupting capacity.
Does the EGH2050FFB offer adjustable trip settings?
No, this model is equipped with a fixed thermal and fixed magnetic trip unit. It delivers standard long-time and instantaneous (LI) protection but does not allow for field adjustments of the trip curve.
What do the letters "FFB" signify in the EGH2050FFB part number?
In Eaton's Series G catalog breakdown, "FFB" designates a Fixed thermal trip, Fixed magnetic trip, and a Bolt-on mounting configuration.
