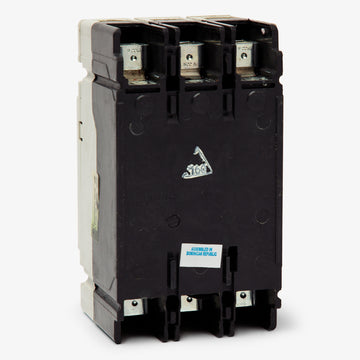

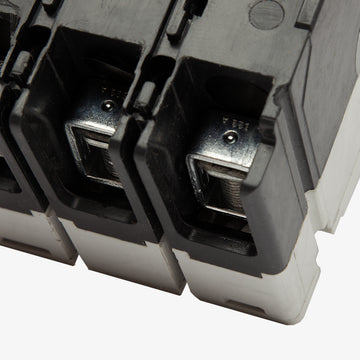

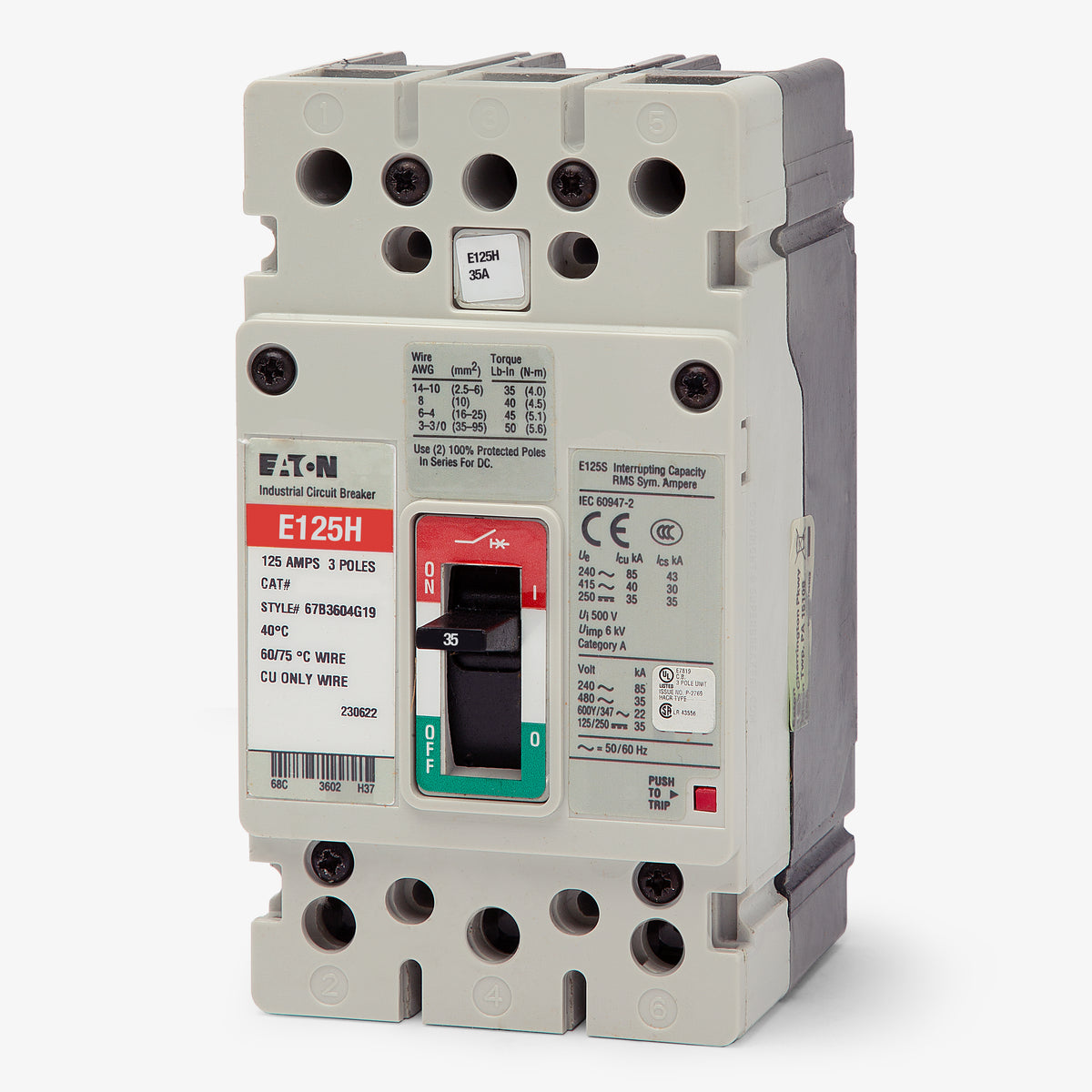

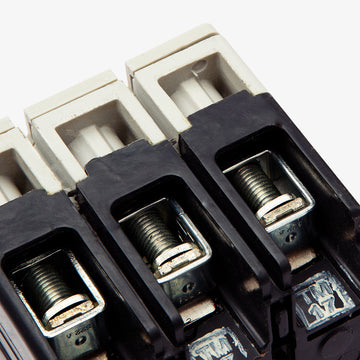

Eaton / Cutler-Hammer EGH3035FFG Molded Case Circuit Breaker
- 35A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
EGH3035FFG
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
EGH3035FFG
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer EGH3035FFG - 35A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerEGH3030FFG
30A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerEGH3025FFG
25A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerEGH3050FFG
50A 3 Pole Molded Case Circuit Breaker
Description
Designed for industrial switchgear, the Eaton EGH3035FFG is a 3-pole, 35A molded case circuit breaker from the Series G family. It features a unit-mount configuration with included line and load lugs, making it ideal for standalone enclosures and custom control panels. Equipped with fixed thermal-magnetic trip technology, it delivers dependable long-time and instantaneous (LI) protection. Note that this legacy model is officially replaced by the Power Defense PDG13M0035TFFJ.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | EGH3035FFG |
| Series | EGH |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 35kA @ 600Y/347VAC, 42kA @ 250VDC |
| Frame Type | EG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series G Enclosures, Panelboards, Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included, Mounting Hardware |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CCC, CE, CSA, IEC, KEMA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, Blow-Open Action, Non-Interchangeable Trip |
Product FAQs
6 answersWhat types of enclosures and panels are compatible with the EGH3035FFG?
This EG-frame breaker is designed for unit mounting in Eaton Series G enclosures, panelboards, and switchboards.
Can the EGH3035FFG be used in DC power systems?
Yes, this breaker is rated for use in DC applications up to 250VDC, providing a 42kA interrupting capacity.
Are the trip settings adjustable on the EGH3035FFG?
No, this breaker features a fixed thermal and fixed magnetic trip unit, providing non-adjustable long-time and instantaneous protection.
How is the EGH3035FFG mounted within a panel?
It features a unit-mount configuration, meaning it bolts directly to the chassis or backpan of compatible Eaton switchboards and enclosures rather than snapping onto a DIN rail or busbar.
What does the FFG suffix indicate in the EGH3035FFG catalog number?
The FFG suffix indicates that the breaker comes as a complete unit with fixed thermal and fixed magnetic trip functions, includes standard line and load lugs, and belongs to the Series G family.
Is there a newer replacement for the legacy EGH3035FFG breaker?
Yes, Eaton has transitioned the Series G line to the Power Defense series. The direct replacement for this model is the Power Defense PDG13M0035TFFJ.
