Eaton / Cutler-Hammer EGS3020FFG Molded Case Circuit Breaker
- 20A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
EGS3020FFG
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
EGS3020FFG
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

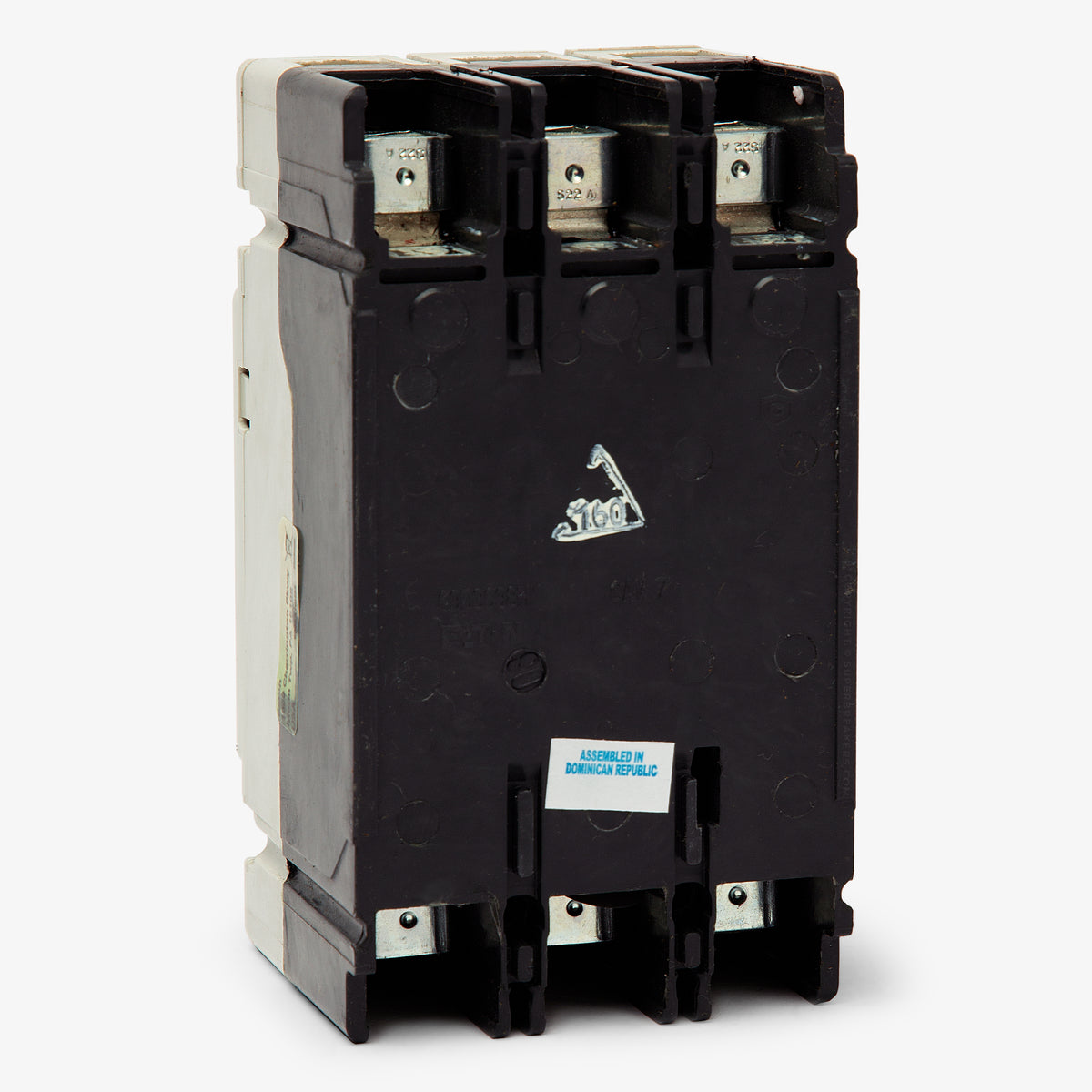

Eaton / Cutler-Hammer EGS3020FFG - 20A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerEGS3015FFG
15A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerEGS3030FFG
30A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerEGS3035FFG
35A 3 Pole Molded Case Circuit Breaker
Description
Engineered for industrial applications, the EGS3020FFG is a three-pole, 20-amp molded case circuit breaker from Eaton's Series G family. This EG-frame device provides robust thermal magnetic protection with long-time and instantaneous trip functions. Designed with a unit mount configuration, it installs into Eaton Series G enclosures and switchboards. Rated for 35 kAIC at 480VAC, it ensures high-speed blow-open action. Note: This unit is being replaced by the Power Defense PDG13M0020TFFJ.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | EGS3020FFG |
| Series | EGS |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 85kA @ 240VAC, 35kA @ 480VAC, 22kA @ 600Y/347VAC, 35kA @ 125/250VDC |
| Frame Type | EG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series G Enclosures, Switchboards, MCCs |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Handle Mechanism |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, HACR, IEC, KEMA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed |
Product FAQs
7 answersWhat is the direct replacement for the EGS3020FFG?
Eaton is transitioning from the Series G line to the Power Defense series. The direct replacement for this breaker is the Eaton Power Defense PDG13M0020TFFJ.
How do I mount the EGS3020FFG onto a DIN rail?
While this breaker comes standard as a unit mount device, it can be installed on a DIN rail by using the Eaton EGDIN adapter kit, which is designed specifically for 2, 3, and 4-pole EG-frame breakers.
Can the thermal or magnetic trip points be adjusted in the field?
No, the EGS3020FFG features a basic LI (Long-Time, Instantaneous) thermal-magnetic trip unit with fixed thermal and fixed magnetic settings. It does not support field adjustments.
Which Eaton enclosures and panels accept the EGS3020FFG?
This EG-frame breaker is engineered for installation in Eaton Series G enclosures, switchboards, and Motor Control Centers (MCCs).
What wire sizes are compatible with the factory lugs on this breaker?
The included feed-thru line and load lugs are designed to accept wire gauges from 14 AWG up to 1/0 AWG.
Is this breaker suitable for DC voltage applications?
Yes, in addition to its AC ratings, the EGS3020FFG is rated for 125/250VDC systems, where it provides an interrupting capacity of 35 kAIC.
Does the EGS3020FFG provide built-in ground fault protection?
No, this breaker features an LI (Long-Time, Instantaneous) trip unit for overload and short-circuit protection only. It does not include integrated ground fault or earth leakage protection.
