Eaton / Cutler-Hammer EHD1090 Molded Case Circuit Breaker
- 90A
- 1 Pole
- Bolt-On
Eaton / Cutler-Hammer
EHD1090
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
EHD1090
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

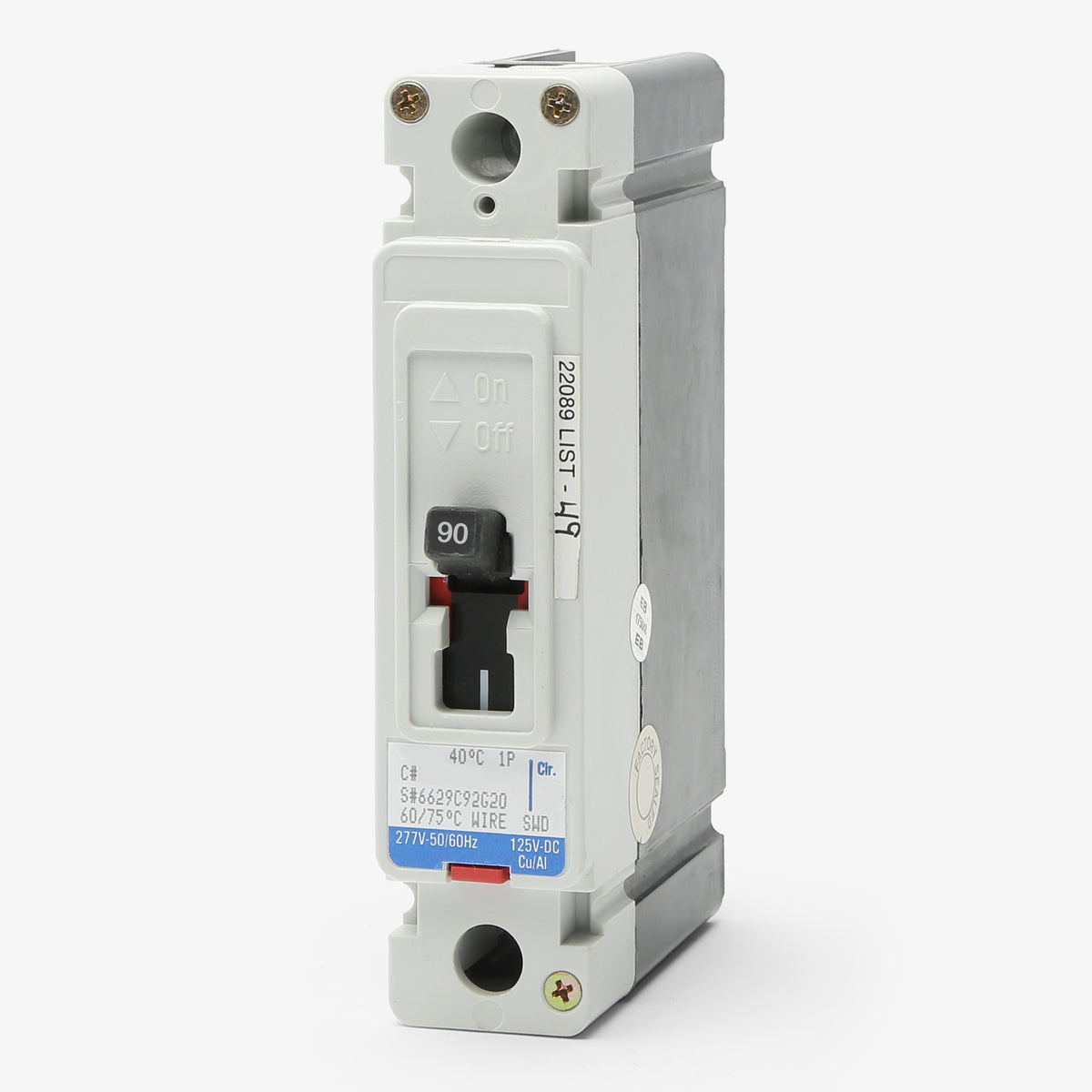

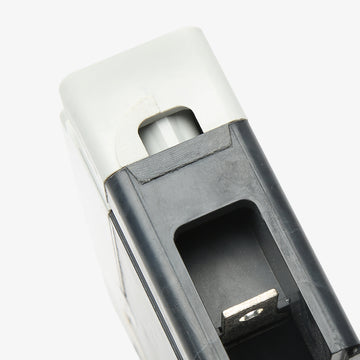

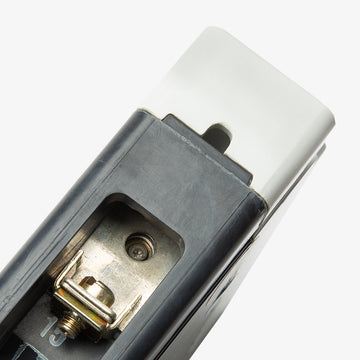

Eaton / Cutler-Hammer EHD1090 - 90A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
80A 1 Pole Molded Case Circuit Breaker
70A 1 Pole Molded Case Circuit Breaker
60A 1 Pole Molded Case Circuit Breaker
Description
Operating within the F-Frame classification, the 90-amp EHD1090 offers heavy-duty thermal-magnetic protection for industrial facilities. This single-pole breaker provides essential long-time and instantaneous trip capabilities for standard commercial loads. The unit mounts into Eaton Series C panelboards and switchboards using a secure bolt-on connection. It replaces legacy FDB1090 and FD1090 units, and is itself succeeded by the Power Defense PDG11F0090TFFL when using a retrofit kit.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | EHD |
| Amperage | 90A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | EHD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Load Side Lug |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
7 answersWhat panelboards are compatible with the EHD1090 circuit breaker?
This breaker is designed for use in Eaton Series C panelboards and switchboards. It is also backward compatible with many legacy Cutler-Hammer and Westinghouse F-frame panelboards.
Can the EHD1090 be reverse fed?
Yes. Like all standard Eaton F-frame molded case circuit breakers, the EHD1090 is suitable for reverse feed applications.
Can I use the EHD1090 in a DC circuit?
Yes, this thermal magnetic breaker is suitable for direct current applications up to 125VDC, where it provides a 10kAIC interrupting rating.
Is this the same as a Cutler-Hammer or Westinghouse EHD1090?
Yes. Eaton acquired the Cutler-Hammer and Westinghouse distribution equipment lines. An Eaton EHD1090 is the exact same F-frame breaker and serves as a direct replacement for older Cutler-Hammer or Westinghouse models with the same catalog number.
Are the trip settings on the EHD1090 adjustable?
No. This breaker features a fixed thermal and fixed magnetic trip unit. The long-time and instantaneous trip functions are factory set and cannot be adjusted in the field.
What wire size is supported by the EHD1090 lugs?
The included lugs accommodate wire sizes ranging from 14 AWG to 1/0 AWG. Ensure proper torque specifications are followed during installation.
Is the EHD1090 HACR rated?
Yes. All Eaton F-frame circuit breakers, including the EHD1090, are HACR rated for use with heating, air conditioning, and refrigeration equipment.
