Eaton / Cutler-Hammer EHD3010 Molded Case Circuit Breaker
- 10A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
EHD3010
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
EHD3010
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer EHD3010 - 10A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer EHD3010 - 10A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | EHD3010 |
| Series | EHD |
| Amperage | 10A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | EHD |
|---|---|

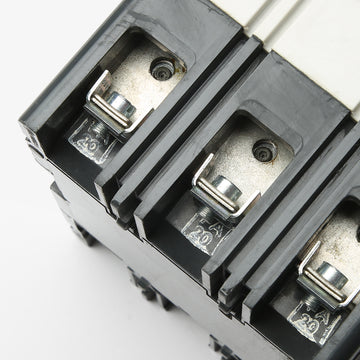

| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 14-10 AWG |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lug |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Reverse Feed |
Quantity
Eaton / Cutler-Hammer EHD3010 - 10A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | EHD |
| Amperage | 10A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | EHD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 14-10 AWG |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lug |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Reverse Feed |
Similar Items
20A 3 Pole Molded Case Circuit Breaker
25A 3 Pole Molded Case Circuit Breaker
30A 3 Pole Molded Case Circuit Breaker
Description
Designed for commercial power distribution, the Eaton EHD3010 is a 3-pole, 10A molded case circuit breaker. It provides reliable thermal-magnetic protection with fixed LI trip functions. This F-frame breaker utilizes a secure bolt-on mounting style and includes a load side lug. It installs into Eaton Series C panelboards and motor control centers, replacing FD3010 models. Rated 14kAIC at 480V, it is HID rated for lighting circuits and supports reverse feed.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | EHD3010 |
| Series | EHD |
| Amperage | 10A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | EHD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 14-10 AWG |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lug |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Reverse Feed |
Product FAQs
6 answersWhich panelboards accept the EHD3010 circuit breaker?
This breaker is designed to install into Eaton Series C panelboards, switchboards, and motor control centers.
Can the Eaton EHD3010 replace older Cutler-Hammer or Westinghouse EHD breakers?
Yes. Eaton acquired the Cutler-Hammer and Westinghouse distribution equipment lines. The Eaton EHD3010 is a direct, drop-in replacement for legacy Cutler-Hammer and Westinghouse breakers sharing the EHD3010 catalog number.
What is the difference between the EHD3010 and the FD3010 or HFD3010?
All three are Series C, F-frame breakers with identical physical dimensions and mounting. The difference is their interrupting capacity. The EHD series provides standard interrupting ratings, while the FD and HFD series offer progressively higher interrupting capacities for systems with higher available fault currents.
Is the EHD3010 suitable for reverse feed applications?
Yes. This thermal-magnetic breaker is not marked with line and load restrictions, making it suitable for reverse feed installations.
Can the EHD3010 be mounted on a standard DIN rail?
Not natively. The EHD3010 is a bolt-on breaker designed for direct bus or panel mounting. Installing it on a DIN rail requires a separate Eaton F-frame DIN rail adapter.
Does the EHD3010 provide ground fault or arc fault protection?
No. The EHD3010 is a standard thermal-magnetic breaker that provides overload and short-circuit protection. It does not include equipment ground fault protection or arc fault circuit interruption.
