Eaton / Cutler-Hammer FAZ-B63/3 Supplementary Protector
Quantity
Core Specs
See full specs

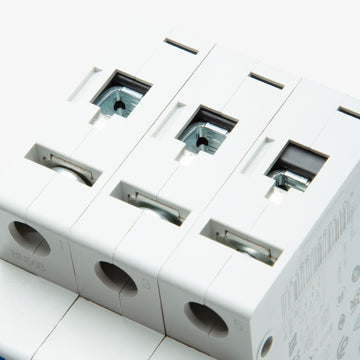

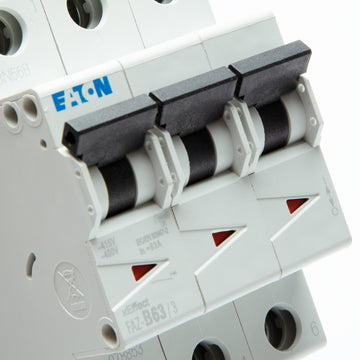

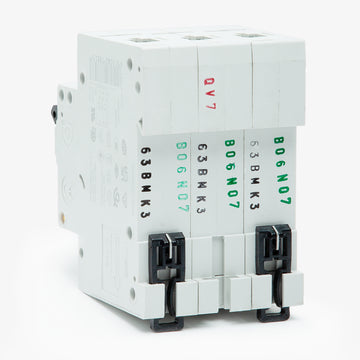

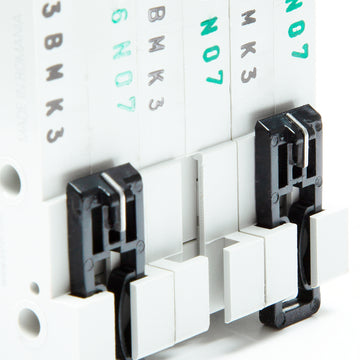

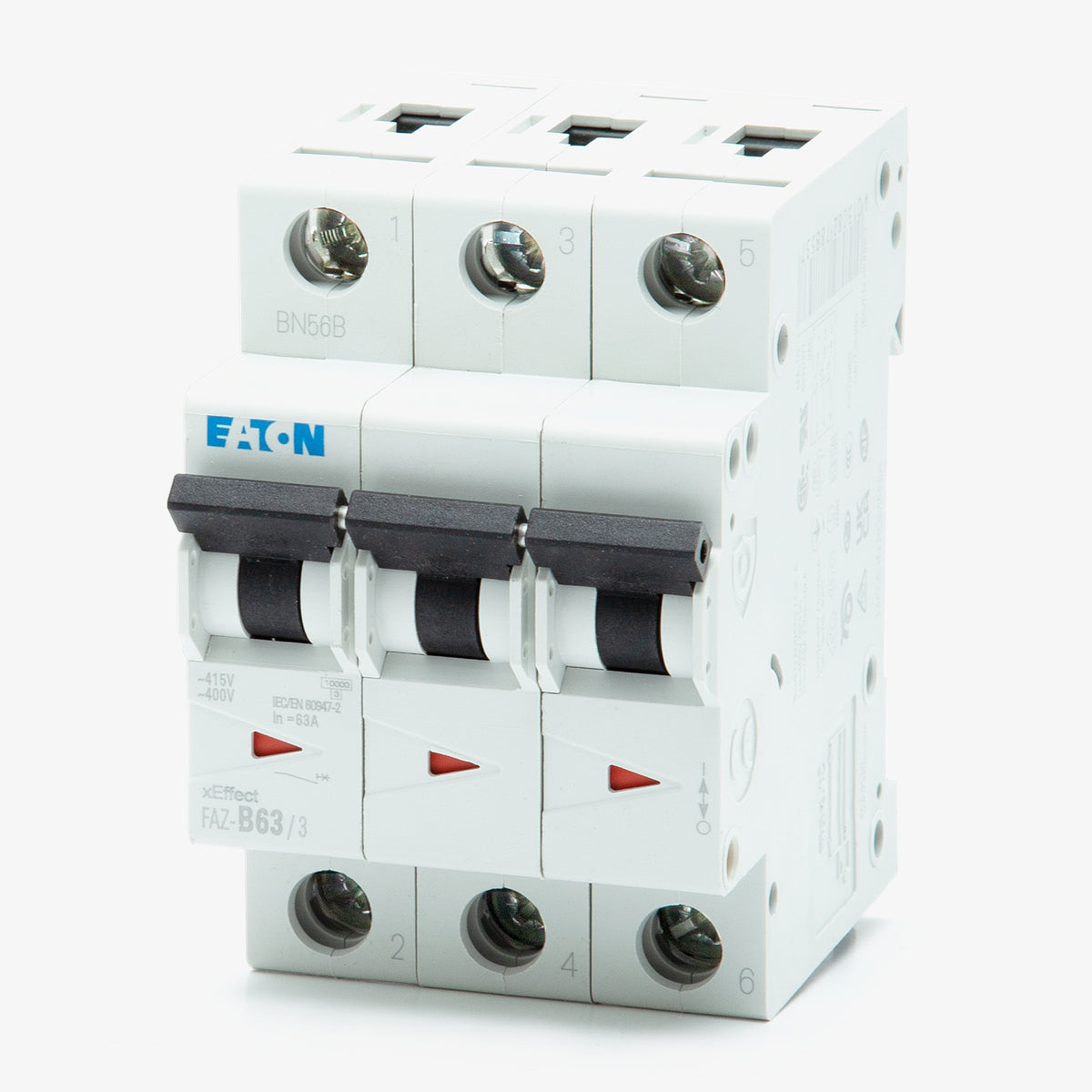

Eaton / Cutler-Hammer FAZ-B63/3 - 63A 3 Pole Supplementary Protector
New
Quantity
Description
Serving as a dedicated UL 1077 device, this 63A three-pole unit delivers supplemental overcurrent protection for specialized commercial and industrial equipment. It is designed to protect internal appliance circuits where standard UL 489 branch protection is already established upstream. Mounting onto standard DIN rail configurations, the component fits easily into high-density industrial control panels. It serves as an exact replacement for discontinued WMZS3B63 models.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | FAZ-B63/3 |
| Series | FAZ |
| Amperage | 63A |
| Poles | 3 |
| Mounting Style | DIN Rail |
| Voltage | 240VAC, 480Y/277VAC, 415VAC |
| Phase | 3 |
| AIC Rating | 15kA @ 240VAC, 5kA @ 480Y/277VAC, 15kA @ 415VAC |
| Frame Type | FAZ |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | DIN Rail Systems, Industrial Control Panels |
| Wire Gauge | 18-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 18 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Curve | B |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Shunt Trip, Undervoltage Release, Lockout Attachment, Busbar System |
|---|---|
| Accessories | Auxiliary Contact, Shunt Trip, Undervoltage Release, Lockout Attachment |
| Standards | CSA C22.2 No. 235, IEC 60947-2, UL 1077 |
| Approval | ABS, CCC, CE, CSA, DNV, GL, IEC, Lloyd's, RoHS, UL, VDE |
| Temp Rating | -40C to 75C |
| Construction Features | Current Limiting, Trip-Free Mechanism, Visual Trip Indicator, Common Trip, RoHS Compliant |
