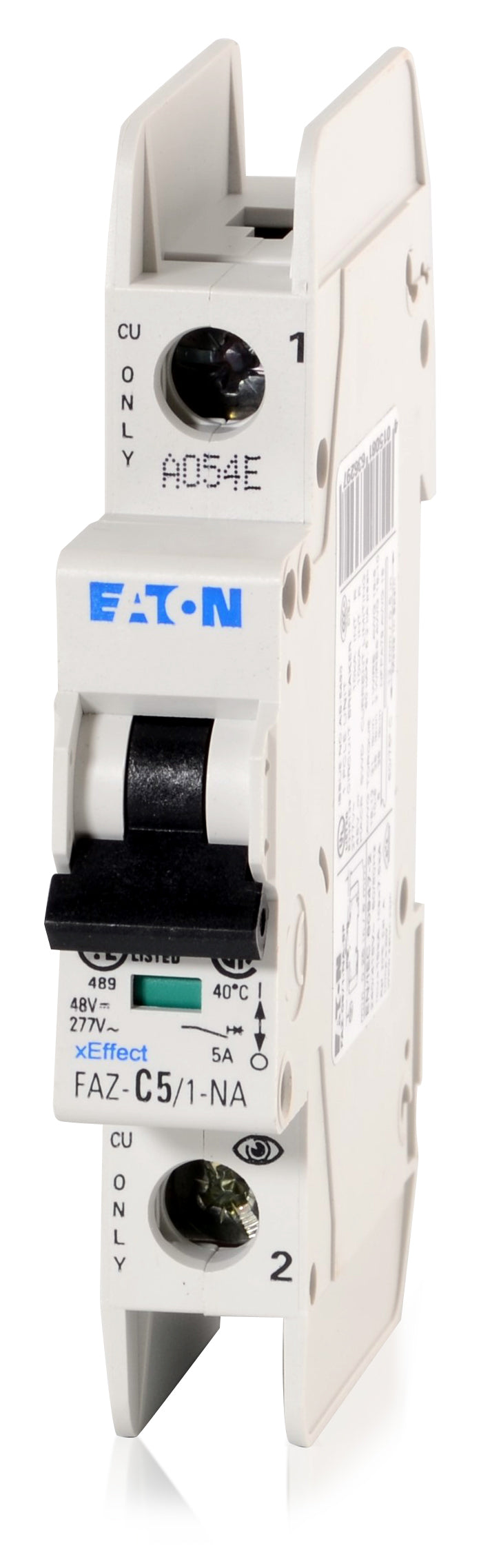

Eaton / Cutler-Hammer FAZ-C5/1-NA-SP Miniature Circuit Breaker
- 5A
- 1 Pole
- DIN Rail
Quantity
Eaton / Cutler-Hammer FAZ-C5/1-NA-SP - 5A 1 Pole Miniature Circuit Breaker
New
Quantity
Description
Tailored for precise branch circuit protection, this 5A single-pole miniature breaker features a C-curve thermal-magnetic trip mechanism. It is engineered to safeguard industrial control panels against overloads. The compact device mounts effortlessly onto standard DIN rail systems, making it highly versatile for modern enclosures. Maintenance teams can use it to replace older WMZT1C05 units or as a substitute for SU201M-C5 breakers.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | FAZ-C5/1-NA-SP |
| Series | FAZ |
| Amperage | 5A |
| Poles | 1 |
| Mounting Style | DIN Rail |
| Voltage | 277VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 277VAC, 10kA @ 48VDC |
| Frame Type | FAZ |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | DIN Rail Systems, Industrial Control Panels |
| Wire Gauge | 18-6 AWG |
| Max Wire | 6 AWG |
| Min Wire | 18 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Curve | C |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Shunt Trip, Undervoltage Release, Lockout Attachment, Busbar System |
|---|---|
| Accessories | None included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | ABS, CE, CSA, DNV, HACR, Lloyd's, RoHS, SWD, UL |
| Temp Rating | -25C to 75C |
| Construction Features | Current Limiting, HACR Rated, SWD Rated, Reverse Feed, Trip-Free Mechanism, Visual Trip Indicator |
Product FAQs
6 answersWhat applications are best suited for the C-curve trip characteristic of this breaker?
The C-curve trip response is designed to trip between 5 and 10 times the rated current. This makes it optimized for medium inrush currents, such as those found in industrial control panels, small transformers, and pilot devices, where it prevents nuisance tripping from moderate surges.
Is the FAZ-C5/1-NA-SP rated for branch circuit protection or supplementary protection?
Because it carries a UL 489 listing, indicated by the -NA suffix in the part number, this breaker is fully rated for branch circuit protection in North America. Breakers without this specific listing are typically limited to supplementary protection under UL 1077.
What does the -SP suffix stand for in the FAZ-C5/1-NA-SP part number?
The -SP suffix stands for Single Pack, meaning the circuit breaker is packaged and sold as an individual unit rather than in bulk OEM packaging.
Does the FAZ-C5/1-NA-SP include a visual trip indicator?
Yes, Eaton FAZ series breakers feature a visual status indicator with red and green colors to clearly show the contact position for maintenance and safety checks.
Can power be supplied to either end of the FAZ-C5/1-NA-SP?
Yes, this breaker features reverse feed capability. Line power can be connected to either the top or bottom terminals without affecting its protective functions or safety ratings.
What type of DIN rail is required for installation?
This miniature circuit breaker is designed to snap directly onto standard 35mm DIN rail, which is the industry standard for industrial control panels and automation enclosures.
