Eaton / Cutler-Hammer FAZ-C6/1-NA-SP Miniature Circuit Breaker
- 6A
- 1 Pole
- DIN Rail
Quantity

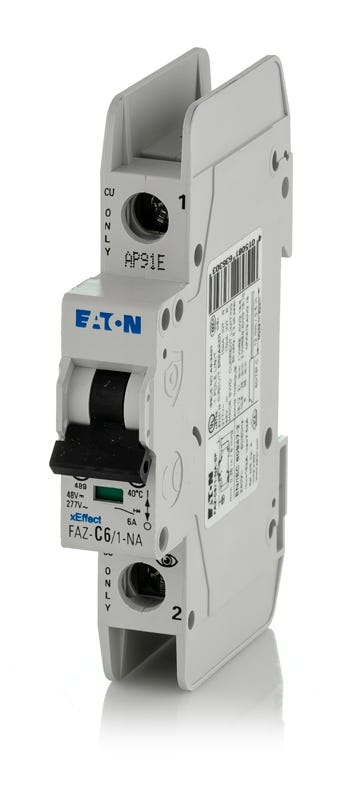

Eaton / Cutler-Hammer FAZ-C6/1-NA-SP - 6A 1 Pole Miniature Circuit Breaker
New
Quantity
Description
Supplying essential branch circuit defense, this 6-ampere single-pole protector features a trip-free mechanism to ensure safety even if the handle is held. The current-limiting architecture is fully HACR and SWD rated. Mounting into standard DIN rail systems, it provides a seamless alternative to the standard FAZ-C6/1-NA bulk-packaged units. Operating with a 10kA rating at 277VAC, the C-curve response is optimized for standard loads requiring moderate magnetic trip thresholds.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | FAZ-C6/1-NA-SP |
| Series | FAZ-NA |
| Amperage | 6A |
| Poles | 1 |
| Mounting Style | DIN Rail |
| Voltage | 277VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 277VAC, 10kA @ 48VDC |
| Frame Type | FAZ |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | DIN Rail Systems, Industrial Control Panels |
| Wire Gauge | 18-6 AWG |
| Max Wire | 6 AWG |
| Min Wire | 18 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Curve | C |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Shunt Trip, Undervoltage Release, Lockout Attachment, Busbar System |
|---|---|
| Accessories | Single Packaging |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | ABS, CCC, CE, CSA, DNV, GL, IEC, Lloyd's, RoHS, UL, VDE |
| Temp Rating | -40C to 75C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, Trip-Free Mechanism |
Product FAQs
6 answersWhat does the C-curve designation mean for this breaker?
The C-curve trip characteristic means the breaker is designed to trip magnetically between 5 and 10 times the rated current. This makes it ideal for medium inrush startup currents, such as those found in small transformers and pilot devices.
Does the FAZ-C6/1-NA-SP meet UL 489 standards for branch circuit protection?
Yes, the NA suffix indicates this breaker is UL 489 listed for branch circuit protection in North America. It can also be used in applications where UL 1077 supplementary protection is allowed.
What is the difference between the FAZ-C6/1-NA and the FAZ-C6/1-NA-SP?
The SP suffix stands for Single Pack. The FAZ-C6/1-NA-SP is packaged individually, whereas the FAZ-C6/1-NA is typically sold in bulk quantities. Both part numbers represent the exact same circuit breaker.
Can power be fed from either direction on this Eaton FAZ breaker?
Yes, power to the FAZ-C6/1-NA-SP can be fed from either the line or load side without affecting the breaker's performance or safety ratings.
Does this breaker have a trip-free mechanism?
Yes, it features a trip-free design. This means the breaker will still trip internally during an overcurrent or short-circuit event even if the handle is physically held in the ON position.
How can I visually verify the status of the FAZ-C6/1-NA-SP?
The breaker includes a color-coded indicator that provides immediate visual confirmation of the device status. It displays green when the breaker is OFF and red when it is ON.
