Eaton / Cutler-Hammer FAZ-D10/3-NA Miniature Circuit Breaker
- 10A
- 3 Pole
- DIN Rail
Eaton / Cutler-Hammer
FAZ-D10/3-NA
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
FAZ-D10/3-NA
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

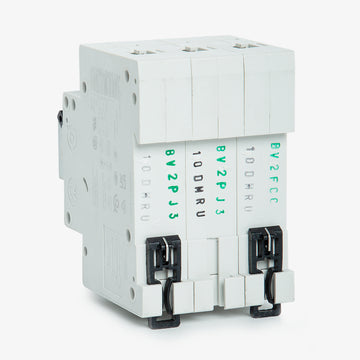

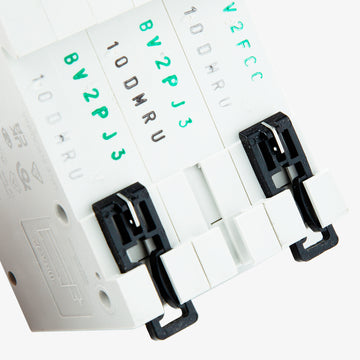

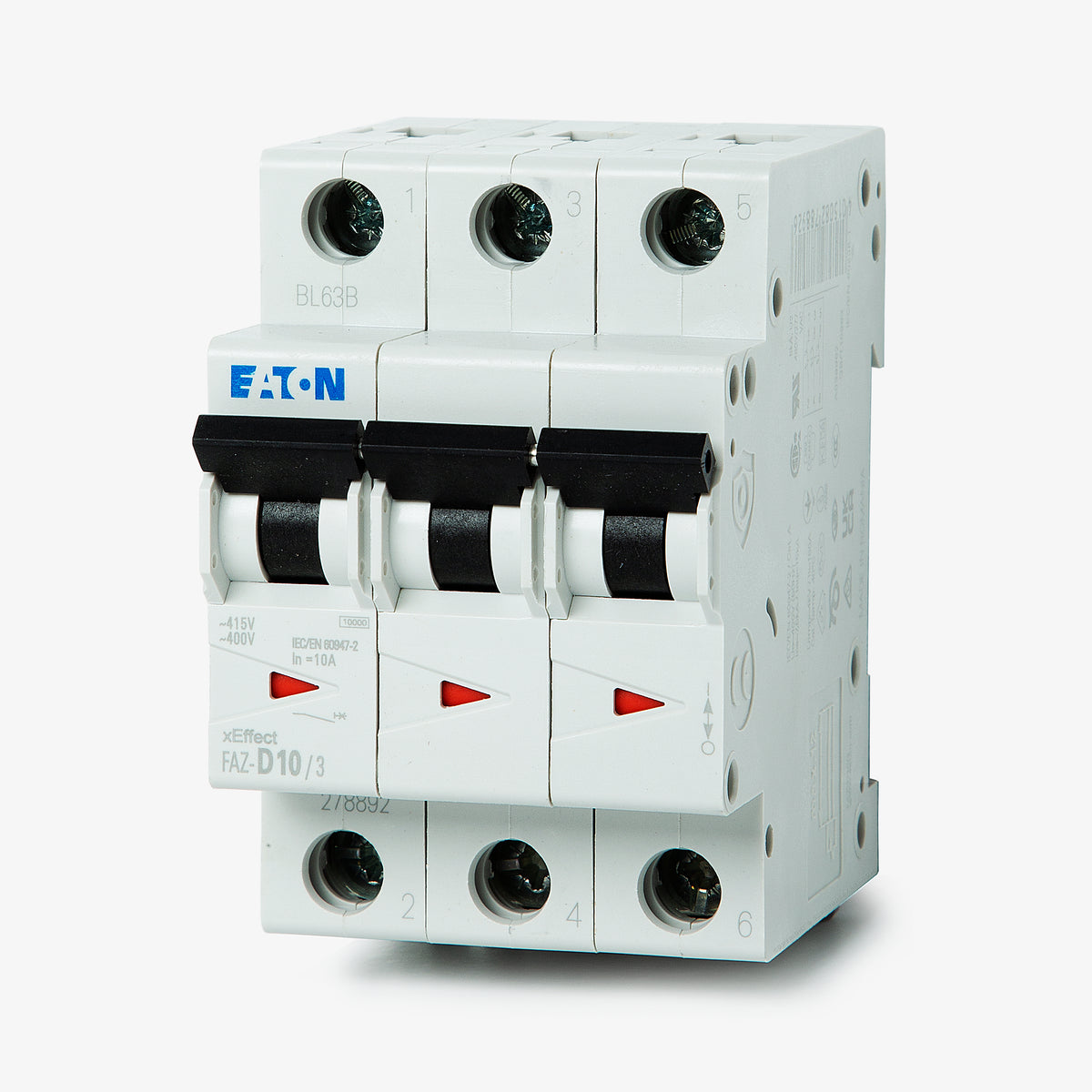

Eaton / Cutler-Hammer FAZ-D10/3-NA - 10A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerFAZ-C15/3-NA
15A 3 Pole Miniature Circuit Breaker
Eaton / Cutler-HammerFAZ-D30/3-NA
30A 3 Pole Miniature Circuit Breaker
Eaton / Cutler-HammerFAZ-D10/1-NA-SP
10A 1 Pole Miniature Circuit Breaker
Description
Built for demanding commercial and industrial environments, this three-pole 10A component delivers robust D-curve protection for high-inrush loads. It mounts onto standard DIN rail panels and serves as an exact replacement for the discontinued WMZT3D10 model. Rated for 10kA at 480Y/277VAC, the unit is fully UL 489 listed for branch circuits. Additional benefits include reverse feed capabilities, a trip-free mechanism, and HACR certification for HVAC equipment.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | FAZ-D10/3-NA |
| Series | FAZ-NA |
| Amperage | 10A |
| Poles | 3 |
| Mounting Style | DIN Rail |
| Voltage | 480Y/277VAC, 96VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 480Y/277VAC, 10kA @ 96VDC |
| Frame Type | FAZ |
|---|---|

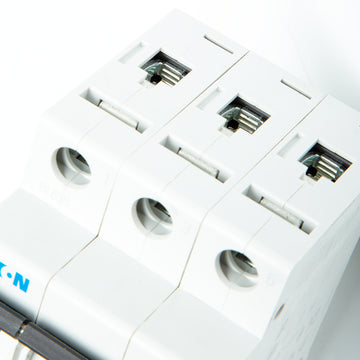

| Terminal Type | Box Lugs |
| For Use With | DIN Rail Panels, Industrial Control Panels |
| Wire Gauge | 18-6 AWG |
| Max Wire | 6 AWG |
| Min Wire | 18 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Curve | D |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Busbar System, Padlock Attachment, Shunt Trip, Undervoltage Release |
|---|---|
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | ABS, CCC, CE, CSA, DNV, GL, IEC, Lloyd's, RoHS, UL, VDE |
| Temp Rating | -40C to 75C |
| Construction Features | Current Limiting, HACR Rated, Reverse Feed, Trip-Free Mechanism |
Product FAQs
8 answersWhat is the trip curve for the FAZ-D10/3-NA breaker?
This breaker features a D-curve tripping characteristic. The magnetic trip point is 10 to 20 times the rated current, making it ideal for high-inrush applications like motors, transformers, and power supplies.
Can the FAZ-D10/3-NA be reverse fed?
Yes, this circuit breaker has reverse feed capabilities. Power can be fed from either the line or the load side terminals.
Can I use the FAZ-D10/3-NA in place of a UL 1077 supplementary protector?
Yes. Because the FAZ-D10/3-NA is a UL 489 listed branch circuit breaker, it can be used in applications that only require UL 1077 supplementary protection. However, a UL 1077 device cannot replace a UL 489 breaker.
Is the Eaton FAZ-D10/3-NA a current-limiting breaker?
Yes, it features a current-limiting design that interrupts fault currents within one-half cycle. This reduces the peak let-through energy to help prevent damage to downstream components.
Does this breaker have a trip-free mechanism?
Yes, the FAZ-D10/3-NA features a trip-free design. The breaker will still trip during an overcurrent or short-circuit fault even if the handle is physically held in the ON position.
How can I verify the contact status of the FAZ-D10/3-NA?
The breaker includes a color-coded indicator on the front face that provides immediate visual confirmation of the device status, showing green for OFF and red for ON.
What older Eaton or Cutler-Hammer model does the FAZ-D10/3-NA replace?
The FAZ-D10/3-NA serves as a direct replacement for the discontinued WMZT3D10 miniature circuit breaker.
Can the FAZ-D10/3-NA be used in DC circuits?
Yes, this breaker is dual-rated for both AC and DC applications. It is rated for up to 96VDC with a 10kA interrupting capacity, making it suitable for industrial control panels requiring DC branch protection.
