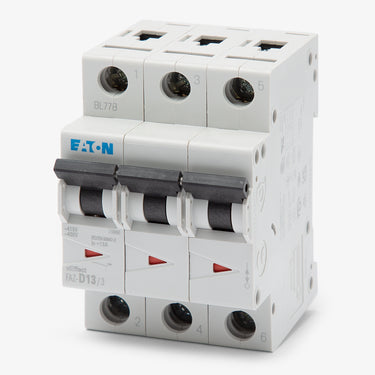

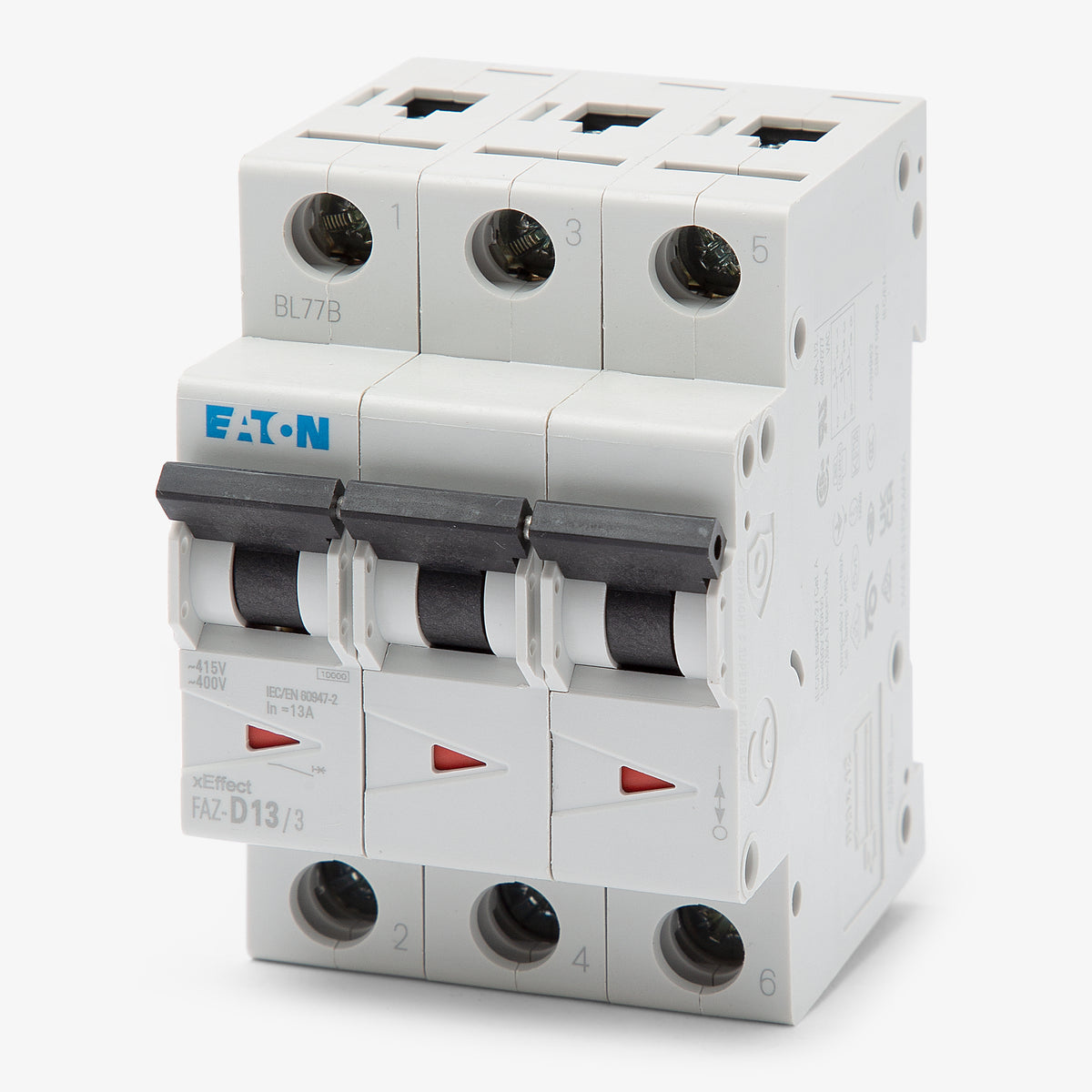

Eaton / Cutler-Hammer FAZ-D13/3 - 13A 3 Pole Supplementary Protector
New
Quantity
Description
Engineered for highly inductive loads, the Eaton FAZ-D13/3 functions as a 3-pole supplementary protector for industrial motor control applications. It provides essential current-limiting capabilities for circuits experiencing significant startup surges. Designed for seamless integration, it mounts onto standard DIN rails within OEM control panels as a UL 1077 recognized device. The 13A D-curve trip accommodates 10-20x inrush currents, making it perfect for transformers and heavy motors.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | FAZ-D13/3 |
| Series | FAZ |
| Amperage | 13A |
| Poles | 3 |

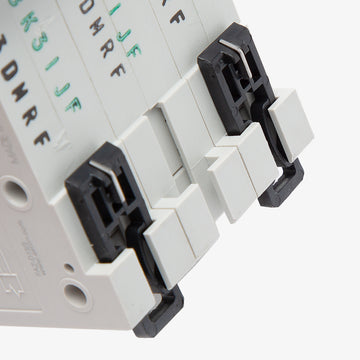

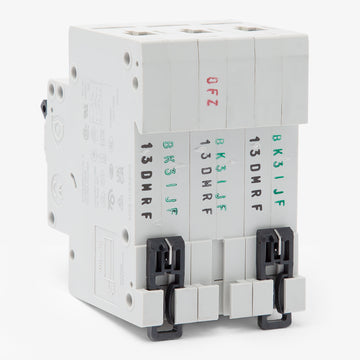

| Mounting Style | DIN Rail |
| Voltage | 240VAC, 480Y/277VAC, 415VAC, 96VDC |
| Phase | 3 |
| AIC Rating | 15kA @ 240VAC, 10kA @ 480Y/277VAC, 15kA @ 415VAC, 10kA @ 96VDC |
| Frame Type | FAZ |
|---|---|

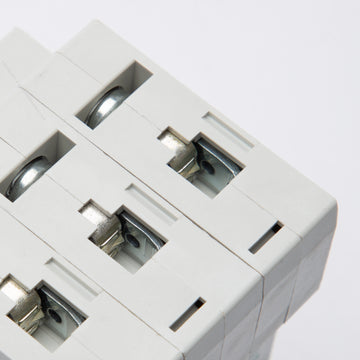

| Terminal Type | Box Lugs |
| For Use With | DIN Rail Systems, Industrial Control Panels |
| Wire Gauge | 18-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 18 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Curve | D |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Shunt Trip, Undervoltage Release, Busbar System, Lockout Attachment, Alarm Switch |
|---|---|
| Standards | CSA C22.2 No. 235, IEC 60947-2, UL 1077 |
| Approval | ABS, CE, CSA, DNV, GL, IEC, Lloyd's, UL, VDE |
| Temp Rating | -40C to 75C |
| Construction Features | Current Limiting, Trip-Free Mechanism, Visual Trip Indicator |
