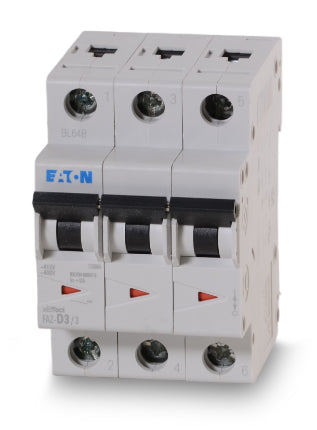

Eaton / Cutler-Hammer FAZ-D3/3 - 3A 3 Pole Supplementary Protector
New
Quantity
Description
Designed for industrial motor control and marine applications, this 3-pole supplementary protector handles highly inductive loads with its D-curve trip characteristic. It delivers reliable equipment-level defense where branch circuit protection is already provided or not required. Mounts onto standard 35mm DIN rail systems and integrates seamlessly into industrial control panels. It features finger-safe box lug terminals accepting 18-4 AWG wire.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | FAZ-D3/3 |
| Series | FAZ |
| Amperage | 3A |
| Poles | 3 |
| Mounting Style | DIN Rail |
| Voltage | 480Y/277VAC, 96VDC |
| Phase | 3 |
| AIC Rating | 5kA @ 480Y/277VAC, 10kA @ 96VDC |
| Frame Type | FAZ |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | DIN Rail Systems, Industrial Control Panels |
| Wire Gauge | 18-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 18 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Curve | D |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Shunt Trip, Undervoltage Release, Busbar System, Lockout Attachment, Alarm Switch |
|---|---|
| Accessories | Auxiliary Switch, Busbar, Lockout Attachment, Shunt Trip, Undervoltage Release |
| Standards | CSA C22.2 No. 235, EN 45545-2, IEC 60898, IEC 60947-2, UL 1077 |
| Approval | ABS, CCC, CE, CSA, DNV, GL, IEC, Lloyd's, RoHS, UL, UR, VDE |
| Temp Rating | -40C to 75C |
| Construction Features | Current Limiting, Trip-Free Mechanism, Visual Trip Indicator |
