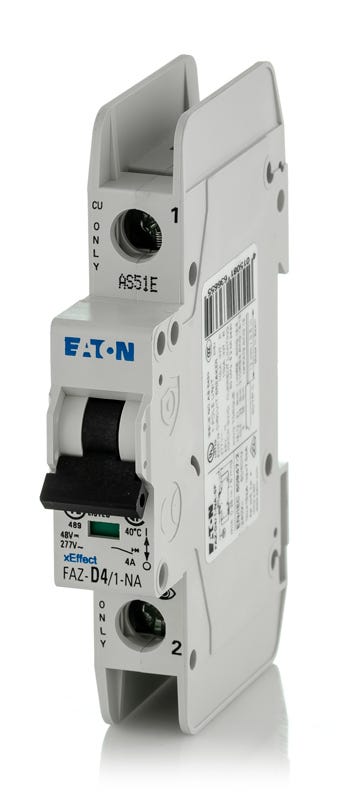

Eaton / Cutler-Hammer FAZ-D4/1-NA-SP Miniature Circuit Breaker
- 4A
- 1 Pole
- DIN Rail
Quantity
Eaton / Cutler-Hammer FAZ-D4/1-NA-SP - 4A 1 Pole Miniature Circuit Breaker
New
Quantity
Description
Providing reliable branch circuit protection, the Eaton FAZ-D4/1-NA-SP is a single-pole breaker built for industrial applications. It handles high inrush currents found in motor control environments. This unit installs into standard DIN rail systems and industrial control panels. It serves as a replacement for the discontinued WMZT1D04. Rated 10 kAIC at 277VAC, it utilizes a D-curve thermal-magnetic trip profile. Features include a trip-free mechanism and visual status indicator.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | FAZ-D4/1-NA-SP |
| Series | FAZ-NA |
| Amperage | 4A |
| Poles | 1 |
| Mounting Style | DIN Rail |
| Voltage | 277VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 277VAC, 10kA @ 48VDC |
| Frame Type | FAZ |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | DIN Rail Systems, Industrial Control Panels |
| Wire Gauge | 18-6 AWG |
| Max Wire | 6 AWG |
| Min Wire | 18 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Curve | D |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Shunt Trip, Undervoltage Release, Lockout Attachment, Busbar System |
|---|---|
| Accessories | Single Package |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | ABS, CCC, CE, CSA, DNV, HACR, IEC, Lloyd's, RoHS, SWD, UL, VDE |
| Temp Rating | -25C to 75C |
| Construction Features | Current Limiting, HACR Rated, Reverse Feed, SWD Rated, Trip-Free Mechanism, Visual Trip Indicator |
Product FAQs
6 answersWhat type of trip curve does the FAZ-D4/1-NA-SP feature?
This miniature circuit breaker utilizes a D-curve thermal-magnetic trip profile. It is designed to handle high inrush currents, typically 10 to 20 times the rated current, making it ideal for motors, transformers, and highly inductive loads.
Can the FAZ-D4/1-NA-SP replace older Cutler-Hammer models?
Yes, this unit serves as a direct replacement for the discontinued Eaton and Cutler-Hammer WMZT1D04 miniature circuit breaker.
Is the Eaton FAZ-D4/1-NA-SP rated for branch circuit protection?
Yes, this breaker is UL 489 listed. This certification means it is approved for primary branch circuit protection in industrial control panels, unlike UL 1077 devices which are only rated for supplementary protection.
Does this breaker feature a trip-free safety mechanism?
Yes, it includes a trip-free design. This ensures the breaker will still trip and interrupt the circuit during an overcurrent or short-circuit event, even if the toggle handle is physically held in the ON position.
What type of mounting rail is required for installation?
This breaker snaps directly onto standard 35mm DIN rail systems, which are commonly used in industrial control panels and automation enclosures.
Does the FAZ-D4/1-NA-SP have a contact position indicator?
Yes, it features a visual red and green status indicator on the front of the device, allowing operators to quickly verify if the internal contacts are open or closed.
