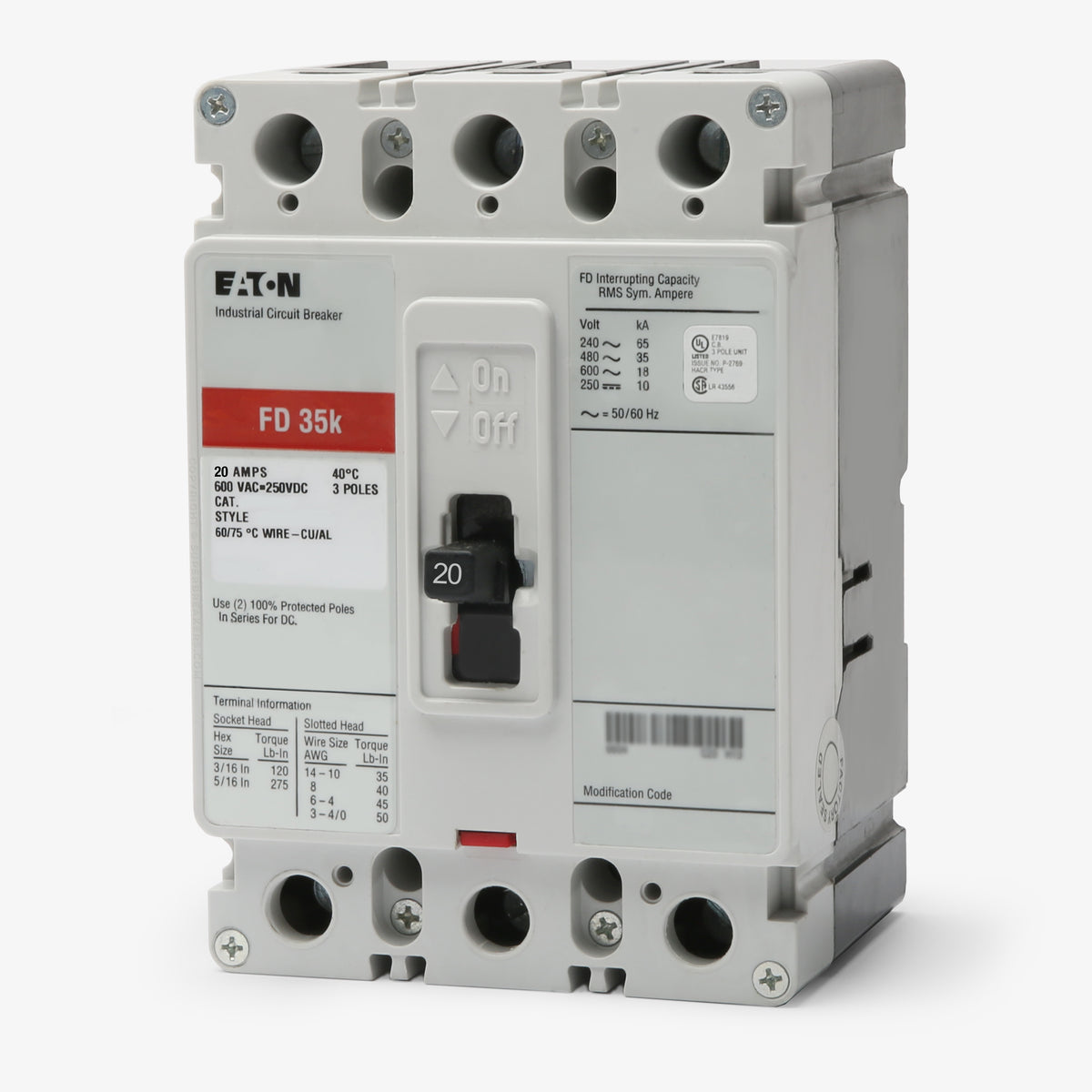

Eaton / Cutler-Hammer FD3020L Molded Case Circuit Breaker
- 20A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
FD3020L
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
FD3020L
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer FD3020L - 20A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Eaton / Cutler-Hammer FD3020L - 20A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | FD3020L |
| Series | FD |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | FD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, FDPW Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, HID Rated, Non-Interchangeable Trip |
Quantity
Eaton / Cutler-Hammer FD3020L - 20A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | FD |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | FD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, FDPW Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, HID Rated, Non-Interchangeable Trip |
Similar Items
30A 3 Pole Molded Case Circuit Breaker
3 Pole Circuit Breaker
3 Pole Circuit Breaker
Description
Engineered for demanding commercial applications, the Eaton FD3020L is a 3-pole, 20A Series C molded case circuit breaker. It provides robust long-time and instantaneous protection for 600VAC systems. This unit mount breaker installs into Eaton FDPW panels and motor control centers, serving as a replacement for legacy Cutler-Hammer units. Rated 35 kAIC at 480VAC, it features a fixed thermal-magnetic trip. The breaker is HACR rated and reverse feed capable for versatile installation.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | FD |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | FD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, FDPW Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, HID Rated, Non-Interchangeable Trip |
Product FAQs
6 answersWhat does the L suffix in the FD3020L catalog number indicate?
The L indicates that the breaker comes factory-equipped with both line and load terminals. These standard lugs accept 14 to 1/0 AWG copper or aluminum wire.
Which panelboards and equipment are compatible with the FD3020L?
This Series C F-frame breaker is designed for use in Eaton and Cutler-Hammer FDPW panelboards, switchboards, and motor control centers. It mounts directly to the chassis as a unit-mount device.
Can the FD3020L be used in direct current (DC) applications?
Yes, this thermal-magnetic breaker is rated for up to 250VDC with a 10kA interrupting capacity. When applying it in DC circuits, ensure proper wiring configurations as specified by Eaton guidelines for multi-pole DC switching.
What is the difference between the FD3020L and the FDC3020?
The primary difference is the interrupting capacity. The FD3020L has a standard interrupting rating of 35kA at 480VAC, while the FDC3020 is an ultra-high interrupting version rated at 100kA at 480VAC. Both share the same physical F-frame dimensions.
Are the thermal and magnetic trip settings adjustable on this breaker?
No, the FD3020L features a fixed thermal and fixed magnetic trip unit. If you require adjustable trip settings in a 20A F-frame, you will need an electronic trip unit breaker such as the FDE or HFDE series.
Does this breaker provide ground fault or equipment protection?
No, the FD3020L provides standard long-time and instantaneous (LI) overcurrent and short-circuit protection. It does not include integral ground fault (LSIG) or earth leakage protection.
