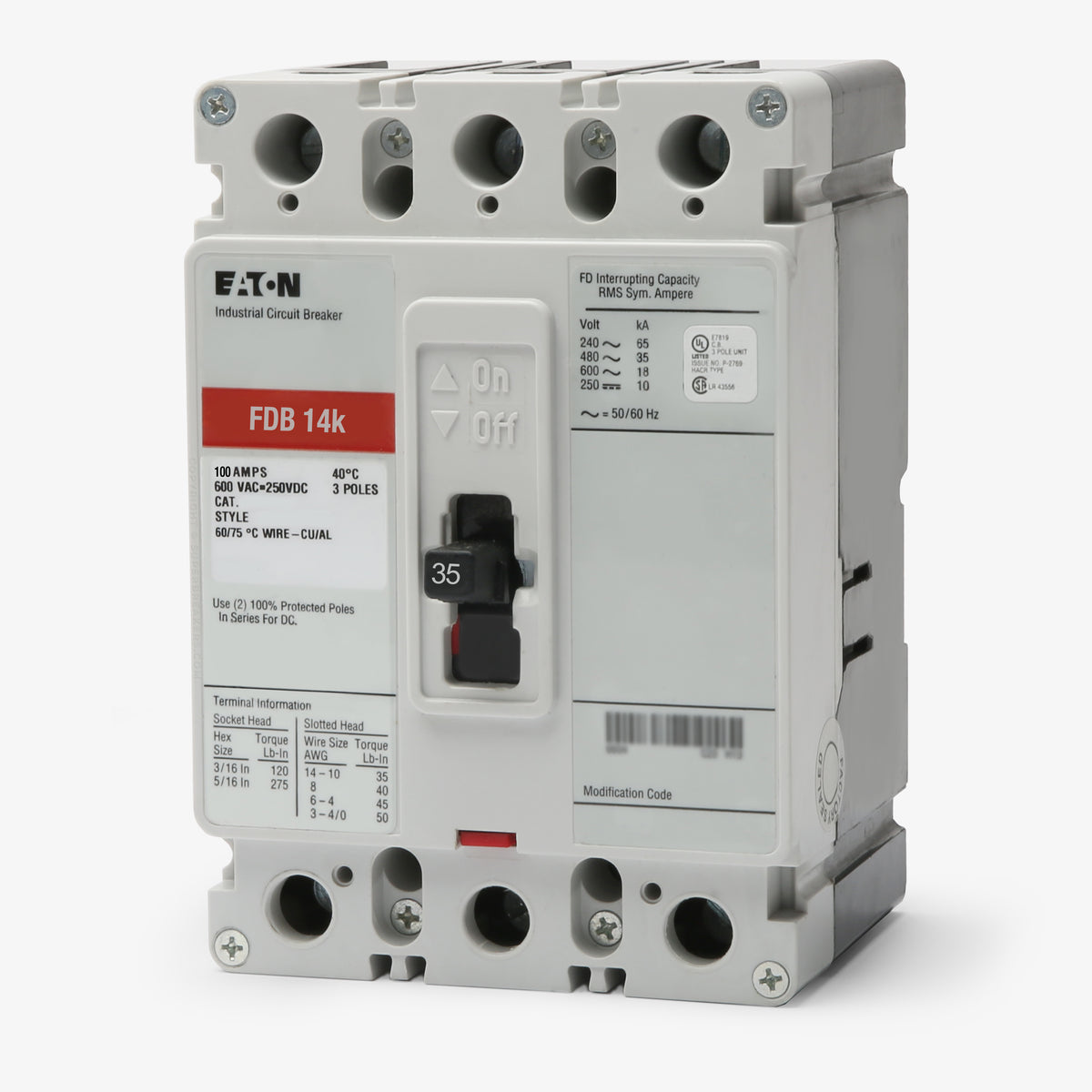

Eaton / Cutler-Hammer FDB3035 Molded Case Circuit Breaker
- 35A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
FDB3035
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
FDB3035
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer FDB3035 - 35A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer FDB3035 - 35A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | FDB3035 |
| Series | FDB |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | FD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed |
Sold out
Quantity
Eaton / Cutler-Hammer FDB3035 - 35A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | FDB |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | FD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed |
Similar Items
30A 3 Pole Molded Case Circuit Breaker
45A 3 Pole Molded Case Circuit Breaker
25A 3 Pole Molded Case Circuit Breaker
Description
Operating within the proven Series C architecture, this 35-amp molded case breaker supplies fundamental long-time and instantaneous fault protection. The unit-mount configuration fastens securely into compatible Eaton enclosures and industrial control panels. When lifecycle upgrades are required, this component is superseded by the Power Defense PDG23F0035TFFJ. Capable of interrupting 14kA at 480V, the breaker carries HID and HACR certifications, making it highly suitable for specialized loads.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | FDB3035 |
| Series | FDB |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | FD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed |
Product FAQs
6 answersCan the Eaton FDB3035 replace older Westinghouse or Cutler-Hammer models?
Yes. Eaton acquired the Westinghouse and Cutler-Hammer molded case circuit breaker lines. The Eaton FDB3035 is an exact physical and electrical replacement for legacy Westinghouse and Cutler-Hammer FDB3035 breakers.
What types of panels are compatible with the FDB3035?
This breaker is designed specifically for Eaton Series C panelboards, switchboards, and motor control centers. It is a bolt-on molded case breaker and is not compatible with standard residential plug-on load centers.
Can the FDB3035 be mounted on a DIN rail?
No. The FDB3035 is a unit-mount, bolt-on molded case circuit breaker. It requires a dedicated mounting base or panelboard chassis and cannot be installed on a standard DIN rail.
Does the FDB3035 provide ground fault or arc fault protection?
No. This is a standard thermal-magnetic circuit breaker equipped with long-time and instantaneous trip functions. It does not include GFCI or AFCI safety circuitry.
Are the trip settings on the FDB3035 adjustable?
No. The FDB3035 features a fixed thermal and fixed magnetic trip unit. Neither the overload nor the short-circuit trip thresholds can be adjusted in the field.
Where can I find the terminal torque specifications for the FDB3035?
Torque requirements vary based on the specific wire gauge and lug type installed. The exact torque specifications are printed directly on the circuit breaker nameplate to ensure a secure and compliant installation.
