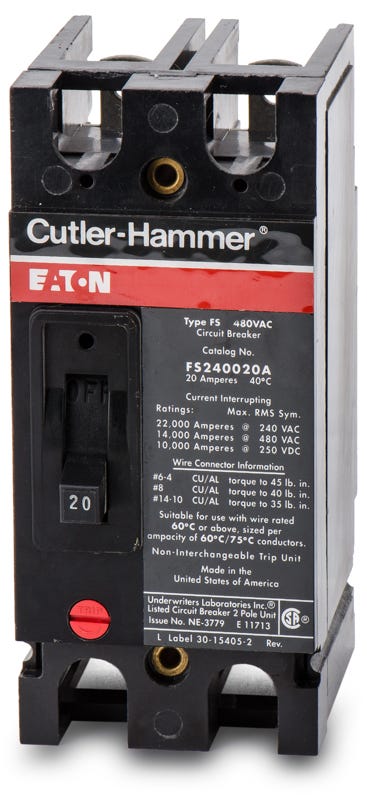

Eaton / Cutler-Hammer FS240020A Molded Case Circuit Breaker
- 20A
- 2 Pole
- Bolt-On
Eaton / Cutler-Hammer
FS240020A
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
FS240020A
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer FS240020A - 20A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Eaton / Cutler-Hammer FS240020A - 20A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | FS240020A |
| Series | FS |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers, Enclosures |
| Wire Gauge | 14-10 AWG |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Factory Sealed |
Quantity
Eaton / Cutler-Hammer FS240020A - 20A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | FS240020A |
| Series | FS |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers, Enclosures |
| Wire Gauge | 14-10 AWG |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Factory Sealed |
Similar Items
20A 2 Pole Molded Case Circuit Breaker
20A 2 Pole Molded Case Circuit Breaker
20A 2 Pole Molded Case Circuit Breaker
Description
Built for demanding environments, the Eaton FS240020A is a 2-pole, 20A molded case circuit breaker featuring fixed thermal and magnetic trip settings. It delivers reliable long-time and instantaneous (LI) protection for commercial and industrial power distribution. The F-Frame breaker bolts securely into Series C panelboards, switchboards, and enclosures. Offering a 14 kAIC rating at 480VAC, it successfully replaces older EHD2020 and FDB2020 models.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | FS240020A |
| Series | FS |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers, Enclosures |
| Wire Gauge | 14-10 AWG |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Factory Sealed |
Product FAQs
8 answersCan the FS240020A replace older EHD or FDB breakers?
Yes, the FS240020A is an F-Frame breaker that can successfully replace older EHD2020 and FDB2020 models in Series C panelboards and enclosures.
What wire sizes and materials are compatible with the FS240020A?
The standard lugs on this breaker accept 14 to 10 AWG copper or aluminum conductors.
Is the FS240020A rated for DC applications?
Yes, this breaker is rated for use in direct current systems up to 250 VDC with an interrupting capacity of 10 kA.
What equipment is compatible with the FS240020A?
This F-Frame breaker is designed to bolt into Eaton Series C panelboards, switchboards, motor control centers, and compatible enclosures.
Are the trip settings adjustable on the FS240020A?
No, this breaker features a non-interchangeable thermal-magnetic trip unit with fixed long-time and instantaneous (LI) settings.
Does the FS240020A come with lugs?
Yes, this breaker includes both line and load lugs for installation.
Is the FS240020A suitable for HVAC applications?
Yes, this breaker is HACR rated, making it suitable for heating, air conditioning, and refrigeration equipment.
Can the FS240020A be reverse fed?
Yes, Eaton Series C F-Frame breakers are suitable for reverse feed applications.
