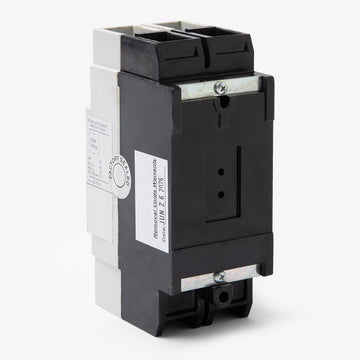

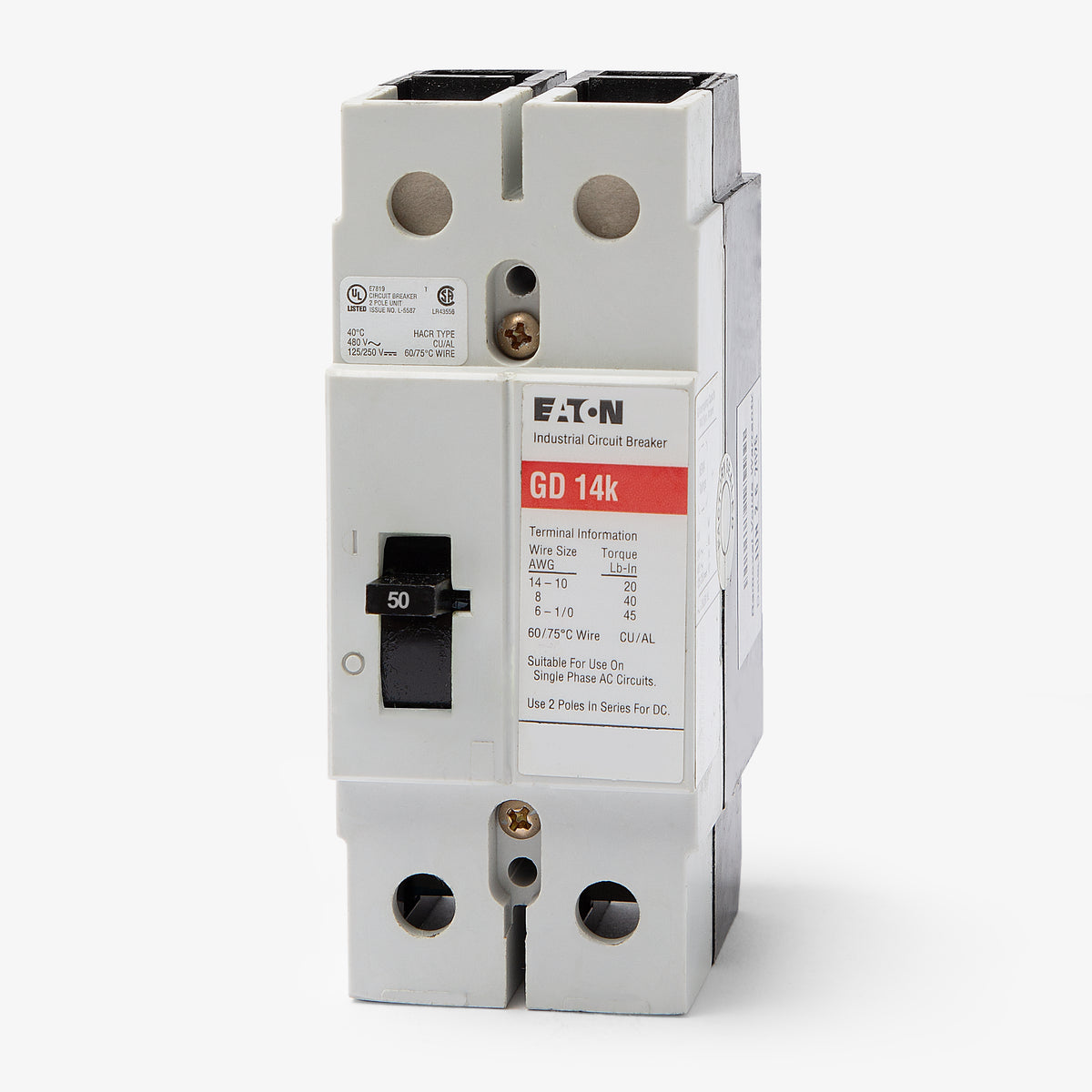

Eaton / Cutler-Hammer GD2050 Molded Case Circuit Breaker
- 50A
- 2 Pole
- Unit Mount
Eaton / Cutler-Hammer
GD2050
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
GD2050
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer GD2050 - 50A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
40A 2 Pole Molded Case Circuit Breaker
35A 2 Pole Molded Case Circuit Breaker
30A 2 Pole Molded Case Circuit Breaker
Description
Built for heavy-duty power distribution, this 50A, 2-pole MCCB serves as a core component of the Eaton Series C lineup. It delivers fixed thermal and magnetic (LI) trip functions to defend commercial circuits against overloads. Designed with a unit mount configuration, the G-Frame breaker integrates seamlessly into Eaton Series C panelboards and switchboards. With an interrupt capacity of 65 kAIC at 240 VAC, it offers robust current-limiting performance and is fully HACR rated.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GD2050 |
| Series | GD |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480VAC, 10kA @ 125/250VDC |
| Frame Type | GD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Motor Control Centers, Switchboards, Enclosures |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, DIN Rail Adapter, Motor Operator |
|---|---|
| Accessories | Line and Load Terminals |
| Standards | HACR, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed |
Product FAQs
6 answersWhat types of enclosures and panels are compatible with the GD2050?
The GD2050 is a Series C, G-Frame molded case circuit breaker. It is designed for use in Eaton and Cutler-Hammer Series C panelboards, switchboards, motor control centers, and industrial enclosures that accept G-Frame unit-mount breakers.
Can the GD2050 be mounted on a DIN rail?
While the GD2050 is natively a unit-mount, bolt-on breaker, it can be adapted for standard 35mm DIN rail mounting using an Eaton DIN rail adapter kit. Otherwise, it mounts directly to a base plate or chassis rail in compatible panelboards.
Is the Eaton GD2050 suitable for direct current (DC) applications?
Yes, in addition to its AC ratings, the GD2050 is rated for 125/250VDC systems with an interrupting capacity of 10 kAIC. This makes it suitable for specific industrial DC control panels and battery systems requiring thermal-magnetic protection.
Does the GD2050 replace older Cutler-Hammer or Westinghouse breakers?
Yes, the Eaton GD2050 is a direct replacement for legacy Cutler-Hammer and Westinghouse Series C G-Frame breakers with the same 50A, 2-pole configuration.
Is the GD2050 HACR rated for HVAC applications?
Yes, the GD2050 is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment that requires a 50A, 2-pole breaker for overcurrent protection.

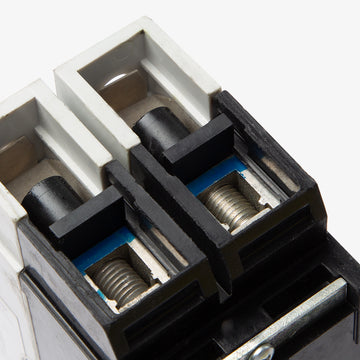

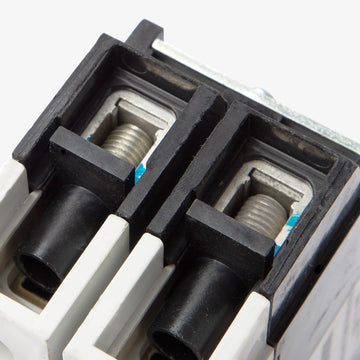

Does the GD2050 come with line and load terminals installed?
Yes, the GD2050 features a feed-thru connection type and includes factory-installed line and load lugs. These standard lugs accept 14 AWG to 1/0 AWG copper or aluminum wire. Installers should reference the breaker nameplate for precise torque values during termination.
