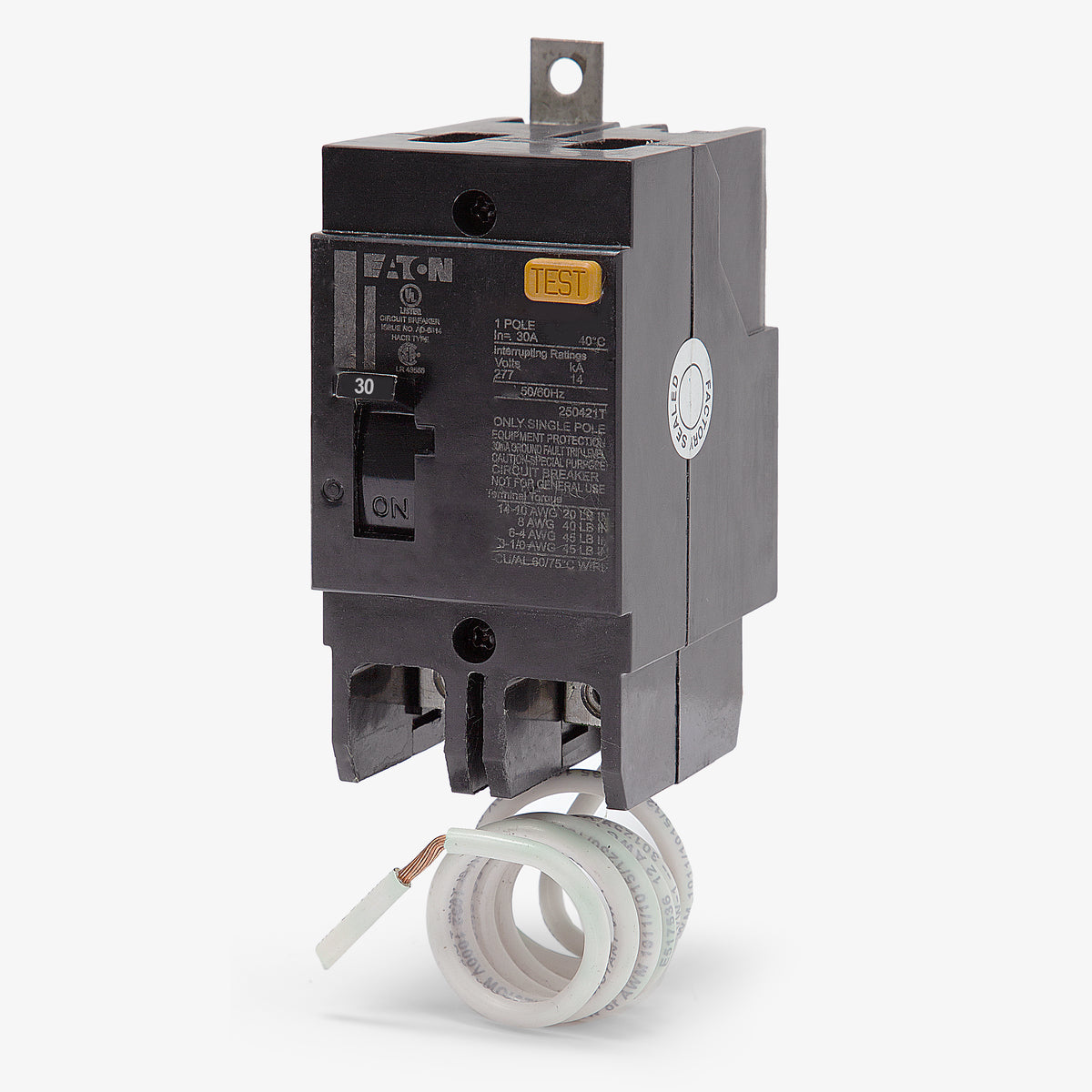

Eaton / Cutler-Hammer GHBGFEP1030 GFEP Molded Case Circuit Breaker
- 30A
- 1 Pole
- Bolt-On
Quantity
Eaton / Cutler-Hammer GHBGFEP1030 - 30A GFEP Molded Case Circuit Breaker
New
Quantity
Description
Engineered for commercial and industrial applications, this 30A device provides robust equipment-level ground fault protection. The 30mA trip threshold prevents severe damage to machinery without nuisance tripping associated with 5mA personnel devices. It bolts securely into Eaton Series C and Pow-R-Line panelboards or switchboards. The G-frame footprint ensures compatibility with standard 277VAC distribution systems. Rated at 14kAIC, the thermal-magnetic mechanism includes a trip window.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | GHB |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 277VAC |
| Phase | 1 |
| AIC Rating | 14kA @ 277VAC |
| Frame Type | GHB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Pow-R-Line Panelboards, Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFEP |
|---|---|
| Available Options | Padlock Attachment, Alarm Switch |
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, UL 1053, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Current Limiting |
Product FAQs
7 answersWhat is the ground fault trip threshold for the GHBGFEP1030?
This breaker features a 30mA ground fault trip threshold. It is designed for Ground Fault Equipment Protection (GFEP) to prevent equipment damage from low-level faults, rather than the 5mA threshold used for Class A personnel protection (GFCI).
Which Eaton panelboards are compatible with the GHBGFEP1030 circuit breaker?
This G-frame breaker is designed for use in Eaton Series C panelboards, as well as Pow-R-Line 1, 2, and 3 series panelboards, including PRL1a, PRL2a, PRL3a, PRL1X, PRL2X, and PRL3X models.
How is the neutral connection handled on the GHBGFEP1030?
This breaker includes a factory-installed pigtail neutral wire. This wire must be connected directly to the panelboard neutral bus to power the ground fault sensing circuitry and ensure proper operation.
Is the GHBGFEP1030 considered a Cutler-Hammer or Eaton breaker?
Eaton acquired Cutler-Hammer, and this breaker may be labeled under either brand name. The GHBGFEP1030 catalog number remains the exact same and is fully interchangeable regardless of whether the label says Eaton or Cutler-Hammer.
How do I test the ground fault functionality of the GHBGFEP1030 after installation?

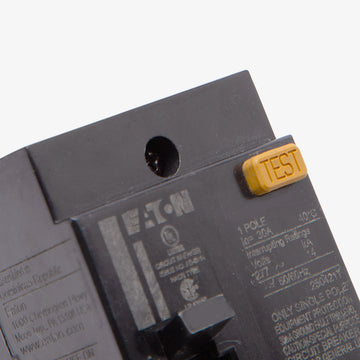

You can verify the ground fault circuitry using the built-in push-to-test button on the front of the breaker. Pressing this button simulates a fault and should immediately trip the breaker. A trip window will also indicate red when the breaker has tripped due to a ground fault.
Can the GHBGFEP1030 be used on a 480V delta system?
No. This 1-pole breaker is rated for 480Y/277VAC solidly grounded wye systems. It is designed to connect to one 277V phase and the neutral, and cannot be used on ungrounded or corner-grounded 480V delta systems.
What does the LIG trip function code mean on the GHBGFEP1030?
The LIG designation indicates that the thermal-magnetic trip unit provides Long-Time protection for thermal overloads, Instantaneous protection for magnetic short circuits, and integrated Ground Fault protection for equipment safety.
