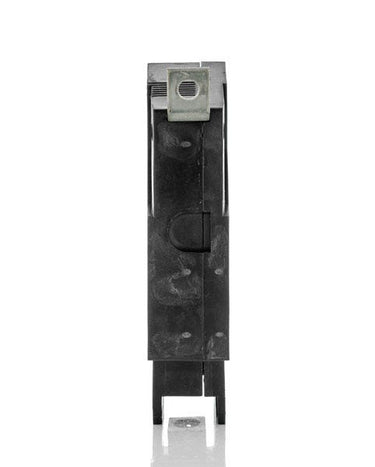

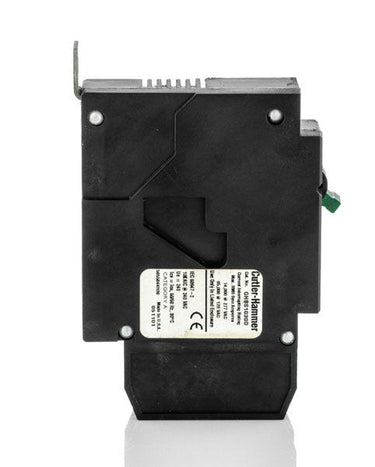

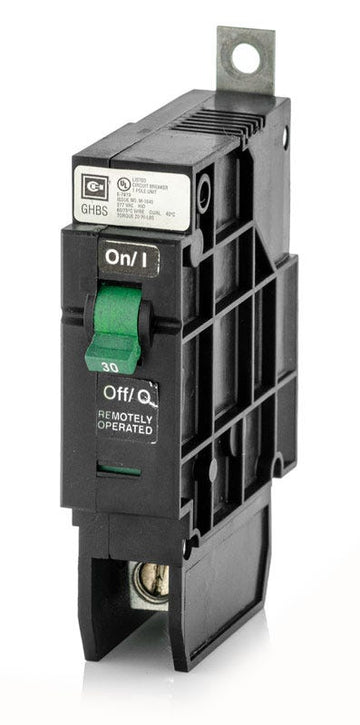

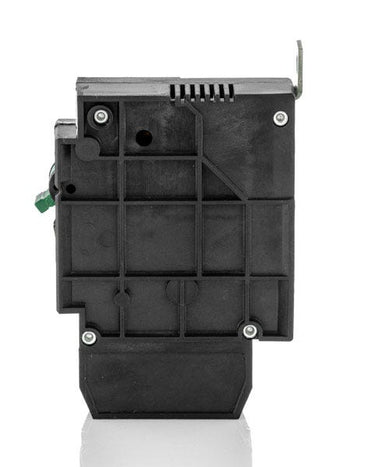

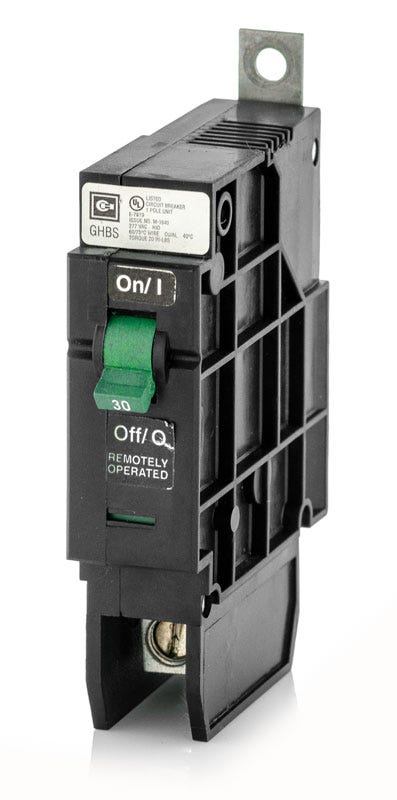

Eaton / Cutler-Hammer GHBS1030D Miniature Circuit Breaker
- 30A
- 1 Pole
- Bolt-On
Quantity
Eaton / Cutler-Hammer GHBS1030D - 30A 1 Pole Miniature Circuit Breaker
Re-Certified
Quantity
Quantity
Eaton / Cutler-Hammer GHBS1030D - 30A 1 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | GHBS |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 277VAC, 14kA @ 125VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Pow-R-Command Panelboards |
| Wire Gauge | 10-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included, Solenoid Operator (Factory Installed) |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Remote Controlled, Solenoid Operated, Non-Interchangeable Trip |
Quantity
Eaton / Cutler-Hammer GHBS1030D - 30A 1 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | GHBS |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 277VAC, 14kA @ 125VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Pow-R-Command Panelboards |
| Wire Gauge | 10-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included, Solenoid Operator (Factory Installed) |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Remote Controlled, Solenoid Operated, Non-Interchangeable Trip |
Description
Designed for 30A commercial lighting circuits, the Eaton GHBS1030D features a built-in solenoid operator for remote-controlled switching. It provides robust thermal-magnetic protection within the Series C family of devices. This single-pole breaker bolts into Eaton Pow-R-Command automated panelboards. It is superseded by the GHQRSP1030 for Pow-R-Command systems manufactured from 2001 onward. The device offers a 65 kAIC rating at 120V and is fully HACR rated for HVAC applications.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | GHBS |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 277VAC, 14kA @ 125VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Pow-R-Command Panelboards |
| Wire Gauge | 10-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included, Solenoid Operator (Factory Installed) |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Remote Controlled, Solenoid Operated, Non-Interchangeable Trip |
Product FAQs
6 answersWhat is the primary application for the Eaton GHBS1030D circuit breaker?
The GHBS1030D is designed for commercial lighting circuits and automated energy management. It features a built-in solenoid operator that allows for remote-controlled switching when installed in Eaton Pow-R-Command panelboards.
Is there a direct replacement for the GHBS1030D in newer Pow-R-Command panels?
Yes. For Eaton Pow-R-Command lighting control systems manufactured from 2001 onward, the GHBS1030D is superseded by the GHQRSP1030 substitute model.
How does the remote switching function operate on the GHBS1030D?
The breaker includes a factory-installed, solenoid-operated mechanism. This allows the unit to receive pulse signals from a remote controller, enabling automated pulse-on and pulse-off operation for lighting loads.
Is the GHBS1030D suitable for use with heating and cooling equipment?
Yes, this breaker is fully HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment that requires HACR-certified overcurrent protection.
Can I install the GHBS1030D in a standard residential load center?
No. This is a bolt-on, G-frame circuit breaker specifically designed for 277/480V commercial panelboards, such as the Eaton Pow-R-Command series. It will not fit in standard plug-on residential load centers.
What safety precautions are required when servicing the GHBS1030D?
Always de-energize the main panelboard before installation or maintenance. Because this breaker features a remote-controlled solenoid, you must also verify that all low-voltage control circuits are completely powered down to prevent accidental switching or electrical shock.
