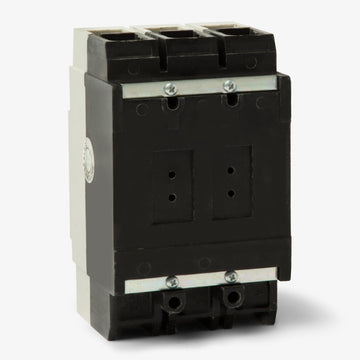

Eaton / Cutler-Hammer GHC3015 Molded Case Circuit Breaker
- 15A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
GHC3015
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
GHC3015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer GHC3015 - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
25A 3 Pole Molded Case Circuit Breaker
30A 3 Pole Molded Case Circuit Breaker
35A 3 Pole Molded Case Circuit Breaker
Description
Designed for commercial power distribution, this 3-pole, 15A unit-mount breaker offers reliable current-limiting performance. The Eaton GHC3015 utilizes a fixed thermal-magnetic trip unit to handle overloads and short circuits on three-phase systems. It fits seamlessly into Series C enclosures, OEM machinery panels, and custom switchgear. With a 65kAIC rating at 240VAC and HACR certification, this G-frame component supports versatile reverse-feed applications.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GHC3015 |
| Series | GHC |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | GHC |
|---|---|

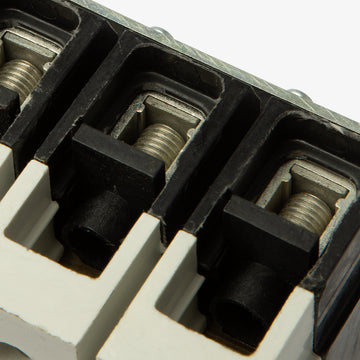

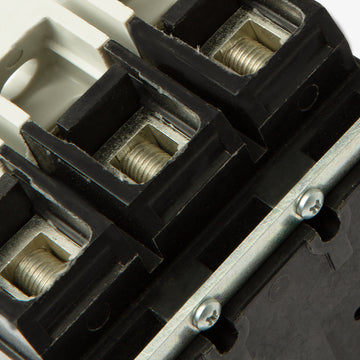

| Terminal Type | Screw/Clamp Terminal |
| For Use With | Eaton Series C Enclosures, OEM Panels, DIN Rail (with adapter) |
| Wire Gauge | 14-10 AWG |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, DIN Rail Adapter |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed |
Product FAQs
7 answersCan the GHC3015 be mounted on a standard DIN rail?
Yes, but it requires a separate adapter. For 3-pole G-Frame breakers like the GHC3015, use Eaton DIN rail adapter kit 1225C79G02. This allows the breaker to snap onto standard 35mm DIN rails.
Is the Eaton GHC3015 suitable for reverse feed applications?
Yes, Series C G-Frame circuit breakers are suitable for reverse feed use. Always verify that no voltage is present before servicing reverse-fed equipment.
Is the GHC3015 HACR rated?
Yes, this breaker carries an HACR rating, making it suitable for group motor applications in heating, air conditioning, and refrigeration equipment.
Can I field-install internal accessories like a shunt trip or auxiliary switch on the GHC3015?
No. Eaton Series C G-Frame breakers are factory-sealed. Field installation of internal accessories will void the UL listing. Any internal accessories must be factory-installed.
Are the trip settings adjustable on the GHC3015?
No, this breaker features a fixed thermal and fixed magnetic trip unit. Neither the long-time nor the instantaneous trip functions can be adjusted in the field.
Is this breaker the same as the Westinghouse or Cutler-Hammer GHC3015?
Yes. Eaton acquired the Westinghouse distribution equipment business and later Cutler-Hammer. The GHC3015 catalog number remains the same across these legacy brands and is a direct, drop-in replacement.
What safety precautions apply when installing the GHC3015?
Always ensure the breaker is switched to the OFF position and that no voltage is present before installation or inspection. Special attention is required for reverse feed applications to confirm all power sources are disconnected.
