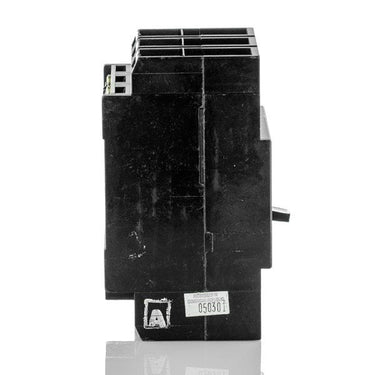

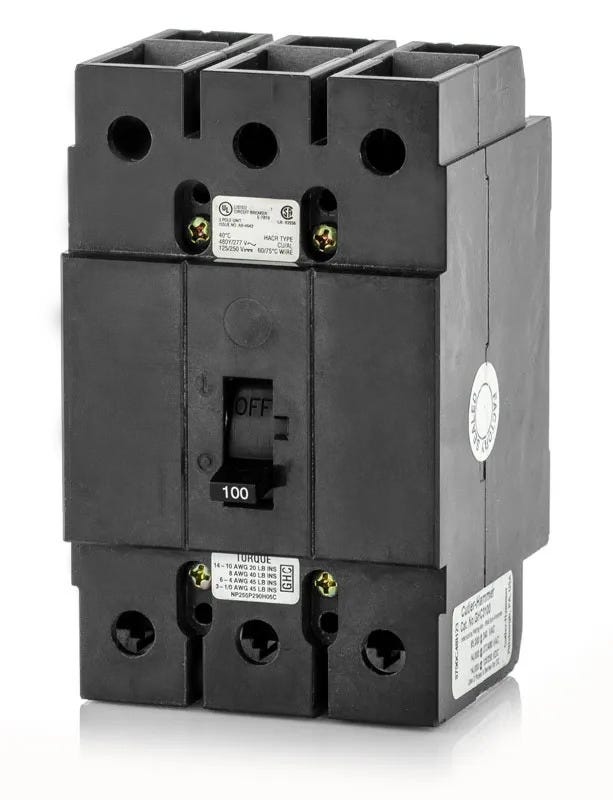

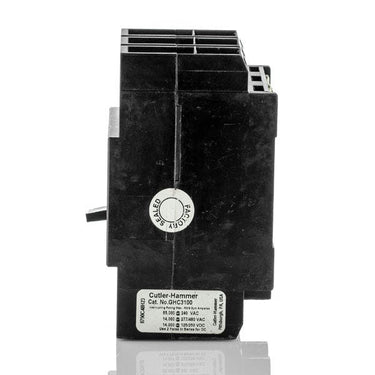

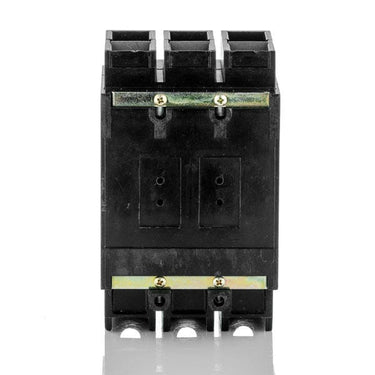

Eaton / Cutler-Hammer GHC3100 Molded Case Circuit Breaker
- 100A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
GHC3100
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
GHC3100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer GHC3100 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer GHC3100 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GHC3100 |
| Series | GHC |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | GHC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Enclosures, Motor Control Centers, OEM Panels, DIN Rail (with adapter) |
| Wire Gauge | 10-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, DIN Rail Adapter |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed |
Sold out
Quantity
Eaton / Cutler-Hammer GHC3100 - 100A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | GHC |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | GHC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Enclosures, Motor Control Centers, OEM Panels, DIN Rail (with adapter) |
| Wire Gauge | 10-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, DIN Rail Adapter |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed |
Similar Items
90A 3 Pole Molded Case Circuit Breaker
80A 3 Pole Molded Case Circuit Breaker
70A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, the Eaton GHC3100 is a 3-pole, 100A molded case circuit breaker from the Series C G-Frame family. It provides dependable long-time and instantaneous (LI) protection for electrical systems. This unit-mount breaker installs into Eaton Series C enclosures, motor control centers, and OEM panels. It can also be adapted for DIN rail mounting. Rated at 65kAIC at 240VAC, it features a fixed thermal-magnetic trip unit and is HACR rated.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GHC3100 |
| Series | GHC |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | GHC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Enclosures, Motor Control Centers, OEM Panels, DIN Rail (with adapter) |
| Wire Gauge | 10-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, DIN Rail Adapter |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed |
Product FAQs
6 answersCan the Eaton GHC3100 be mounted on a standard DIN rail?
Yes, the GHC3100 can be mounted on a standard 35mm DIN rail using an adapter kit. For 3-pole G-frame breakers, use Eaton adapter part number 1225C79G02.
What are the terminal torque specifications for the GHC3100 circuit breaker?
The required torque depends on the wire size used. For 10 AWG wire, torque to 20 in-lb. For 8 AWG, use 40 in-lb. For 6 AWG through 1/0 AWG, torque to 45 in-lb. Always verify with the breaker nameplate before finalizing connections.
Are the trip settings adjustable on the GHC3100?
No, the GHC3100 features a fixed thermal and fixed magnetic trip unit. It provides standard LI (Long-Time and Instantaneous) protection functions and cannot be field-adjusted.
Can I field-install internal accessories in the GHC3100?
No, Eaton GHC circuit breakers are factory sealed. Underwriters Laboratories (UL) standards require that internal accessories, such as shunt trips or auxiliary switches, be installed at the factory.
Is the GHC3100 rated for use in direct current applications?
Yes, this breaker is rated for 125/250VDC applications with an interrupting capacity of 14kAIC. It is suitable for both AC and DC commercial or industrial systems.
Is there a difference between the Cutler-Hammer GHC3100 and the Eaton GHC3100?
No, they are the exact same product. Eaton acquired Cutler-Hammer, and the GHC3100 is now manufactured under the Eaton brand while retaining the same Series C G-frame specifications and physical dimensions.
