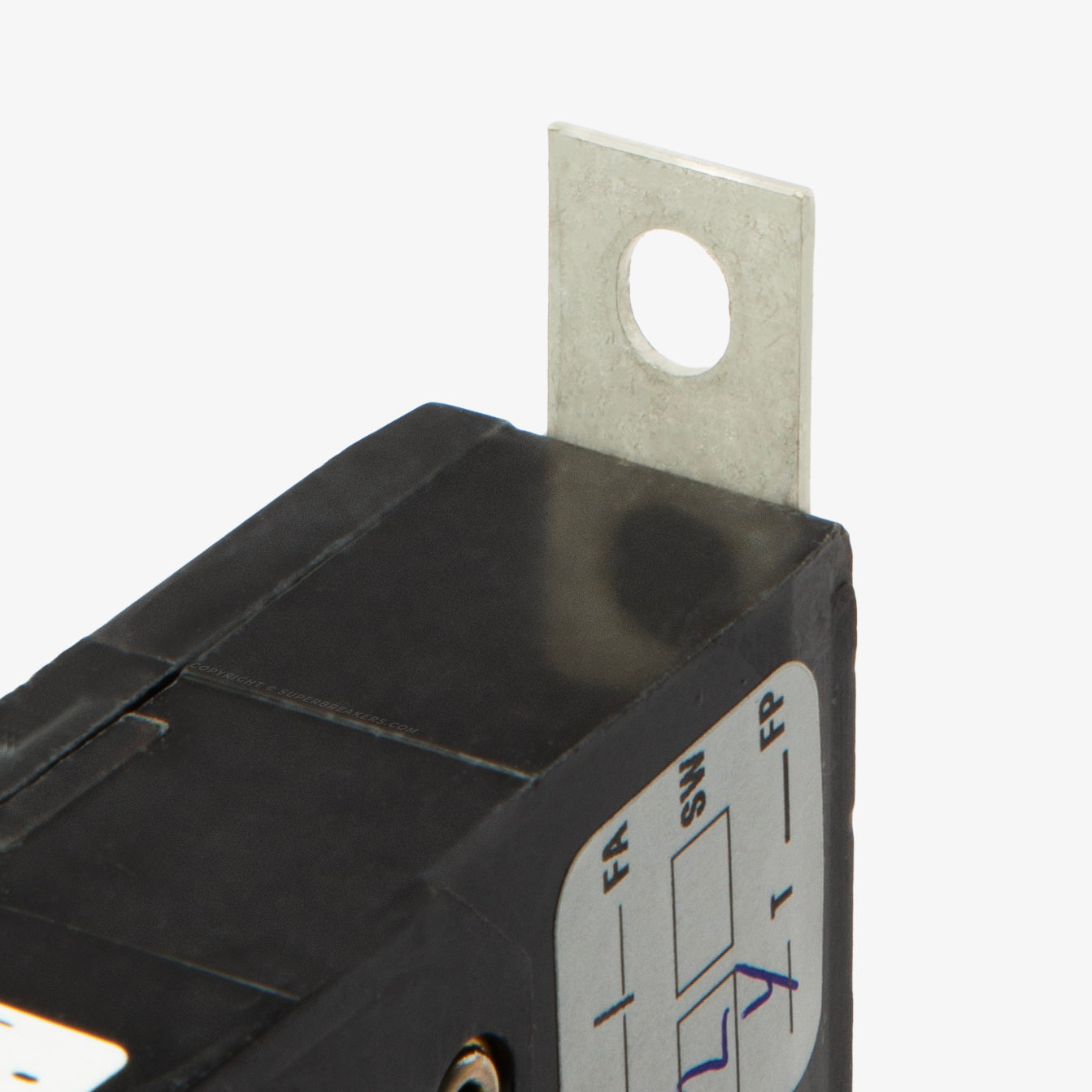

Eaton / Cutler-Hammer GHQRSP1020 - 20A 1 Pole Miniature Circuit Breaker

New

$440.00 In stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description
Rated for 20A commercial applications, this single-pole miniature circuit breaker offers dependable thermal-magnetic protection and remote switching capabilities. It enables advanced facility lighting and power control. This bolt-on breaker installs into Eaton Pow-R-Command panelboards. It features a compact 1-inch width and accepts 14-4 AWG conductors. Delivering 65kAIC at 120V, the unit includes a factory-installed 24VAC solenoid operator and carries both HID and SWD ratings.

Specifications

Brand Eaton / Cutler-Hammer
Series GHQRSP
Part Number GHQRSP1020
Amperage 20A
Voltage 120VAC, 277VAC, 480Y/277VAC
Poles 1
Phase 1
AIC Rating 65kA @ 120VAC, 14kA @ 277VAC, 14kA @ 480Y/277VAC
Mounting Style Bolt-On
Terminal Type Lugs
For Use With Eaton Pow-R-Command Panelboards
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed
Wire Gauge 14-4 AWG
Max Wire 4 AWG
Min Wire 14 AWG
Available Options Padlock Attachment
Accessories Load Side Lugs Included, Solenoid Operator (Factory Installed), Auxiliary Switch (Factory Installed)
Standards CSA C22.2, UL 489
Approval CSA, UL
Temp Rating 40C
Construction Features Remote Controlled, Solenoid Operated, HID Rated, SWD Rated, HACR Rated, Current Limiting
