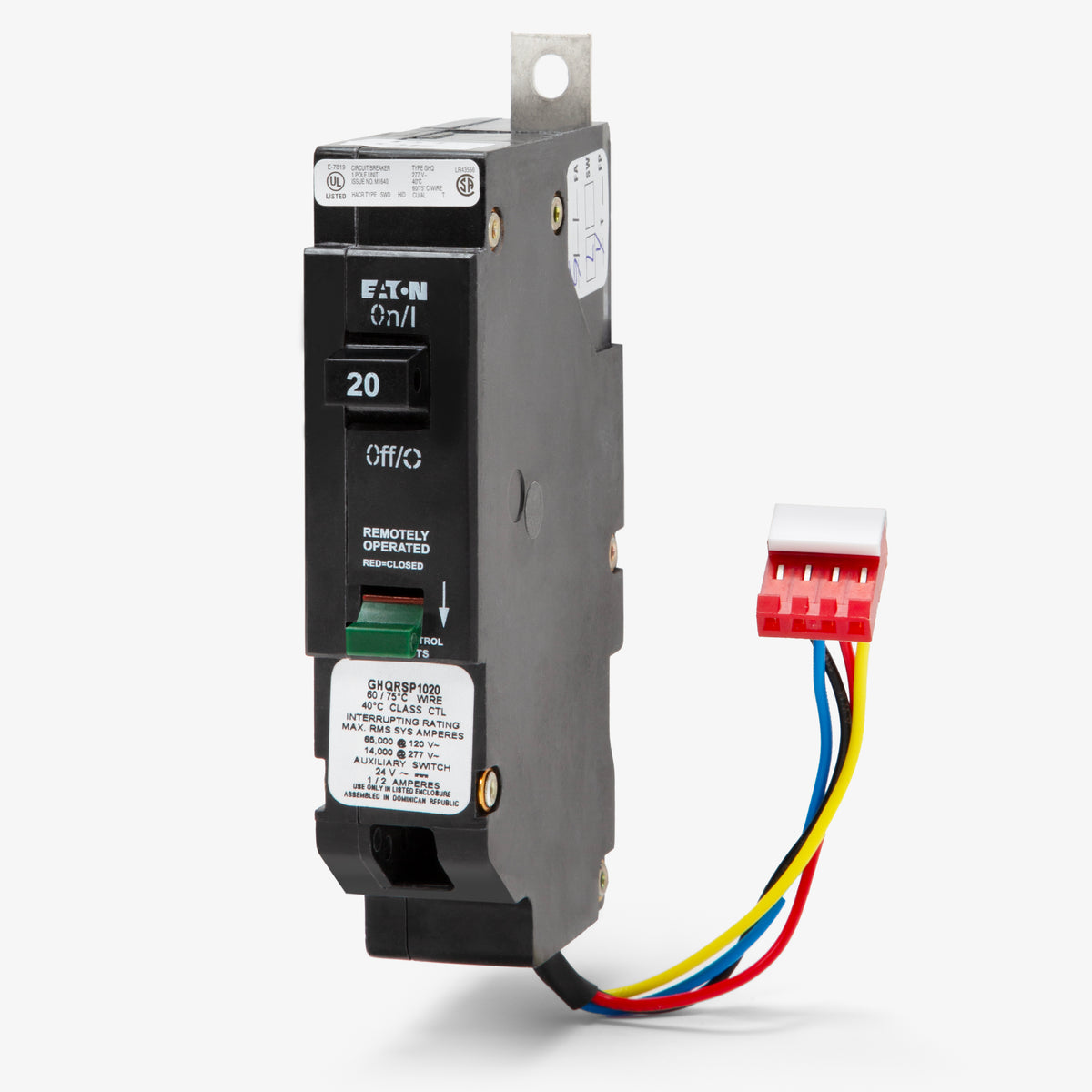

Eaton / Cutler-Hammer GHQRSP1020 Miniature Circuit Breaker
- 20A
- 1 Pole
- Bolt-On
Eaton / Cutler-Hammer
GHQRSP1020
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
GHQRSP1020
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer GHQRSP1020 - 20A 1 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer GHQRSP1020 - 20A 1 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GHQRSP1020 |
| Series | GHQRSP |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 480Y/277VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 277VAC, 14kA @ 480Y/277VAC |
| Frame Type | GHQRSP |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Command Panelboards |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included, Solenoid Operator (Factory Installed), Auxiliary Switch (Factory Installed) |
| Standards | CSA C22.2, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Remote Controlled, Solenoid Operated, HID Rated, SWD Rated, HACR Rated, Current Limiting |
Quantity
Eaton / Cutler-Hammer GHQRSP1020 - 20A 1 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GHQRSP1020 |
| Series | GHQRSP |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 480Y/277VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 277VAC, 14kA @ 480Y/277VAC |
| Frame Type | GHQRSP |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Command Panelboards |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included, Solenoid Operator (Factory Installed), Auxiliary Switch (Factory Installed) |
| Standards | CSA C22.2, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Remote Controlled, Solenoid Operated, HID Rated, SWD Rated, HACR Rated, Current Limiting |
Similar Items
Eaton / Cutler-HammerGHQRSP1030
30A 1 Pole Miniature Circuit Breaker
Eaton / Cutler-HammerGHQRSP2020
20A 2 Pole Miniature Circuit Breaker
20A 1 Pole Miniature Circuit Breaker
Description
Rated for 20A commercial applications, this single-pole miniature circuit breaker offers dependable thermal-magnetic protection and remote switching capabilities. It enables advanced facility lighting and power control. This bolt-on breaker installs into Eaton Pow-R-Command panelboards. It features a compact 1-inch width and accepts 14-4 AWG conductors. Delivering 65kAIC at 120V, the unit includes a factory-installed 24VAC solenoid operator and carries both HID and SWD ratings.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GHQRSP1020 |
| Series | GHQRSP |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 480Y/277VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 277VAC, 14kA @ 480Y/277VAC |
| Frame Type | GHQRSP |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Command Panelboards |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included, Solenoid Operator (Factory Installed), Auxiliary Switch (Factory Installed) |
| Standards | CSA C22.2, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Remote Controlled, Solenoid Operated, HID Rated, SWD Rated, HACR Rated, Current Limiting |
Product FAQs
6 answersWhich panelboards are compatible with the GHQRSP1020 circuit breaker?
This remote-controlled breaker is designed exclusively for Eaton Pow-R-Command lighting control panelboards, such as the PRC750 and PRC1000 systems. It mounts directly to the panel and interfaces with the breaker control bus for automated facility management.
What does the RSP designation indicate on this Eaton breaker?
The RSP suffix stands for Remote Switching Panelboard. It indicates the breaker includes a factory-installed 24V solenoid operator, allowing the Pow-R-Command controller to electronically open or close the circuit for lighting automation.
How does the GHQRSP1020 connect to the automated control system?

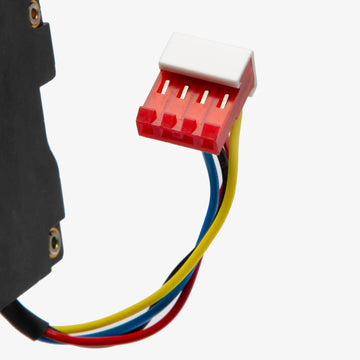

The breaker features factory-installed control wires for the 24V solenoid and feedback status. These wires connect directly to the breaker control bus within the Pow-R-Command panelboard to receive switching signals from the integrated controller.
Is this breaker rated for switching commercial lighting circuits?
Yes, the GHQRSP1020 carries both SWD (Switching Duty) and HID (High-Intensity Discharge) ratings. This ensures the internal contacts can safely handle the high inrush currents typical of commercial lighting automation systems.
Can I substitute a standard GHB breaker for the GHQRSP1020?
No. While they share a similar physical bolt-on footprint, standard GHB breakers lack the internal remote-control solenoid required for operation in Pow-R-Command panels. A standard GHB cannot be switched by the automated lighting controller.
Can the GHQRSP1020 be manually operated for safe maintenance lockouts?
Yes. Even though it is a remote-controlled breaker, it features a standard manual handle and thermal-magnetic trip mechanism. Electricians can manually open the circuit and apply a padlock attachment for safe downstream maintenance.
