Eaton / Cutler-Hammer HFD3015L Molded Case Circuit Breaker

  • 15A
  • 3 Pole
  • Unit Mount
Eaton / Cutler-Hammer HFD3015L
Molded Case Circuit Breaker
Brand Eaton / Cutler-Hammer
SKU HFD3015L
Select Item Condition
Earn 410 SuperPoints
  • 15A
  • 3 Pole
  • Unit Mount

Quantity

Bulk Pricing
Send your parts list for a volume quote.
Request Pricing
Eaton / Cutler-Hammer HFD3015L - 15A 3 Pole Molded Case Circuit Breaker

Eaton / Cutler-Hammer HFD3015L - 15A 3 Pole Molded Case Circuit Breaker

Re-Certified

$410.00 In Stock

Quantity

Similar Items

Description SpecificationsProduct FAQs SuperClub Warranties Shipping Reviews 5.0 (21)

Description

Engineered for heavy-duty commercial use, the Eaton HFD3015L is a 3-pole, 15A molded case circuit breaker from the proven Series C family. It delivers reliable long-time and instantaneous (LI) trip functions for 600VAC and 250VDC circuits. This unit-mount MCCB is built for installation in Eaton switchboards, motor control centers, and Series C panelboards. It comes factory-equipped with line and load lugs. Boasting a 65kAIC rating at 480V, it offers high interrupting capacity.

Specifications

Key specifications
Brand Eaton / Cutler-Hammer
Series HFD
Amperage 15A
Poles 3
Mounting Style Unit Mount
Voltage 240VAC, 480VAC, 600VAC, 250VDC
Phase 3
AIC Rating 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC
Fit and installation
Frame Type FD
Terminal Type Lugs
For Use With Eaton Series C Panelboards, Switchboards, Motor Control Centers
Wire Gauge 14-1/0 AWG (Cu/Al)
Max Wire 1/0 AWG
Min Wire 14 AWG
Protection and operation
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed Thermal, Fixed Magnetic
Standards and features
Available Options Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator
Accessories Line and Load Lugs
Standards CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489
Approval CE, CSA, UL
Temp Rating 40C
Construction Features HACR Rated, HID Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip, Common Trip

Product FAQs

7 answers
What equipment is the Eaton HFD3015L compatible with?

This F-Frame breaker is designed for installation in Eaton Series C panelboards, switchboards, and motor control centers.

What does the L suffix mean in the HFD3015L catalog number?

The L suffix indicates that the breaker is supplied with factory-installed line and load lugs.

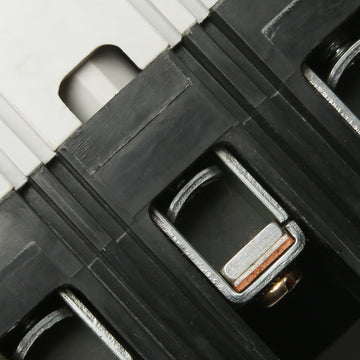

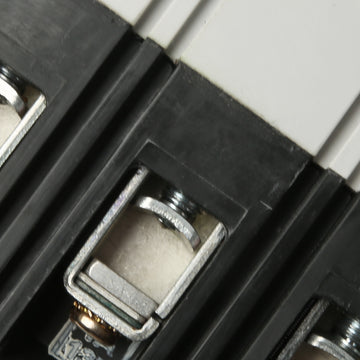

What wire sizes do the standard lugs on the HFD3015L accept?

The factory-installed lugs accept copper or aluminum conductors ranging from 14 AWG up to 1/0 AWG.

Does the HFD3015L offer adjustable trip settings?

No, this breaker uses a fixed thermal and fixed magnetic trip unit. It provides standard long-time and instantaneous (LI) protection without field adjustability.

Can the Eaton HFD3015L replace older Cutler-Hammer or Westinghouse breakers?

Yes. Eaton acquired the Cutler-Hammer and Westinghouse circuit breaker lines. The HFD3015L is a direct replacement for older breakers bearing the exact same catalog number under those legacy brands.

How does the HFD3015L mount inside an enclosure?

It is a unit mount, feed-thru breaker. It bolts directly to the chassis or mounting pan rather than plugging onto a bus bar system.

What is the DC interrupting rating for the HFD3015L?

When used in 250VDC applications, this breaker provides an interrupting capacity of 22kA.
