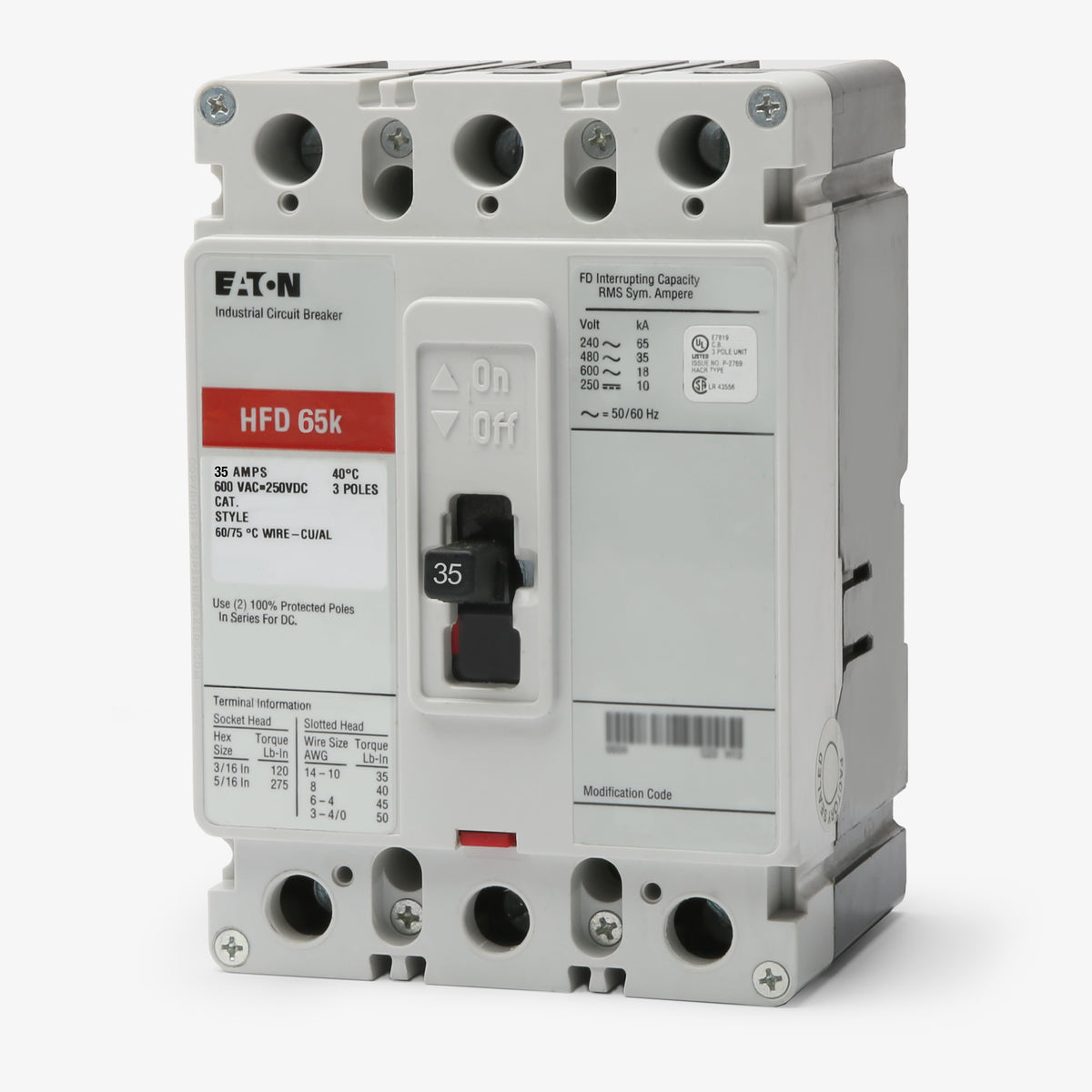

Eaton / Cutler-Hammer HFD3035 Molded Case Circuit Breaker
- 35A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
HFD3035
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
HFD3035
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer HFD3035 - 35A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer HFD3035 - 35A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | HFD3035 |
| Series | HFD |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Frame Type | FD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Terminal Shields, Handle Tie |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, HID Rated |
Quantity
Eaton / Cutler-Hammer HFD3035 - 35A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | HFD |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Frame Type | FD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Terminal Shields, Handle Tie |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, HID Rated |
Similar Items
50A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
70A 3 Pole Molded Case Circuit Breaker
Description
Belonging to the Series C family, the Eaton HFD3035 delivers 35A of industrial-grade MCCB performance. The 'H' prefix designates its high interrupting capacity for demanding environments. This F-frame device utilizes a panel mount configuration for Eaton panelboards and motor control centers. It is reverse feed capable and superseded by the PDG23M0035TFFJ. Rated 65kAIC at 480VAC, it features fixed thermal-magnetic trip technology for precise long-time and instantaneous (LI) protection.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | HFD |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Frame Type | FD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Terminal Shields, Handle Tie |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, HID Rated |
Product FAQs
6 answersWhat equipment is compatible with the Eaton HFD3035?
The HFD3035 is designed for use in Eaton Series C panelboards, switchboards, and motor control centers.
What wire size do the standard lugs on the HFD3035 accept?
The factory-installed terminals are rated for 14 AWG to 1/0 AWG copper or aluminum conductors.
Are the trip settings on the HFD3035 adjustable?
No, this breaker utilizes a thermal-magnetic trip unit with fixed thermal and fixed magnetic protection elements.
Does the HFD3035 support direct current (DC) applications?
Yes, it is rated for use in DC systems up to 250VDC with a maximum interrupting capacity of 22kA.
What is the physical frame size of the HFD3035?
This breaker is built on the Eaton Series C F-Frame platform, specifically the FD frame type.
How is the HFD3035 installed?
The HFD3035 is a bolt-on circuit breaker designed to be secured directly to the panel bus.
