Eaton HLA3400F Frame
Quantity
Core Specs
See full specs
Eaton HLA3400F Frame
Re-Certified
Quantity
Description

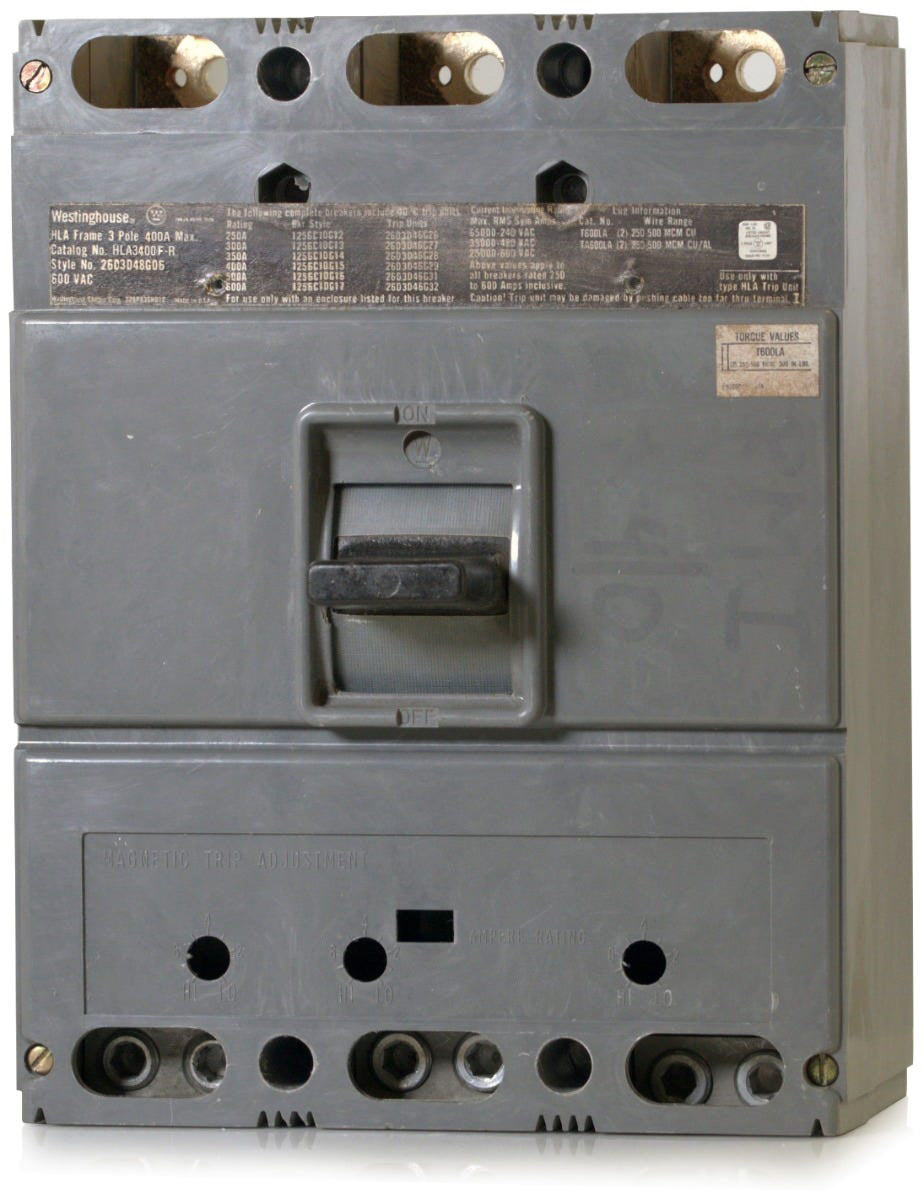

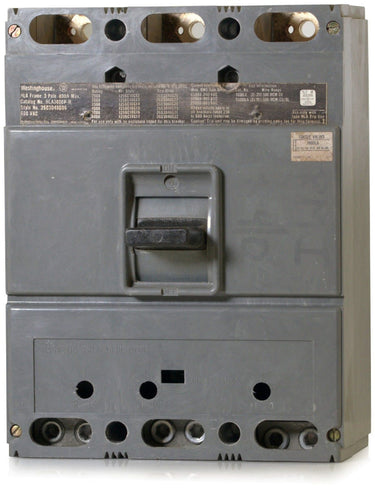

Eaton HLA3400F Frame
The Eaton HLA3400F is a 3 Pole circuit breaker frame with a current rating of 400 Amps and a voltage rating of 600VAC, 250VDC. It has an interrupting rating of 65kAIC at 240VAC, 35kAIC at 600VAC. The HLA3400F has a bolt-on connection type and it is used for electrical assemblies, panels and EOEMs applications.
Specifications
| Amperage | 400 A |
|---|---|
| Voltage | 600VAC, 250VDC |
| Series | Classic |
| Poles | 3 |
| Phase | 3 |
|---|---|
| Interrupting Rating | 65kAIC at 240VAC, 35kAIC at 600VAC |
| Connection Type | Bolt-On |
|---|
| Protection | Thermal Magnetic |
|---|---|
| Circuit Breaker Type | HLA |
| Approval | UL |
|---|
| Brand | Eaton |
|---|
