Eaton / Cutler-Hammer HMCPS050K2C Motor Circuit Protector
- 50A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
HMCPS050K2C
Motor Circuit Protector
Brand
Eaton / Cutler-Hammer
SKU
HMCPS050K2C
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

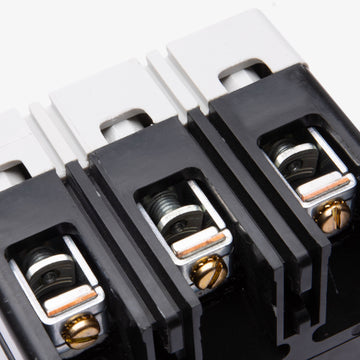

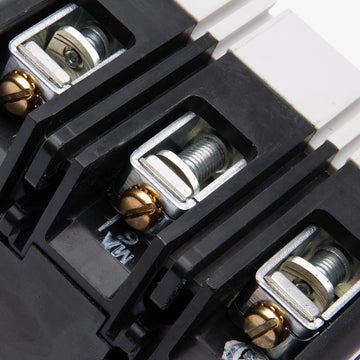

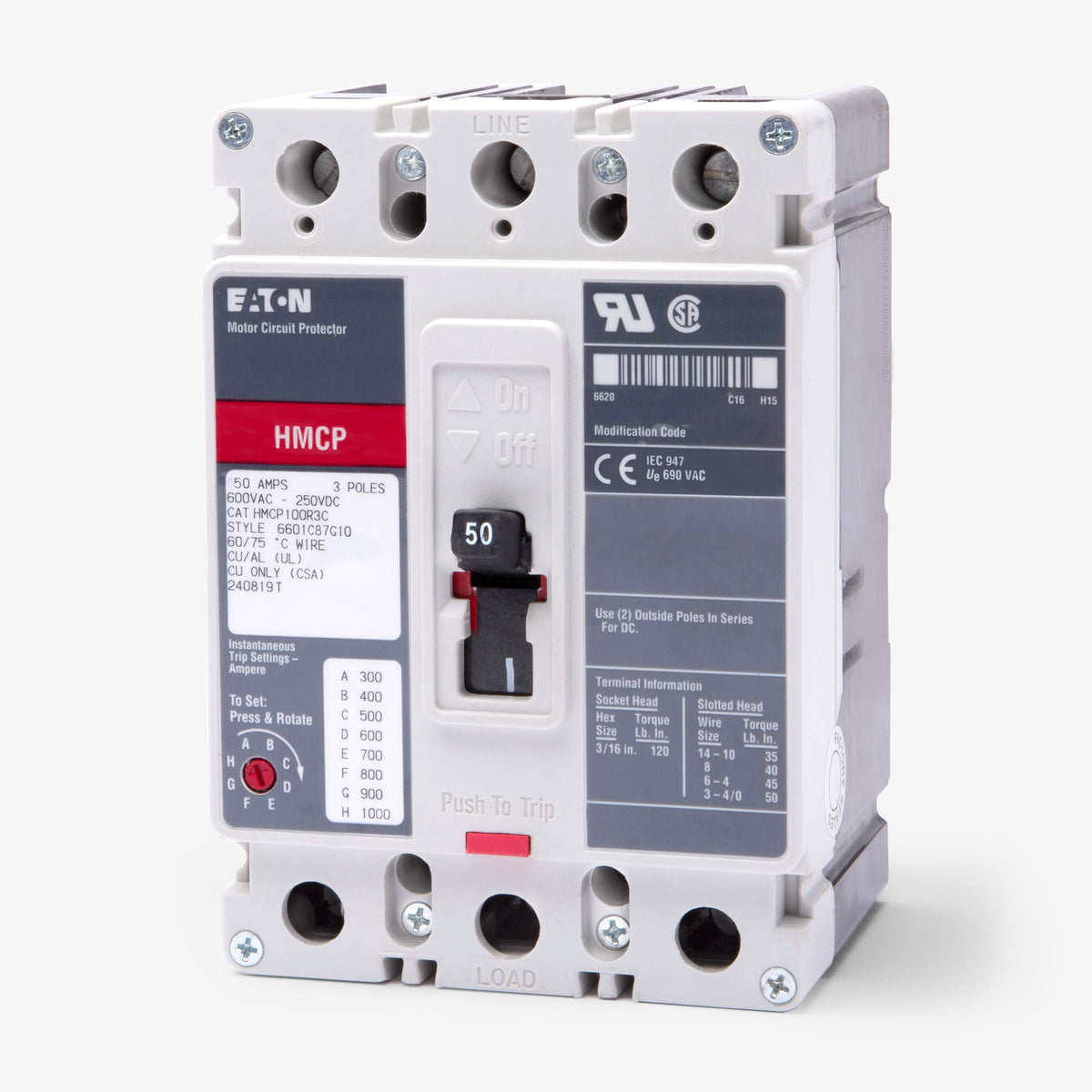

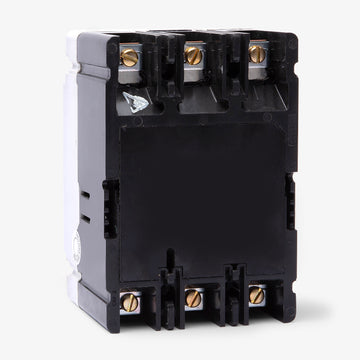

Eaton / Cutler-Hammer HMCPS050K2C - 50A 3 Pole Motor Circuit Protector
New
Quantity
Similar Items
Eaton / Cutler-HammerHMCPS015E0C
15A 3 Pole Motor Circuit Protector
Eaton / Cutler-HammerHMCPS007C0C
7A 3 Pole Motor Circuit Protector
Eaton / Cutler-HammerHMCPS003A0C
3A 3 Pole Motor Circuit Protector
Description
Designed for industrial motor control applications, this 50A Series C device provides instantaneous short-circuit defense. It coordinates seamlessly with Eaton motor starters and electronic overload relays to prevent equipment damage during fault conditions. Mounting into standard enclosures, the unit features non-aluminum terminals designated by the C suffix. It serves as a reliable component within motor control centers requiring precise coordination.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | HMCPS050K2C |
| Series | HMCPS |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | FD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Motor Starters (with Electronic Overload Relays), Motor Control Centers |
| Wire Gauge | 14 AWG - 1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Non-Aluminum Terminals (Suffix C) |
| Standards | CSA C22.2 No. 5.1, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL, UR |
| Temp Rating | 40C |
| Construction Features | Motor Circuit Protector, Non-Aluminum Terminals, Non-Interchangeable Trip |
