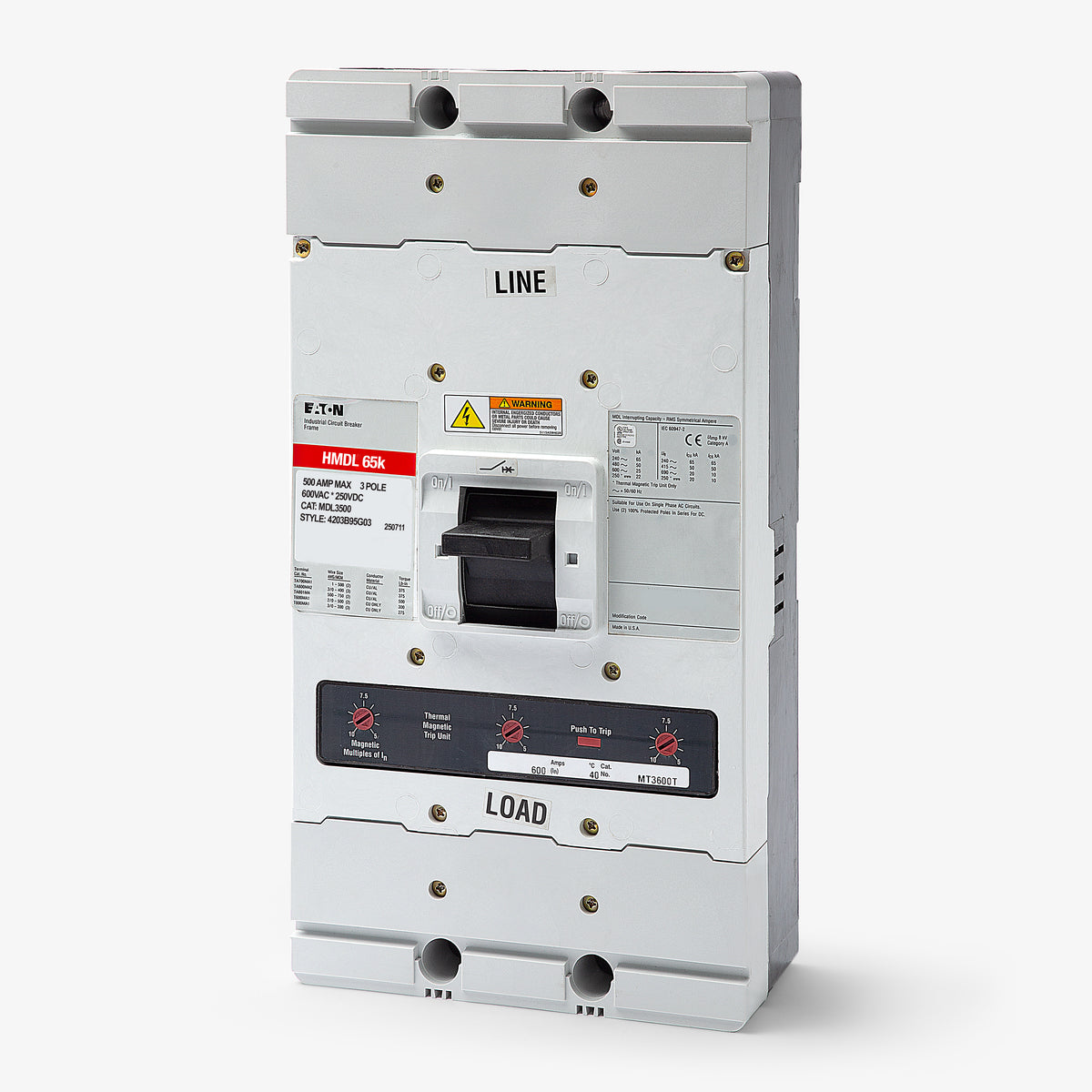

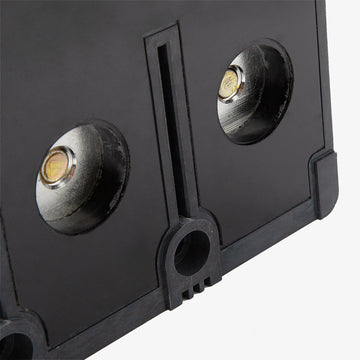

Eaton / Cutler-Hammer HMDL3500 Molded Case Circuit Breaker
- 500A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
HMDL3500
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
HMDL3500
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer HMDL3500 - 500A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
600A 3 Pole Molded Case Circuit Breaker
400A 3 Pole Molded Case Circuit Breaker
350A 3 Pole Molded Case Circuit Breaker
Description
The HMDL3500 is a molded case circuit breaker from Eaton's Series C lineup. This 500A, three-pole device provides robust overcurrent protection for industrial electrical systems. Featuring an M-Frame footprint, it mounts into compatible Eaton panelboards, switchboards, and motor control centers. It utilizes standard lug terminals for secure connections. Rated for 65 kAIC at 480VAC, it includes fixed thermal and magnetic trip units. The breaker is HACR rated and reverse feed capable.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | HMDL |
| Amperage | 500A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 35kA @ 600VAC, 25kA @ 250VDC |
| Frame Type | MDL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | Two 1 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Terminals |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | High Interrupting Capacity, HACR Rated, Reverse Feed |
Product FAQs
6 answersCan the HMDL3500 replace older Westinghouse circuit breakers?
Yes. The Eaton Series C M-frame is a direct replacement for legacy Westinghouse MA, MD, HMA, MC, and HMC frame circuit breakers. Verify your busbar connections and lug requirements before installation.
What is the difference between the Eaton MDL3500 and HMDL3500?
The H in HMDL designates a high interrupting capacity. The HMDL3500 is rated for 65kAIC at 480VAC, whereas the standard MDL3500 is rated for 50kAIC at 480VAC.
What wire sizes are compatible with the standard lugs on the HMDL3500?

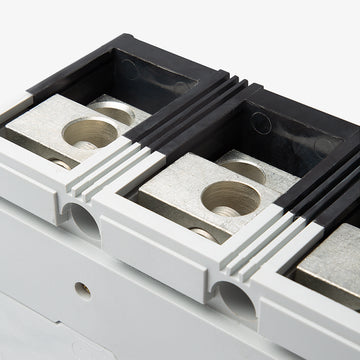

The standard feed-thru lugs accept two 1 AWG to 500 kcmil aluminum or copper conductors per phase.
What enclosures are designed to accept the HMDL3500 breaker?
This M-frame breaker is designed for use in Eaton Series C panelboards, switchboards, and motor control centers.
Does the HMDL3500 provide ground fault protection?
No. This breaker features an LI (Long-Time and Instantaneous) thermal-magnetic trip unit, which provides overload and short-circuit protection but does not include ground fault sensing.
Are the trip settings adjustable on the HMDL3500?
No. This specific breaker features a fixed thermal and fixed magnetic trip unit. It does not offer adjustable long-time or instantaneous pickup settings.
