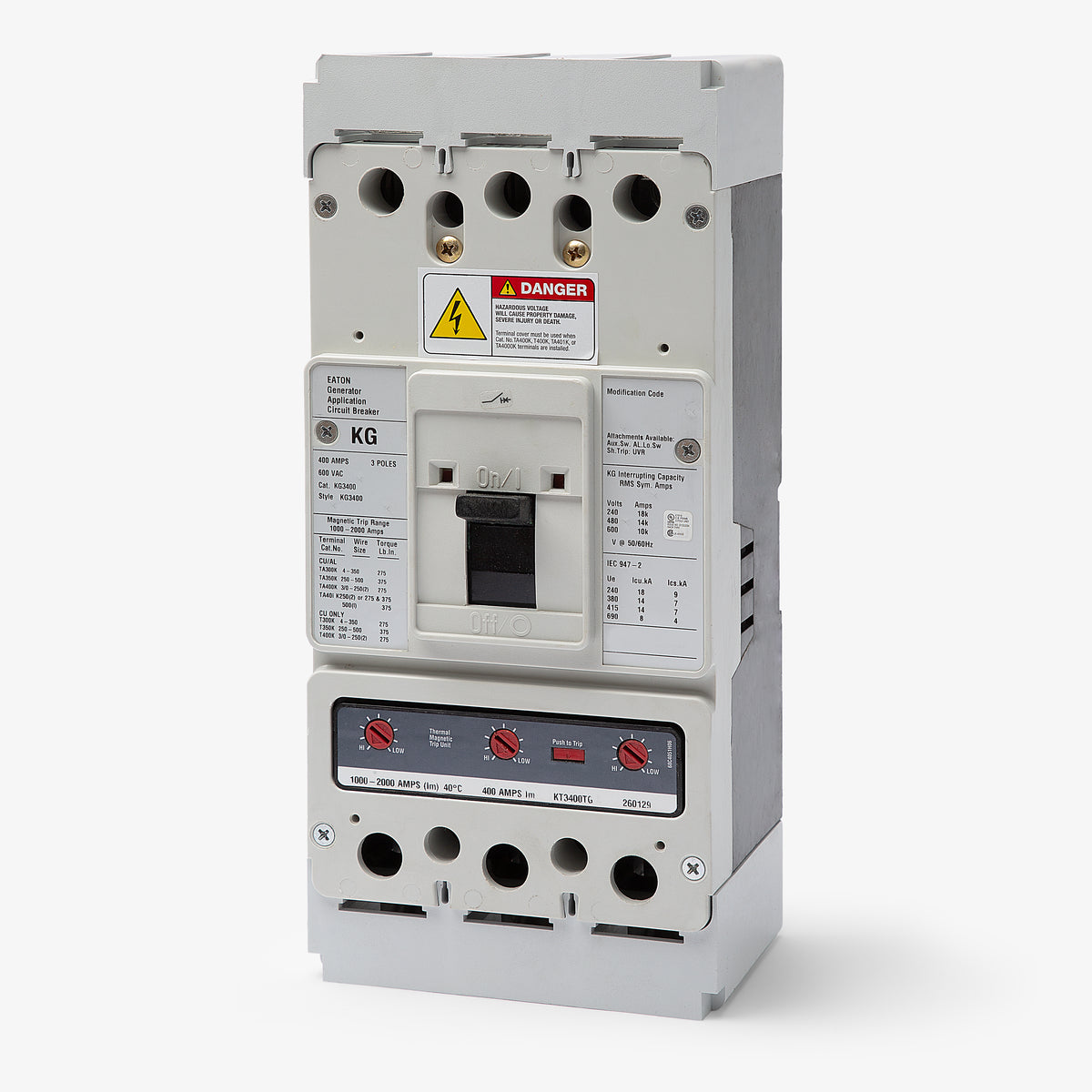

Eaton / Cutler-Hammer KG3400 Molded Case Circuit Breaker
- 400A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
KG3400
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
KG3400
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer KG3400 - 400A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
400A 3 Pole Molded Case Circuit Breaker
400A 3 Pole Molded Case Circuit Breaker
400A 3 Pole Molded Case Circuit Breaker
Description
Designed to protect critical backup power systems, the KG3400 is a 3-pole, 400A Series C K-Frame MCCB. It is engineered for engine generators, utilizing a special low magnetic pickup to accurately respond to unique fault current characteristics. This unit-mount breaker is compatible with Series C panelboards and generator enclosures. It features a fixed thermal-magnetic trip unit and reverse-feed capability. With an 18 kAIC rating at 240V, this current-limiting device ensures reliability.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | KG |
| Amperage | 400A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC, 10kA @ 600VAC |
| Frame Type | KD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Series C Panelboards, Engine Generators |
| Wire Gauge | 250-500 kcmil (1) or 3/0 AWG-250 kcmil (2) (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Reverse Feed, Non-Interchangeable Trip |
Product FAQs
5 answersWhat panelboards and enclosures are compatible with the KG3400?
This K-Frame breaker is designed for use in Eaton Series C panelboards, switchboards, and dedicated engine generator enclosures.
What wire sizes do the standard lugs on the KG3400 accept?

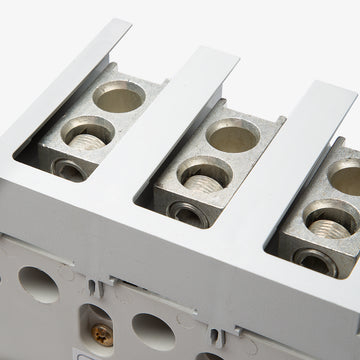

The included line and load lugs accept either one 250 to 500 kcmil conductor or two 3/0 AWG to 250 kcmil conductors per phase. They are rated for both aluminum and copper wire.
Can this circuit breaker be reverse fed?
Yes, the KG3400 includes reverse feed capability. This allows for flexible installation with either top or bottom entry in your panel or cabinet.
Why is the KG3400 specified for engine generators instead of a standard K-Frame breaker?
The KG3400 features a specialized low magnetic pickup range that is approximately two to five times the continuous rating. This provides closer low-level short-circuit protection tailored for generator circuits, which typically have lower short-circuit capacity than utility power.
What are the standard K-Frame alternatives if I do not need an engine generator breaker?
If your application requires a standard molded case circuit breaker rather than a generator-specific model, Eaton offers the KD3400 rated at 35kAIC at 480V, the HKD3400 rated at 65kAIC at 480V, and the KDC3400 rated at 100kAIC at 480V in the same physical frame size.
