Eaton / Cutler-Hammer PDG12C0015TFFJ Molded Case Circuit Breaker
- 15A
- 2 Pole
- Panel Mount
Quantity

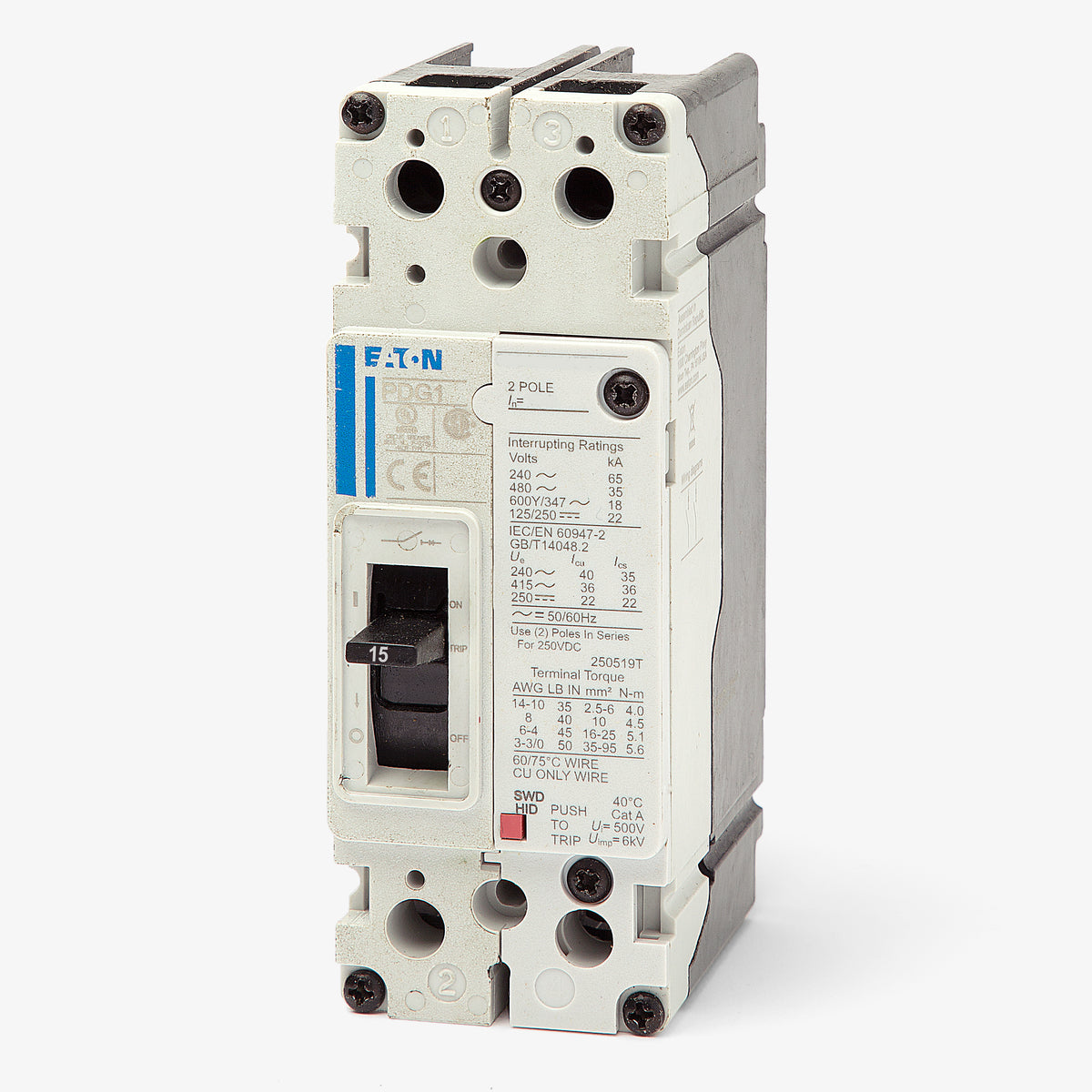

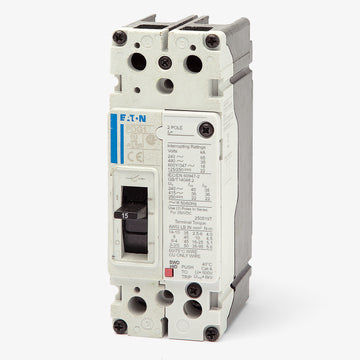

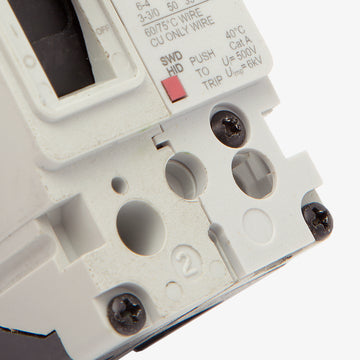

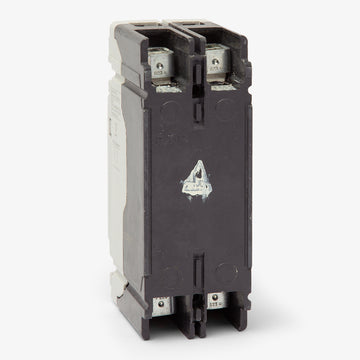

Eaton / Cutler-Hammer PDG12C0015TFFJ - 15A 2 Pole Molded Case Circuit Breaker
New
Quantity
Description
Operating within the Power Defense Frame 1 family, this 15A two-pole MCCB delivers essential fixed thermal and magnetic (LI) trip functions for commercial facilities. It serves as a seamless replacement for older EGB2015FFG models, mounting into compatible Eaton switchboards and panelboards. Delivering an 18kAIC rating at 480VAC, the globally rated component features current-limiting capabilities. Standard box lugs accommodate 14 to 3/0 AWG wiring for versatile industrial integration.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG1 |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 10kA @ 600Y/347VAC, 10kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Power Defense Panelboards, Enclosures, Switchboards |
| Wire Gauge | 14 AWG - 3/0 AWG |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Shunt Trip, Undervoltage Release, Padlock Attachment, DIN Rail Adapter, Handle Lock, Multi-Wire Lugs |
|---|---|
| Accessories | Line and Load Lugs (PDG1X2T125) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | RoHS Compliant, HACR Rated |
Product FAQs
7 answersWhat do the letters "TFFJ" signify in the PDG12C0015TFFJ catalog number?
"TFF" indicates the breaker is equipped with a thermal-magnetic trip unit featuring fixed long-time (thermal) and fixed instantaneous (magnetic) trip functions. The "J" denotes that it includes standard line and load box lug terminals.
How does the "C" in the part number affect the breaker's application?
The "C" designates the specific interrupting capacity tier for Eaton Power Defense Frame 1 breakers. It confirms the breaker is rated to safely interrupt fault currents up to 18kA at 480VAC, which is critical for ensuring the breaker meets the available fault current requirements of your electrical system.
Can I adjust the trip settings on the PDG12C0015TFFJ?
No. This specific breaker features a fixed thermal and fixed magnetic trip unit. The long-time and instantaneous trip functions are factory set and cannot be adjusted in the field. If your application requires adjustable trip settings, you will need a breaker equipped with an electronic trip unit.

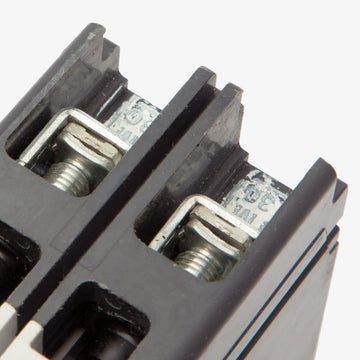

What type of wire can be used with the PDG12C0015TFFJ terminals?
The included box lugs accept wire sizes ranging from 14 AWG to 3/0 AWG. Always torque the terminal lugs to Eaton's specified values printed on the breaker label to ensure a secure and compliant connection.
Is this breaker configured for DIN rail mounting?
Out of the box, the PDG12C0015TFFJ is configured for standard panel mounting. If you need to mount it on a DIN rail, you must purchase a separate Eaton Power Defense DIN rail adapter accessory, such as the PDG1XDIN234P for multi-pole Frame 1 breakers.
Can the PDG12C0015TFFJ be installed in older Cutler-Hammer Series C panelboards?
The Power Defense series is Eaton's modern replacement for legacy breakers, but direct physical compatibility depends on the specific panelboard chassis. You may require updated Eaton mounting hardware or adapter kits to retrofit this Frame 1 breaker into older Series C enclosures.
What safety precautions should be taken before installing the PDG12C0015TFFJ?
Installation should only be performed by a qualified electrician. Ensure all power sources to the panelboard or switchboard are completely de-energized and locked out or tagged out before installing or servicing the breaker to prevent arc flash and shock hazards.
