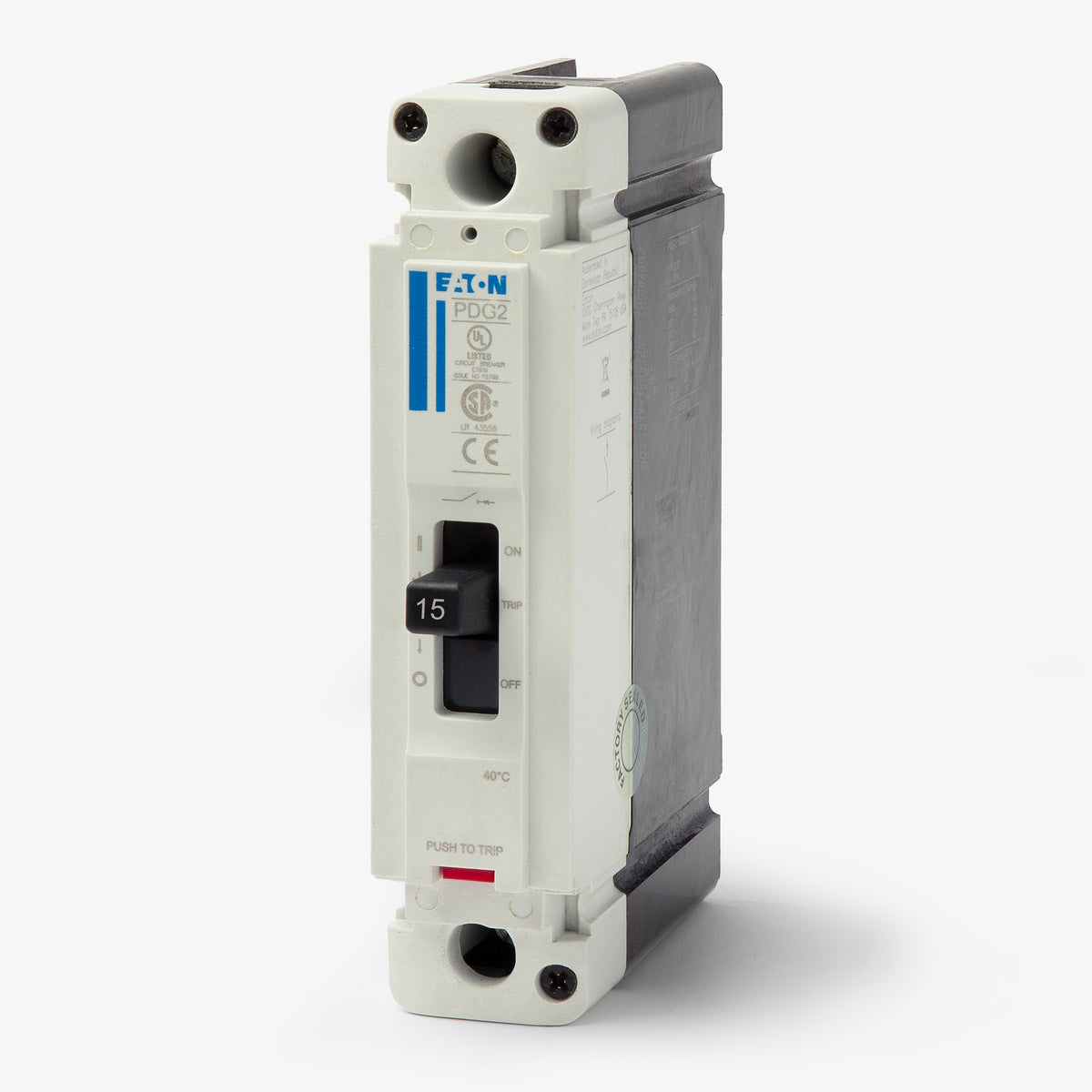

Eaton / Cutler-Hammer PDG21G0015TFFL Molded Case Circuit Breaker
- 15A
- 1 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG21G0015TFFL
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG21G0015TFFL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG21G0015TFFL - 15A 1 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer PDG21G0015TFFL - 15A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG2 |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 125VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Enclosures, Panelboards |
| Wire Gauge | 14-4 AWG (Al/Cu) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Bell Alarm, Shunt Trip, Undervoltage Release, Handle Mechanism |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, Current Limiting, RoHS Compliant |
Quantity
Eaton / Cutler-Hammer PDG21G0015TFFL - 15A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG2 |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 125VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Enclosures, Panelboards |
| Wire Gauge | 14-4 AWG (Al/Cu) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Bell Alarm, Shunt Trip, Undervoltage Release, Handle Mechanism |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, Current Limiting, RoHS Compliant |
Similar Items
Eaton / Cutler-HammerPDG21M0015TFFL
15A 1 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG21G0020TFFJ
20A 1 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG21G0020TFFL
20A 1 Pole Molded Case Circuit Breaker
Description
Offering advanced current-limiting capabilities, the Eaton PDG21G0015TFFL is a 1-pole, 15A molded case circuit breaker from the Power Defense Frame 2 lineup. It ensures dependable long-time and instantaneous (LI) protection for commercial and marine systems. This breaker fits into Eaton panelboards and enclosures, providing an exact replacement for legacy FD1015 models. It delivers a 35 kAIC interrupt rating at 480VAC and comes equipped with standard load-side lugs.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG2 |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 125VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Enclosures, Panelboards |
| Wire Gauge | 14-4 AWG (Al/Cu) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Bell Alarm, Shunt Trip, Undervoltage Release, Handle Mechanism |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, Current Limiting, RoHS Compliant |
Product FAQs
6 answersWhat enclosures and panelboards are compatible with the PDG21G0015TFFL?
This breaker is designed for installation in Eaton Power Defense enclosures and compatible panelboards that accept Frame 2 bolt-on molded case circuit breakers.

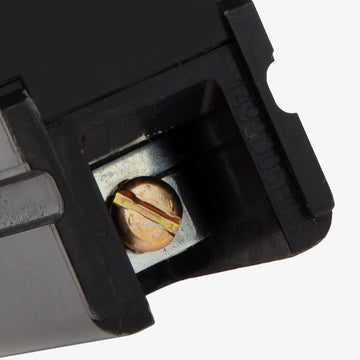

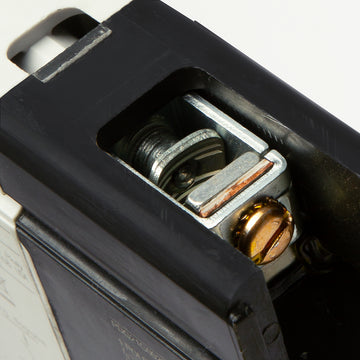

What wire sizes do the factory lugs accommodate?
The standard lugs on this breaker accept wire sizes ranging from 14 AWG to 4 AWG. They are dual-rated for terminating both aluminum and copper conductors.
Does the PDG21G0015TFFL replace any legacy Cutler-Hammer breakers?
Yes, the Power Defense Frame 2 line is the modern upgrade for legacy Eaton and Cutler-Hammer F-Frame circuit breakers. This specific 15-amp, 1-pole model serves as a direct physical and functional replacement for the legacy FD1015 breaker.
Can I adjust the trip curve parameters on this breaker?
No, this breaker is equipped with a thermal magnetic trip unit featuring fixed thermal and fixed magnetic settings. It provides reliable long-time and instantaneous (LI) protection but cannot be adjusted in the field.
How does this breaker physically mount to the electrical panel?
This model features a bolt-on connection type. It requires a secure, bolted mechanical connection to the panelboard busbars rather than a friction-fit plug-on or DIN rail mounting method.
Does this unit provide ground fault or arc fault protection?
No, this breaker utilizes a standard thermal magnetic trip unit for overcurrent and short-circuit protection only. It does not include integrated equipment ground fault (GFPE) or arc fault (AFCI) monitoring functions.
