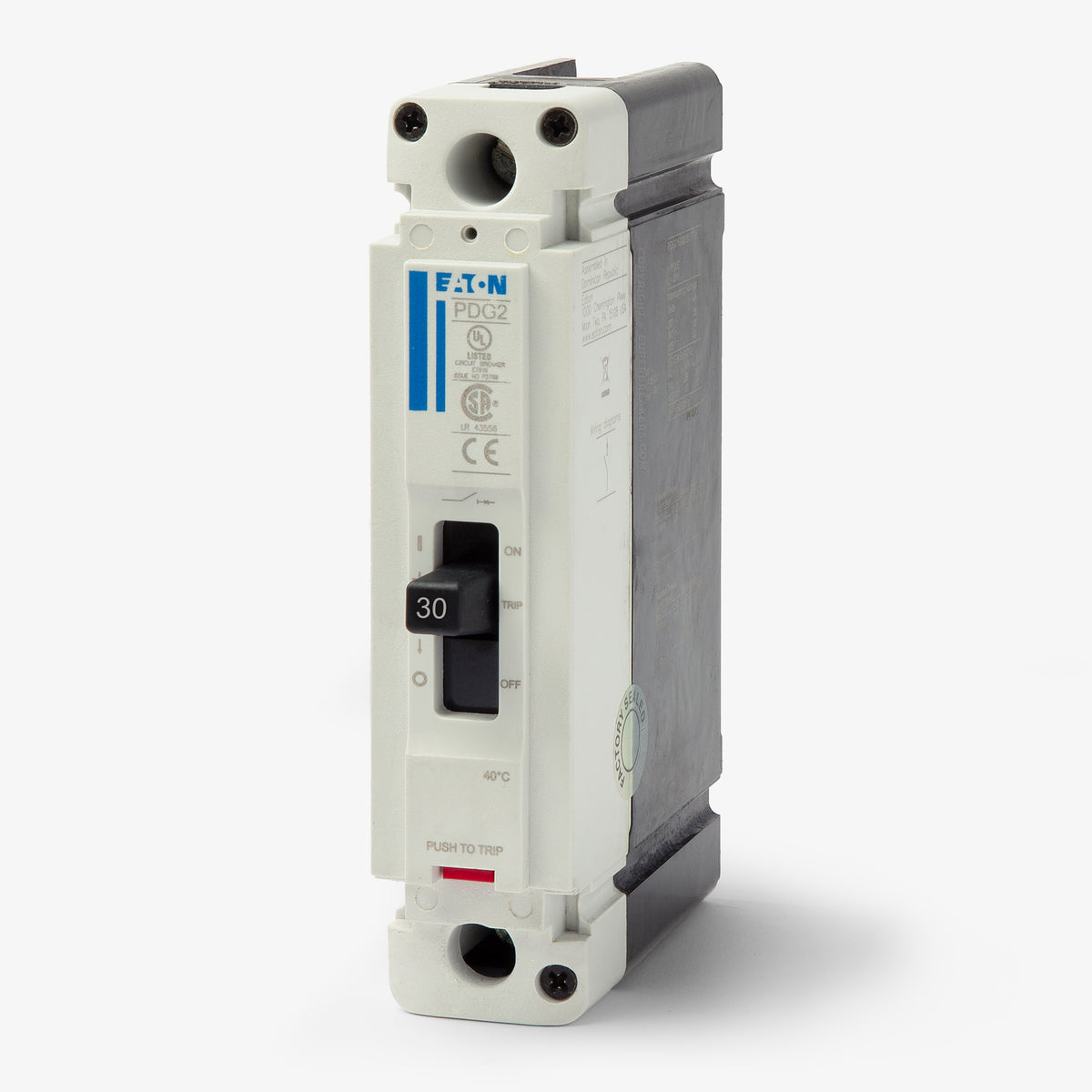

Eaton / Cutler-Hammer PDG21M0030TFFL Molded Case Circuit Breaker
- 30A
- 1 Pole
- Panel Mount
Quantity
Eaton / Cutler-Hammer PDG21M0030TFFL - 30A 1 Pole Molded Case Circuit Breaker
New
Quantity
Description
Delivering reliable performance for commercial and industrial facilities, this 30A Eaton Power Defense MCCB provides essential overcurrent protection. The Frame 2, 1-pole breaker is engineered to meet rigorous global standards. Designed for panel mount applications, it fits into Eaton Power Defense panelboards and enclosures. This model is an excellent replacement for discontinued EGH1030FFB and HFD1030 breakers. It features fixed thermal-magnetic trip (LI) and is rated 100kAIC at 240VAC.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG2 |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 35kA @ 600VAC, 22kA @ 125VDC |
| Frame Type | PDG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures |
| Wire Gauge | 14 AWG - 1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Bell Alarm, Shunt Trip, Undervoltage Release, Padlock Attachment, Motor Operator, Rotary Handle, Terminal Shields, DIN Rail Adapter |
|---|---|
| Accessories | Load Side Lugs Included (PDG2X1T100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, RoHS Compliant, Global Ratings |
Product FAQs
5 answersWhich panelboards are compatible with the PDG21M0030TFFL?
This Frame 2 breaker is designed specifically for Eaton Power Defense panelboards, switchboards, and enclosures.

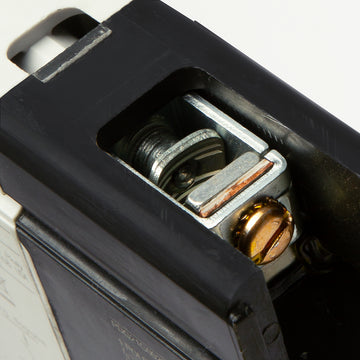

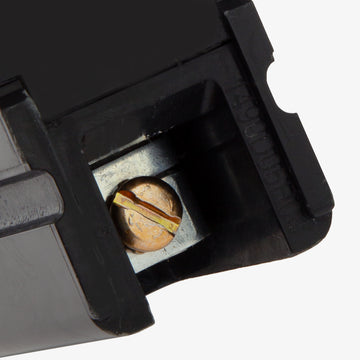

What wire sizes are supported by the standard lugs on the PDG21M0030TFFL?
The included standard terminals accept 14 AWG through 1/0 AWG wire and are rated for both aluminum and copper conductors.
What interrupting capacity does the M in PDG21M0030TFFL represent?
In the Eaton Power Defense nomenclature, the M indicates a high interrupting rating, delivering 65kAIC at 480VAC and 100kAIC at 240VAC.
Can the PDG21M0030TFFL be used in DC applications?
Yes, this thermal-magnetic breaker is rated for 125VDC applications with an interrupting capacity of 22kAIC.
How does the trip unit function on the PDG21M0030TFFL?
It utilizes a thermal-magnetic trip unit with fixed thermal and fixed magnetic settings, providing long-time and instantaneous (LI) overcurrent protection.
