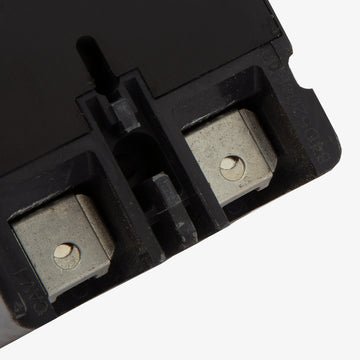

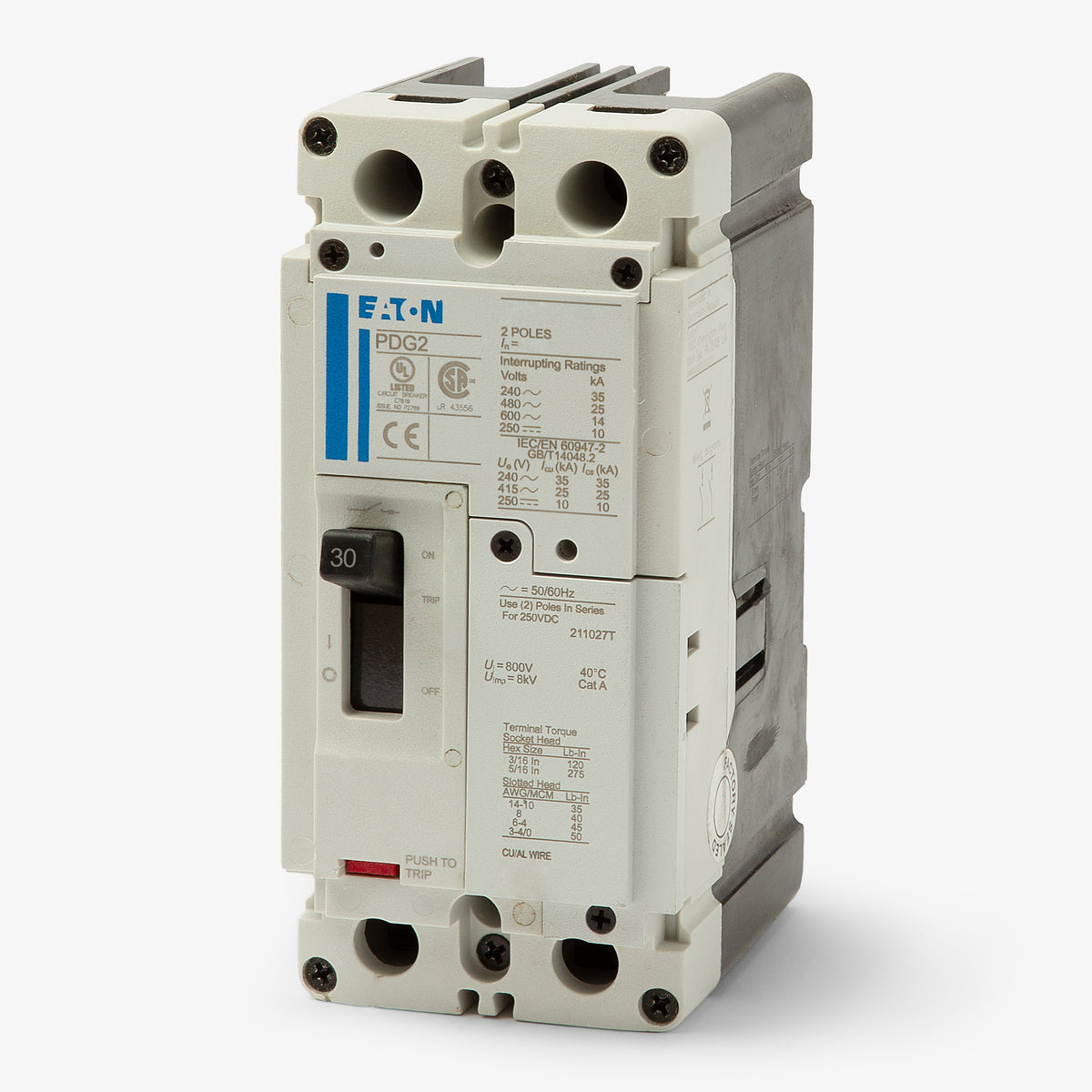

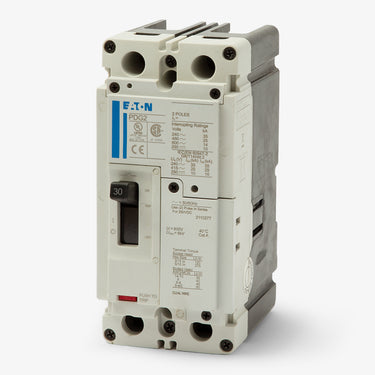

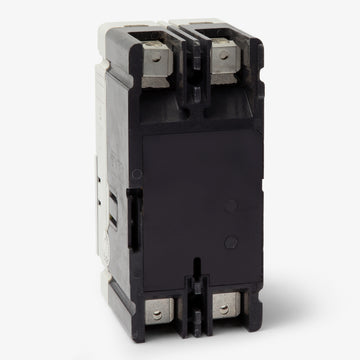

Eaton / Cutler-Hammer PDG22F0030TFFJ Molded Case Circuit Breaker
- 30A
- 2 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG22F0030TFFJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG22F0030TFFJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG22F0030TFFJ - 30A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG22G0030TFFJ
30A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG22G0030TFFL
30A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG22M0030TFFJ
30A 2 Pole Molded Case Circuit Breaker
Description
Engineered for commercial applications, the Eaton PDG22F0030TFFJ is a 2-pole, 30A MCCB from the Power Defense family. It provides dependable long-time and instantaneous (LI) protection. This Frame 2 breaker installs into Eaton panelboards and enclosures. It includes line and load lugs and replaces legacy EGE2030FFG and FDB2030 models. Rated 35kAIC at 240V, it features fixed thermal and magnetic trip settings. The unit is HACR rated and RoHS compliant.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | PDG22F0030TFFJ |
| Series | PDG2 |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 35kA @ 240VAC, 25kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | PDG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures |
| Wire Gauge | 14 AWG - 1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Bell Alarm, Shunt Trip, Undervoltage Release |
|---|---|
| Accessories | Standard Line and Load Terminals |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | RoHS Compliant |
Product FAQs
6 answersCan the PDG22F0030TFFJ be used to replace older Eaton or Cutler-Hammer circuit breakers?
Yes, this Power Defense Frame 2 breaker is a direct replacement for legacy EGE2030FFG and FDB2030 models.
What does the TFFJ suffix in the catalog number indicate?
In the Eaton Power Defense nomenclature, 'TFF' indicates a thermal-magnetic trip unit with fixed thermal and fixed magnetic settings, while 'J' specifies that the breaker includes standard line and load lugs.

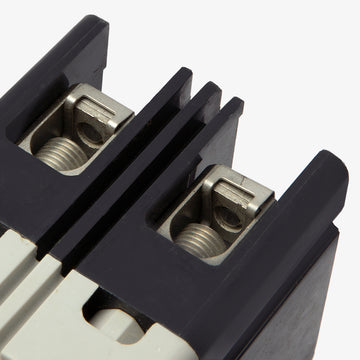

Does the PDG22F0030TFFJ include lugs, and what wire types do they accept?
Yes, this breaker comes with standard line and load lugs that accept both aluminum (Al) and copper (Cu) conductors ranging from 14 AWG to 1/0 AWG.
What type of equipment is the PDG22F0030TFFJ designed to be installed in?
This Frame 2 breaker is designed for panel mounting in Eaton Power Defense panelboards, switchboards, and enclosures.
Is the PDG22F0030TFFJ suitable for heating, air conditioning, and refrigeration applications?
Yes, this breaker is HACR rated, making it suitable for protecting heating, air conditioning, and refrigeration equipment circuits.
Are the trip settings on the PDG22F0030TFFJ adjustable?
No, this breaker features a thermal-magnetic trip unit with fixed thermal (long-time) and fixed magnetic (instantaneous) settings, meaning the trip curve cannot be adjusted in the field.
