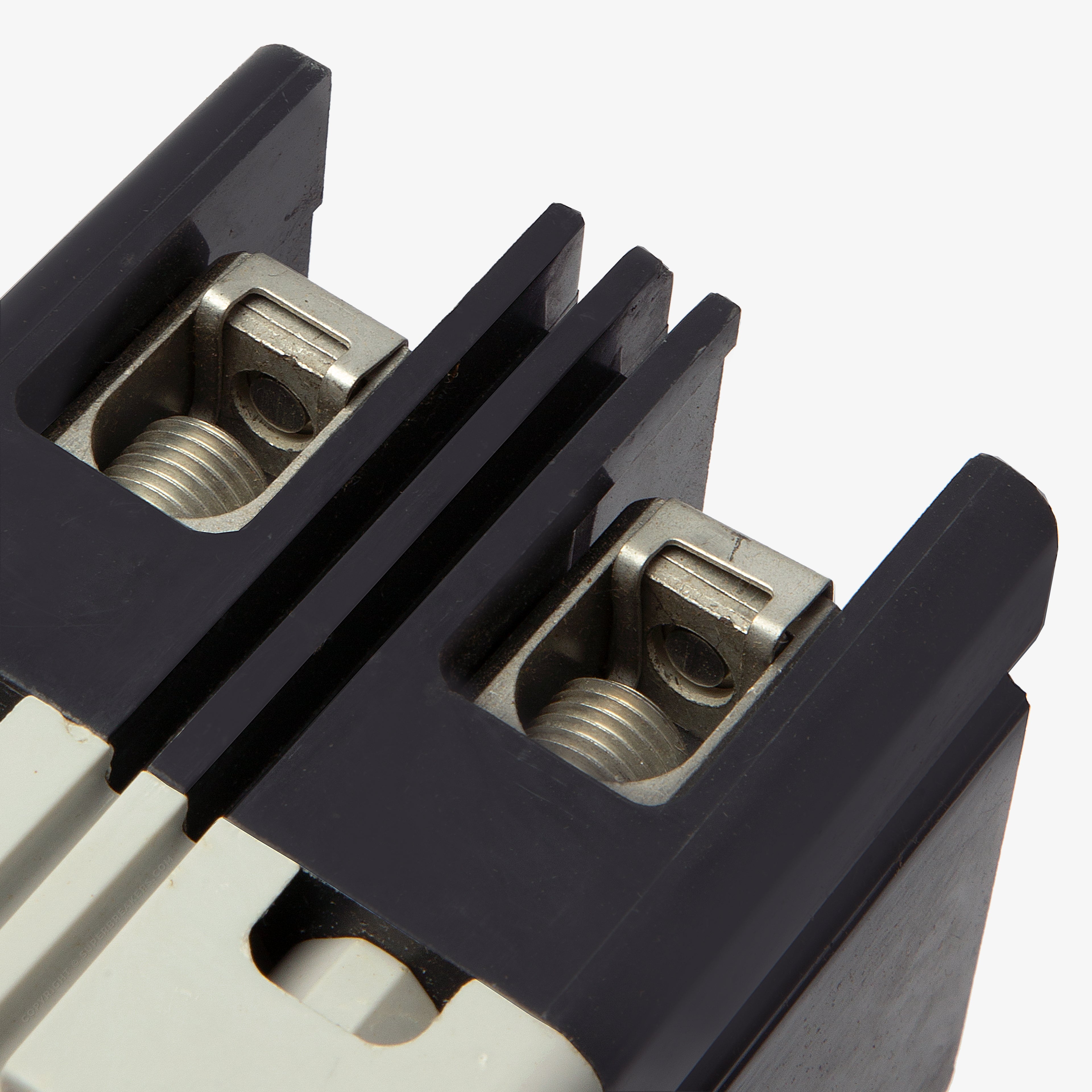

Eaton / Cutler-Hammer PDG22F0040TFFL Molded Case Circuit Breaker
- 40A
- 2 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG22F0040TFFL
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG22F0040TFFL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG22F0040TFFL - 40A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG22G0040TFFJ
40A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG22G0040TFFL
40A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG22M0040TFFJ
40A 2 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, the PDG22F0040TFFL is a 2-pole, 40A molded case circuit breaker from Eaton's Power Defense family. It provides reliable long-time and instantaneous (LI) protection. This Frame 2 MCCB mounts into Eaton panelboards, serving as a replacement for discontinued EHD2040 and FDB2040 breakers. It includes standard load-side lugs. Rated 25 kAIC at 480VAC, the unit features a fixed thermal-magnetic trip mechanism and is HACR rated.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG2 |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 35kA @ 240VAC, 25kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | PDG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures |
| Wire Gauge | 14-1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle, DIN Rail Adapter, Terminal Shields |
|---|---|
| Accessories | Load Side Terminals |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, RoHS Compliant |
Product FAQs
5 answersCan the PDG22F0040TFFL be used to replace older Eaton Series C circuit breakers?
Yes, this Power Defense Frame 2 breaker is the direct replacement for discontinued 40A, 2-pole Series C F-Frame breakers, including catalog numbers EHD2040 and FDB2040. It mounts into the same panelboards and switchboards.
What types of enclosures and panels are compatible with this breaker?
The PDG22F0040TFFL is designed for bolt-on installation in Eaton Power Defense panelboards, commercial switchboards, and compatible industrial enclosures.
When wiring the PDG22F0040TFFL, what conductor sizes and materials are permitted by the factory lugs?
The standard factory lugs accommodate wire sizes from 14 AWG through 1/0 AWG. You can safely terminate either copper or aluminum conductors.
What does the F in the PDG22F0040TFFL catalog number signify?
In the Eaton Power Defense nomenclature, the F indicates the breaker interrupting capacity. For this Frame 2 model, it signifies a 25kAIC rating at 480VAC.
Are the trip settings adjustable on the PDG22F0040TFFL?
No, this specific model features a fixed thermal and fixed magnetic trip unit. It provides standard long-time and instantaneous (LI) protection without field adjustability.
