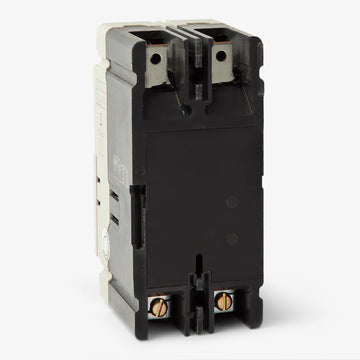

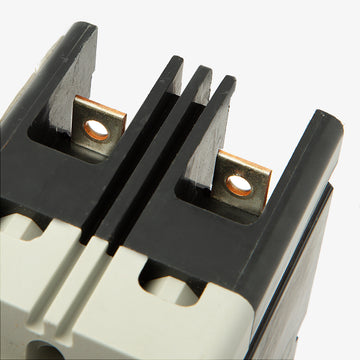

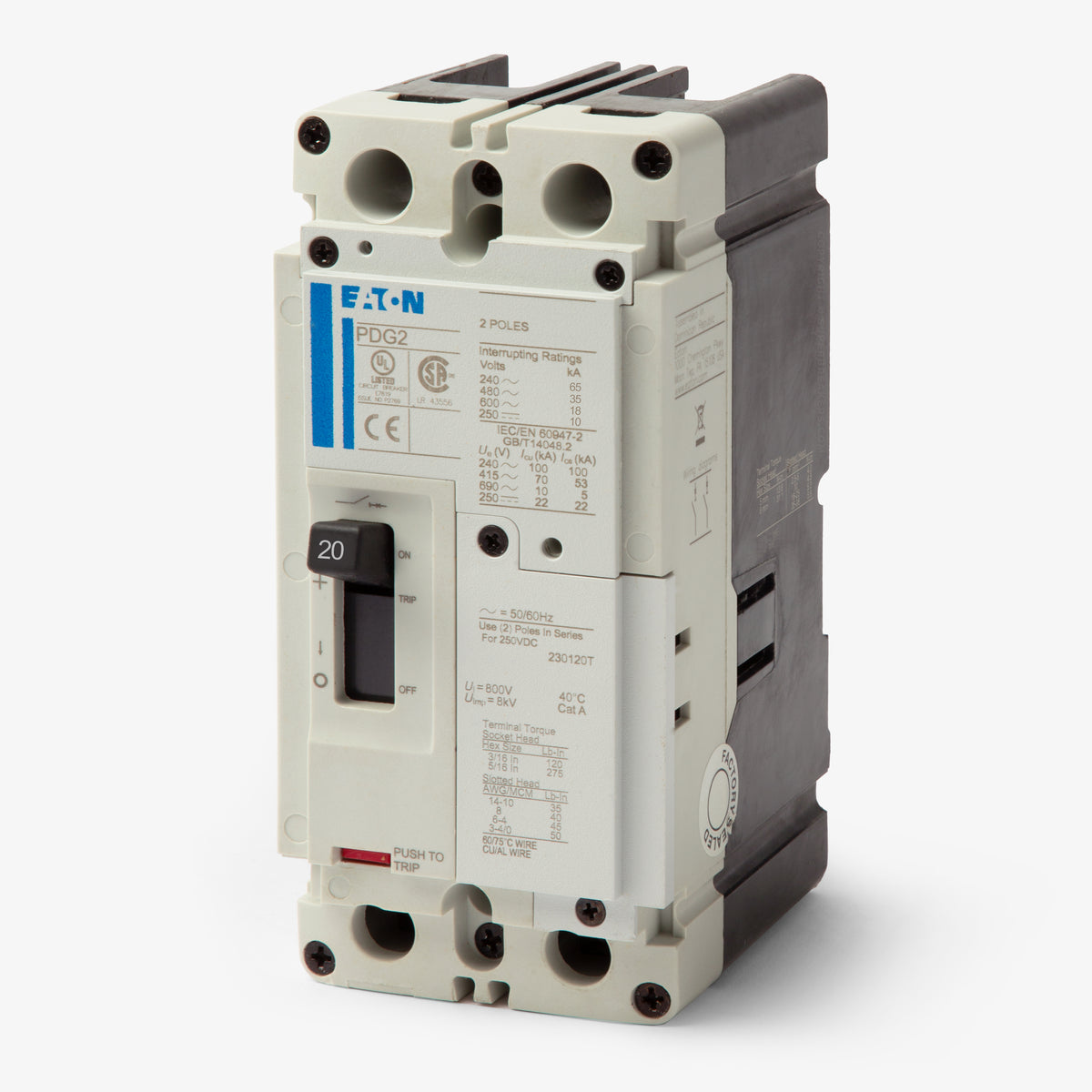

Eaton / Cutler-Hammer PDG22G0020TFFL Molded Case Circuit Breaker
- 20A
- 2 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG22G0020TFFL
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG22G0020TFFL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG22G0020TFFL - 20A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG22M0020TFFJ
20A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG22M0020TFFL
20A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG22G0025TFFL
25A 2 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial use, the Eaton PDG22G0020TFFL is a 2-pole, 20A molded case circuit breaker from the Power Defense family. It provides robust long-time and instantaneous (LI) protection. This Frame 2 breaker installs into Eaton Power Defense panelboards and enclosures. It replaces legacy EGE2020FFG and FD2020 models, featuring standard load-side lugs. With a fixed thermal-magnetic trip, it delivers 35kAIC at 480VAC and meets global UL, CSA, and IEC standards.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG2 |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures |
| Wire Gauge | 14-1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment, Terminal Shields |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | RoHS Compliant |
Product FAQs
6 answersWhat is the part number for the standard lugs included with the PDG22G0020TFFL?

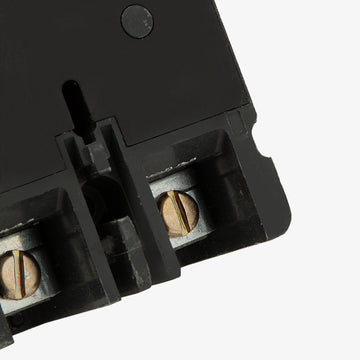

This breaker comes equipped with standard steel box terminals, part number PDG2X2T100, which accept 14 AWG to 1/0 AWG aluminum or copper wire.
How is the PDG22G0020TFFL mounted?
It is a bolt-on, panel-mount circuit breaker. It can also be DIN rail mounted using a compatible Eaton DIN rail adapter (sold separately).
Which legacy Eaton breakers does the PDG22G0020TFFL replace?
This Power Defense Frame 2 breaker serves as a direct drop-in replacement for discontinued Series C FD2020 and Series G EGS2020FFG circuit breakers.
Is the PDG22G0020TFFL suitable for HVAC applications?
Yes, this breaker is HACR rated, making it suitable for heating, air conditioning, and refrigeration equipment.
Can the PDG22G0020TFFL be reverse fed?
Yes, Power Defense Frame 2 circuit breakers are suitable for reverse-feed applications and are shipped without specific line or load markings.
What is the maximum amperage capacity of the Eaton Power Defense Frame 2 series?
The Power Defense Frame 2 series supports continuous current ratings up to 225 amps.
