Eaton / Cutler-Hammer PDG22G0040TFFL Molded Case Circuit Breaker
- 40A
- 2 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG22G0040TFFL
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG22G0040TFFL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG22G0040TFFL - 40A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer PDG22G0040TFFL - 40A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG2 |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures |
| Wire Gauge | 14 AWG - 1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment, Motor Operator, Rotary Handle, DIN Rail Adapter |
|---|---|
| Accessories | Load Side Terminals (PDG2X2T100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, RoHS Compliant |
Sold out
Quantity
Eaton / Cutler-Hammer PDG22G0040TFFL - 40A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG2 |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures |
| Wire Gauge | 14 AWG - 1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment, Motor Operator, Rotary Handle, DIN Rail Adapter |
|---|---|
| Accessories | Load Side Terminals (PDG2X2T100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, RoHS Compliant |
Similar Items
Eaton / Cutler-HammerPDG22M0040TFFJ
40A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG22M0040TFFL
40A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG22G0050TFFJ
50A 2 Pole Molded Case Circuit Breaker
Description

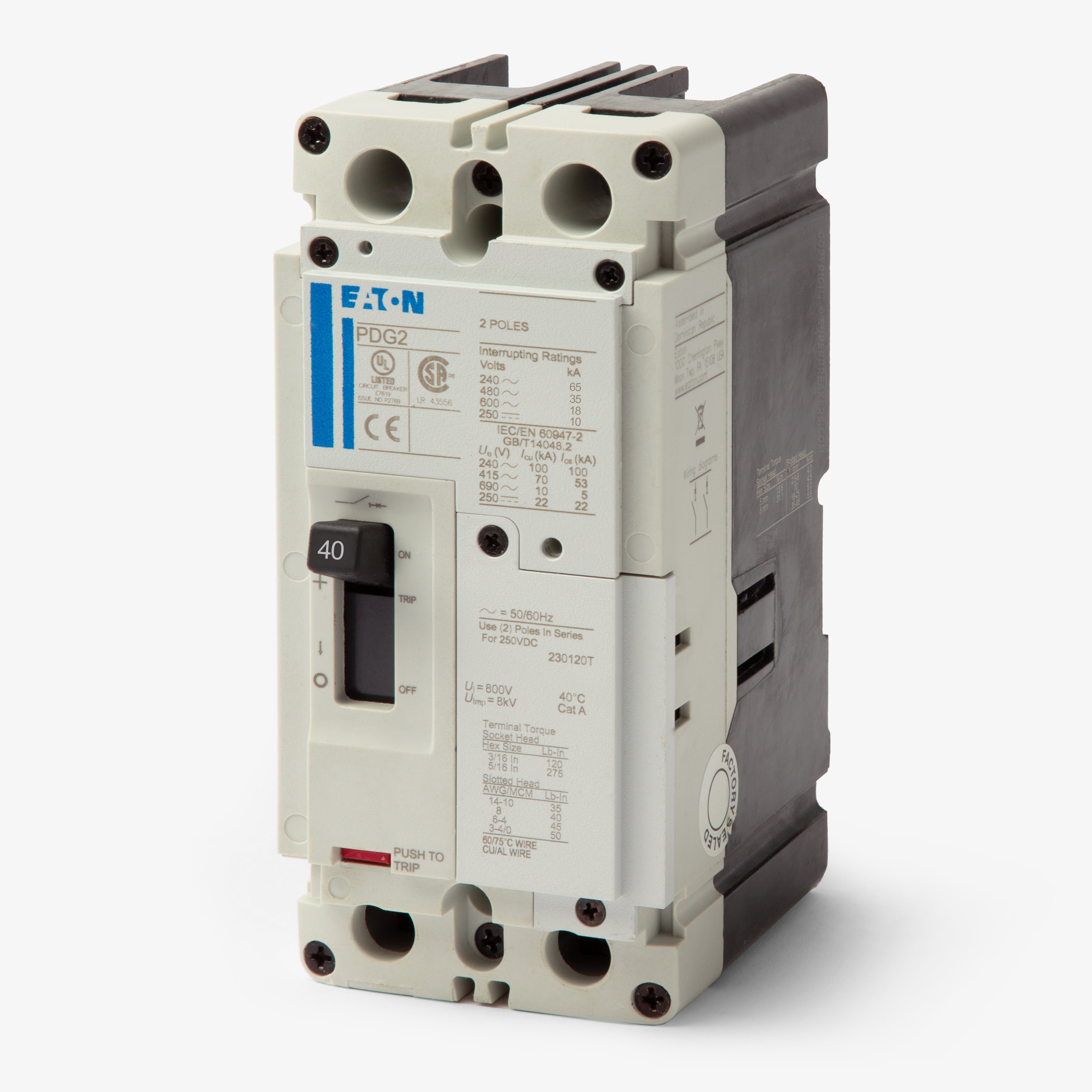

Engineered for commercial and industrial applications, the Eaton PDG22G0040TFFL provides robust overcurrent defense in a compact Frame 2 footprint. This 2-pole, 40A molded case circuit breaker installs into Power Defense panelboards and serves as a drop-in upgrade for older Series C FD2040 breakers. Rated at 65 kAIC at 240VAC and 35 kAIC at 480VAC, it features a fixed thermal-magnetic trip unit (LI) and comes equipped with standard load-side lugs for secure wire terminations.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG2 |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures |
| Wire Gauge | 14 AWG - 1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment, Motor Operator, Rotary Handle, DIN Rail Adapter |
|---|---|
| Accessories | Load Side Terminals (PDG2X2T100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, RoHS Compliant |
Product FAQs
6 answersWhich panelboards and switchboards are compatible with the PDG22G0040TFFL?
This breaker is designed for use in Eaton Power Defense panelboards, switchboards, and compatible enclosures.
What wire sizes are accepted by the standard lugs on this Power Defense breaker?

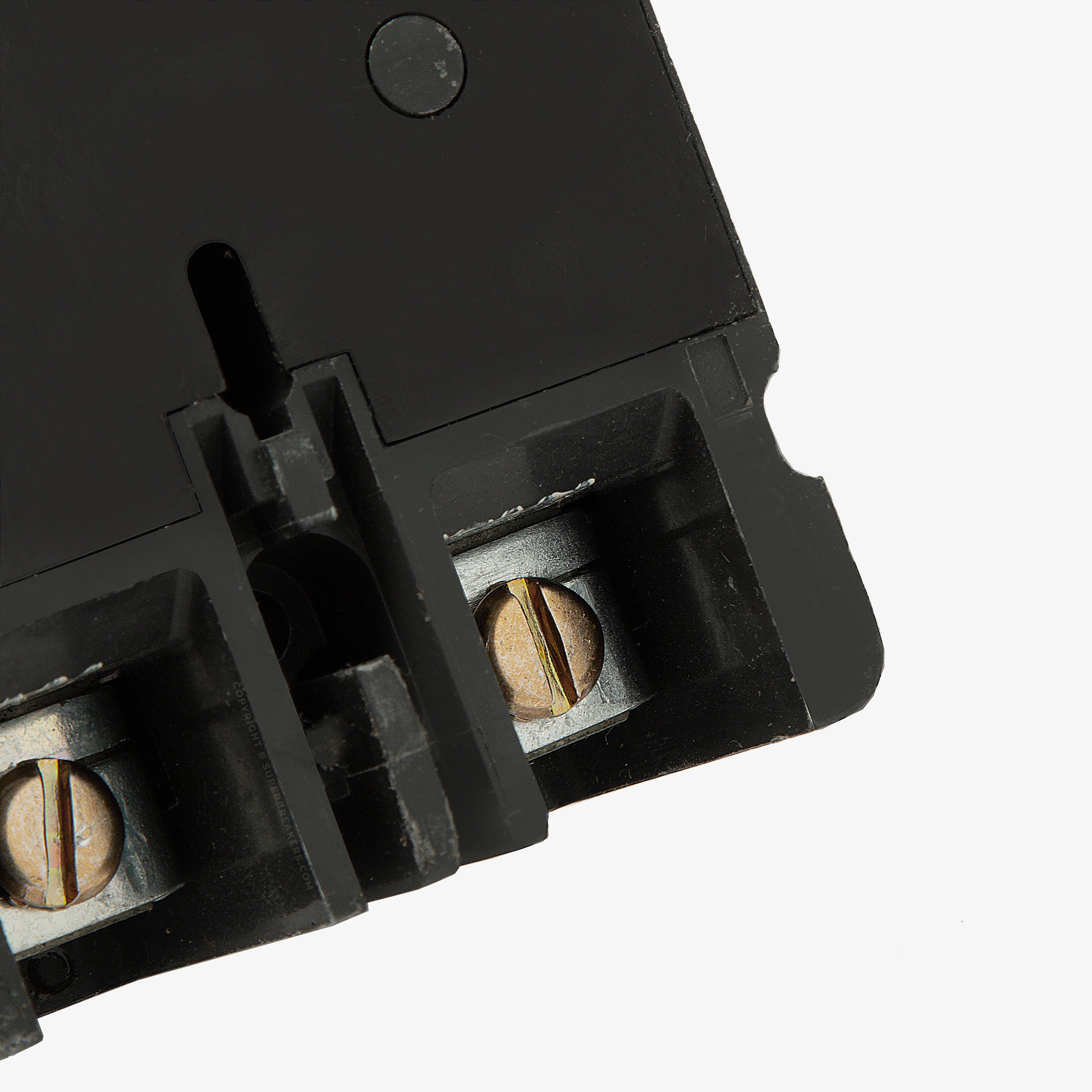

The factory-installed lugs accept 14 AWG through 1/0 AWG aluminum or copper conductors.
Is the PDG22G0040TFFL suitable for direct current applications?
Yes, it is rated for use in DC systems up to 250VDC, providing a 10kA interrupting capacity.
Does this breaker feature adjustable trip settings?
No, this model features a thermal-magnetic trip unit with fixed thermal and fixed magnetic settings for long-time and instantaneous protection.
How does the PDG22G0040TFFL connect to the busbar?

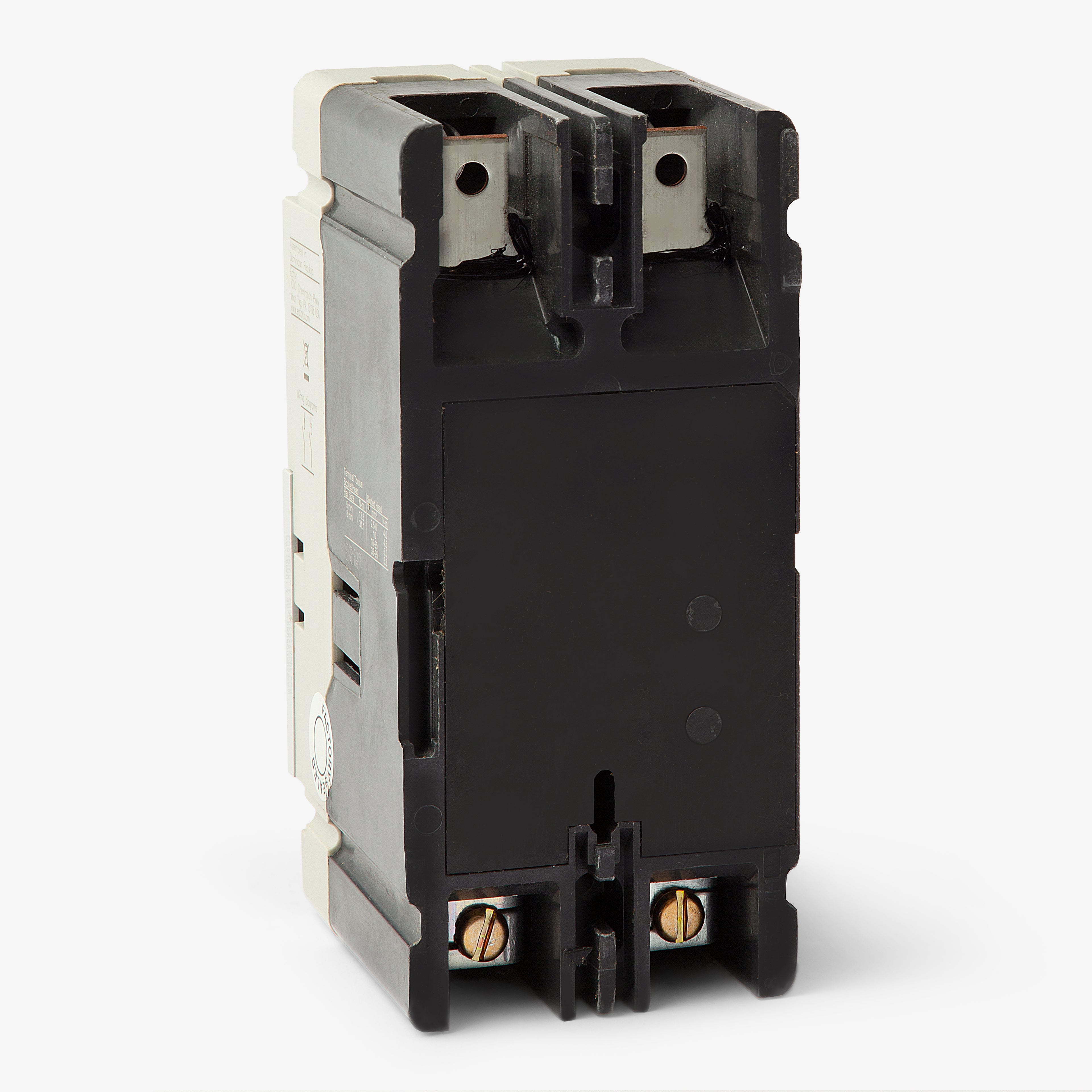

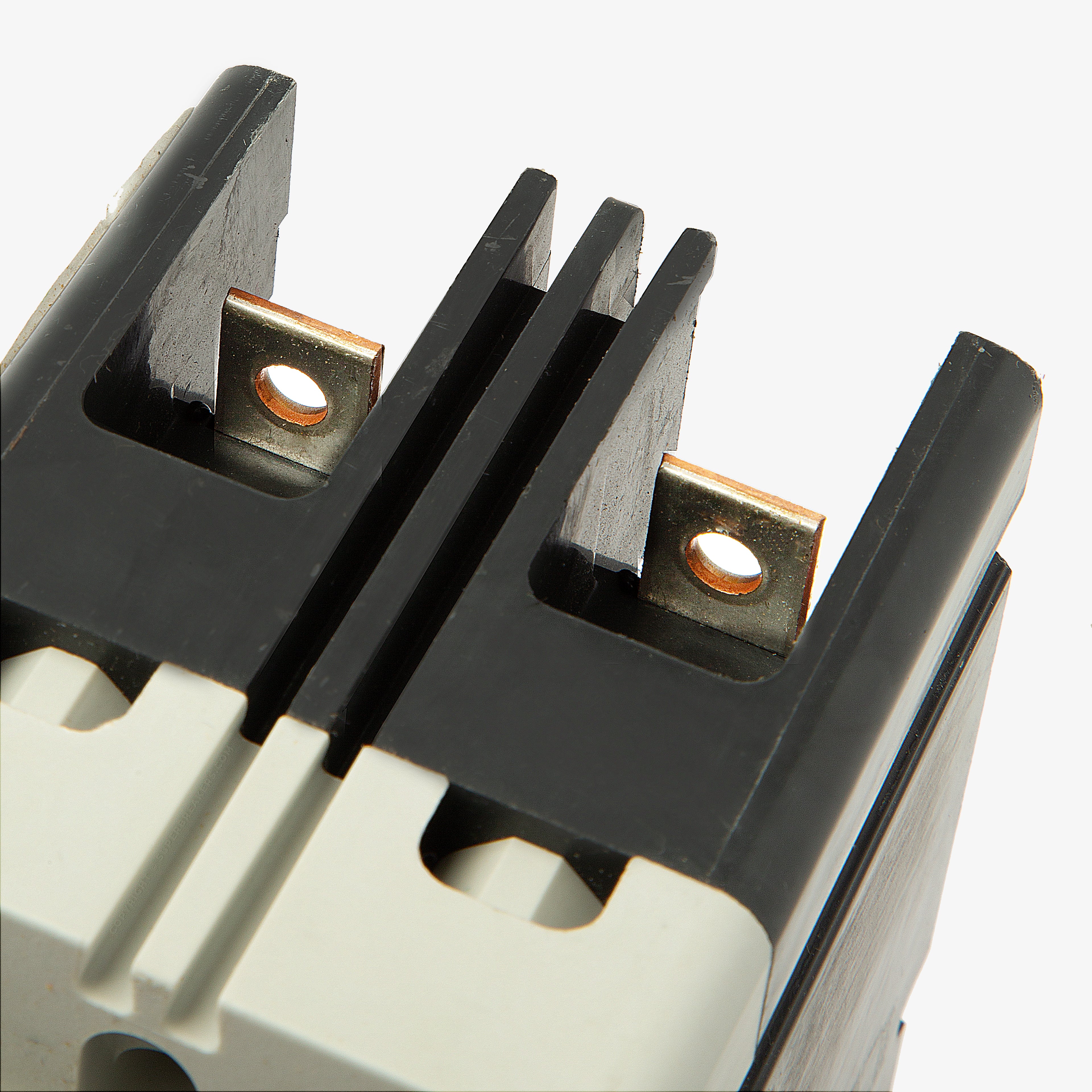

It utilizes a bolt-on connection type for secure panel mounting in Power Defense distribution equipment.
What type of overcurrent protection does the LI trip function provide?
The LI designation indicates it provides long-time overload protection and instantaneous short-circuit protection.
