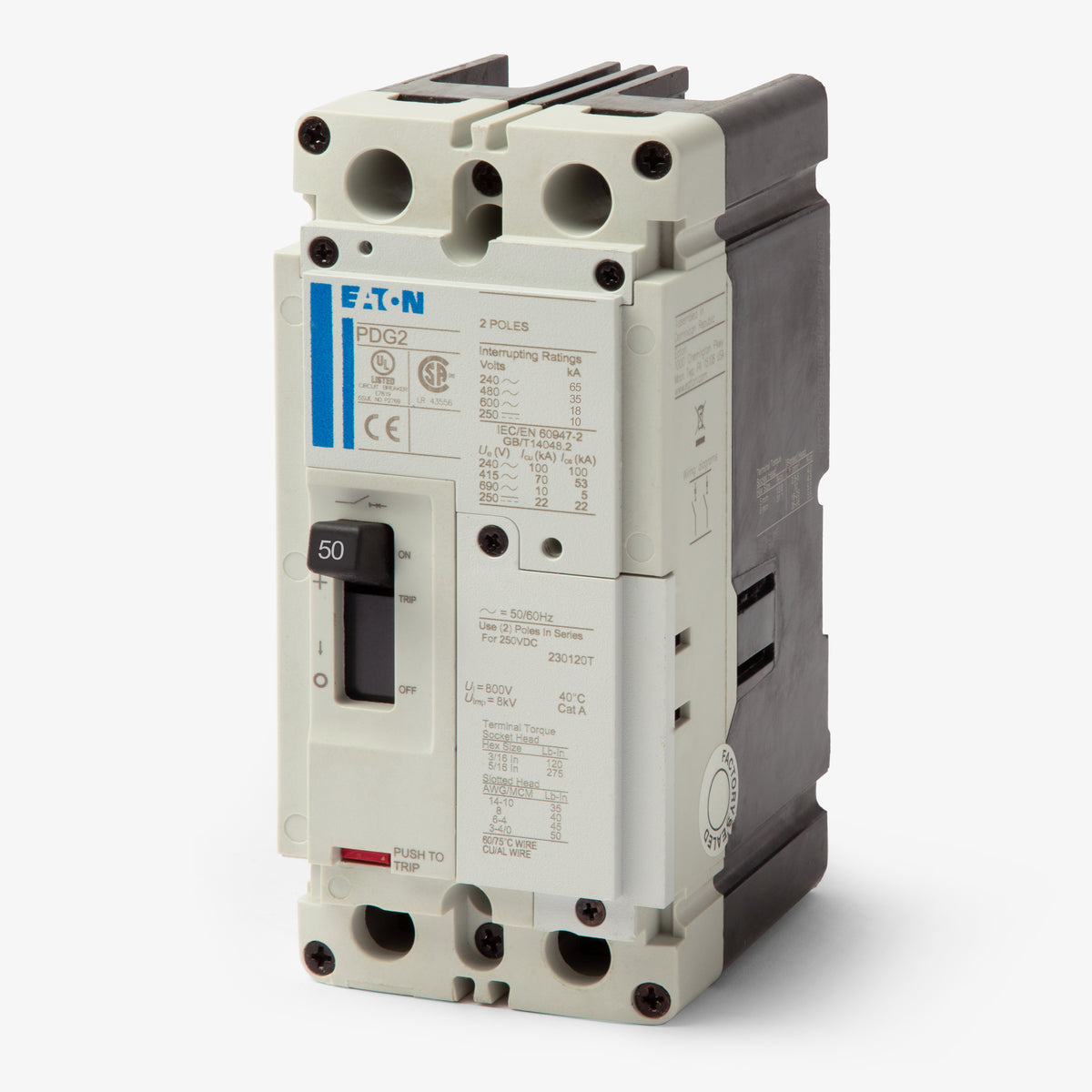

Eaton / Cutler-Hammer PDG22G0050TFFL Molded Case Circuit Breaker
- 50A
- 2 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG22G0050TFFL
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG22G0050TFFL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

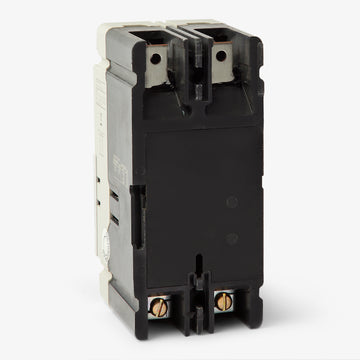

Eaton / Cutler-Hammer PDG22G0050TFFL - 50A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG22G0030TFFL
30A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG22G0070TFFL
70A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG22G0100TFFL
100A 2 Pole Molded Case Circuit Breaker
Description
A versatile solution for industrial facilities, the Eaton PDG22G0050TFFL is a 2-pole, 50A molded case circuit breaker. It offers dependable fixed thermal and fixed magnetic (LI) trip functions. This panel-mount MCCB is compatible with Eaton Series C F-Frame panelboards. It provides an exact cross-reference for replacing legacy HFD2050 and EGS2050FFG breakers, ensuring backward compatibility. Rated for 35kAIC at 480VAC, the breaker includes load-side lugs and carries a global rating.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG2 |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|

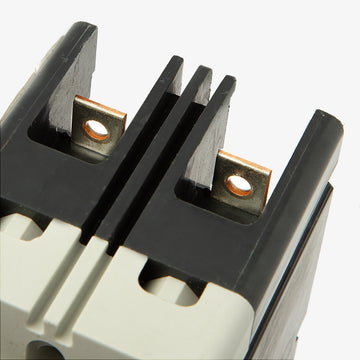

| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures, Series C F-Frame Panelboards |
| Wire Gauge | 14-1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|

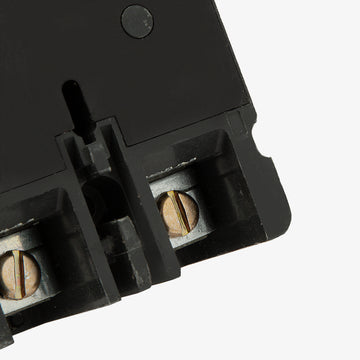

| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, RoHS Compliant |
Product FAQs
5 answersWhat panelboards accept the PDG22G0050TFFL?
It is designed for Eaton Power Defense panelboards, switchboards, and enclosures. Because Frame 2 shares the same footprint as legacy models, it is also backward compatible with Series C F-Frame panelboards.
Can this Power Defense breaker replace older Series C models?
Yes, Power Defense Frame 2 breakers are direct physical replacements for legacy Eaton and Cutler-Hammer Series C F-Frame breakers, including FD, FDB, and HFD models. They share identical mounting dimensions.
Does the PDG22G0050TFFL offer adjustable trip settings?
No, this breaker is equipped with a fixed thermal and fixed magnetic trip unit. If your application requires adjustable long-time or instantaneous pickup settings, you will need a model with an electronic trip unit.
What do the letters TFFL mean in the catalog number?
In the Eaton Power Defense nomenclature, TFFL indicates the breaker has a Thermal Magnetic trip unit (T), with Fixed thermal (F) and Fixed magnetic (F) settings, and comes with standard factory-installed Lugs (L).
What does the G stand for in the PDG2 series?
The G in PDG2 denotes a Global product line. These breakers are designed and tested to meet multiple international standards, including UL, CSA, and IEC requirements.
