Eaton / Cutler-Hammer PDG22M0015TFFJ Molded Case Circuit Breaker
- 15A
- 2 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG22M0015TFFJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG22M0015TFFJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

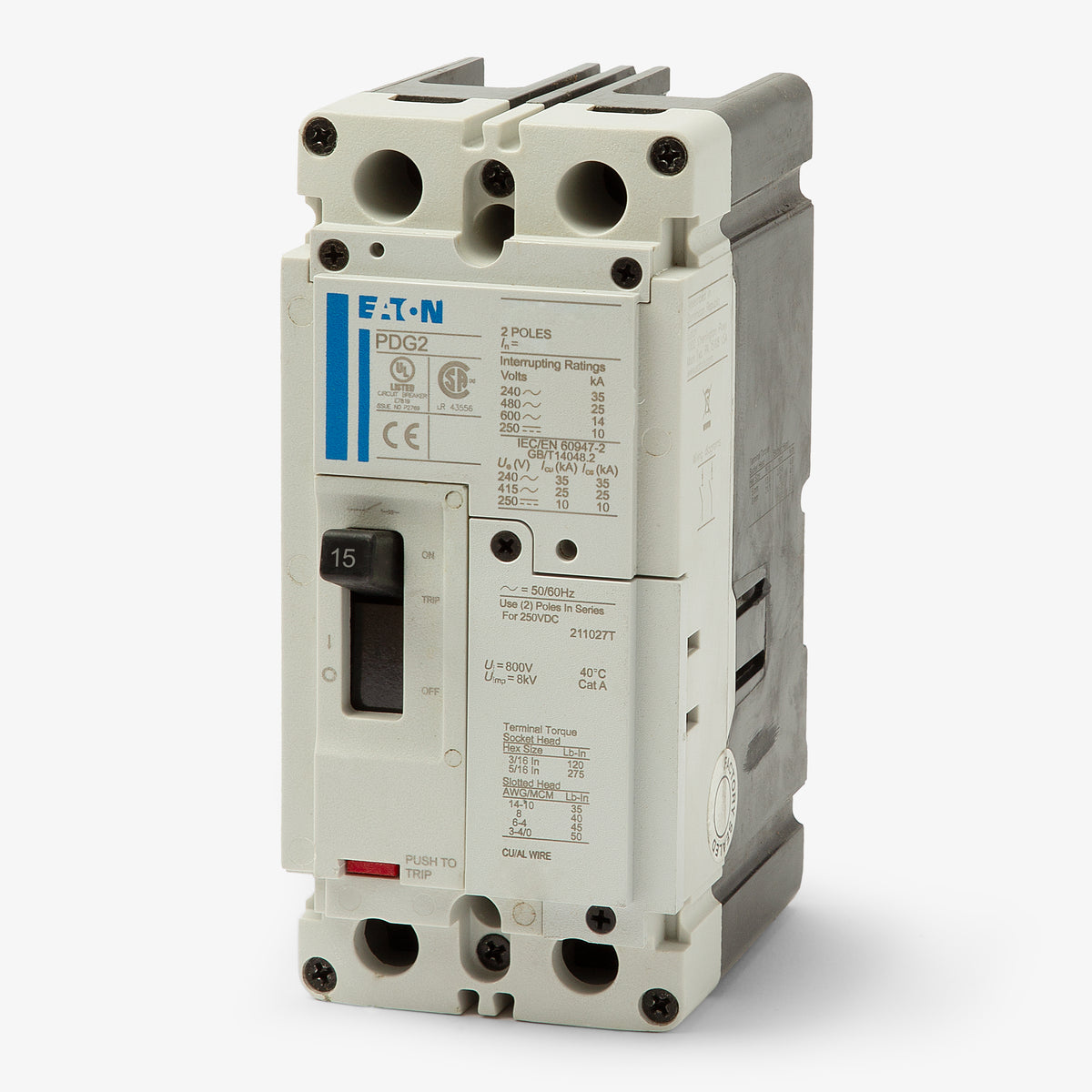

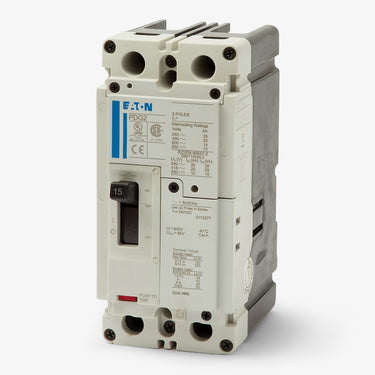

Eaton / Cutler-Hammer PDG22M0015TFFJ - 15A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG22M0020TFFL
20A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG22M0020TFFJ
20A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG22M0025TFFL
25A 2 Pole Molded Case Circuit Breaker
Description
A high-performance solution for industrial systems, this 15A molded case circuit breaker is part of the Eaton Power Defense Frame 2 series. It provides reliable fixed thermal and magnetic (LI) trip functions for demanding 240V to 600V applications. The unit installs into compatible Eaton panelboards and enclosures, replacing legacy HFD2015 and EGH2015FFG models. It features standard line and load terminals alongside a powerful 65kAIC rating at 480V for superior fault current limitation.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | PDG22M0015TFFJ |
| Series | PDG2 |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures |
| Wire Gauge | 14 AWG - 1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle, DIN Rail Adapter, Terminal Shields |
|---|---|
| Accessories | Standard Line and Load Terminals |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, RoHS Compliant |
Product FAQs
6 answersWhat enclosures and panels are compatible with the PDG22M0015TFFJ?
This Frame 2 breaker is designed for use in Eaton Power Defense panelboards, switchboards, and compatible enclosures.
What does the M in the catalog number PDG22M0015TFFJ indicate?
The M indicates the breaker's interrupting capacity tier, which is rated at 65kAIC at 480VAC.
What does TFF stand for in the PDG22M0015TFFJ part number?
TFF signifies that the breaker is equipped with a thermal-magnetic trip unit featuring fixed thermal and fixed magnetic trip settings.
Can the Eaton PDG22M0015TFFJ be reverse fed?
Yes, Eaton Power Defense Frame 2 molded case circuit breakers with thermal-magnetic trip units can be reverse fed.

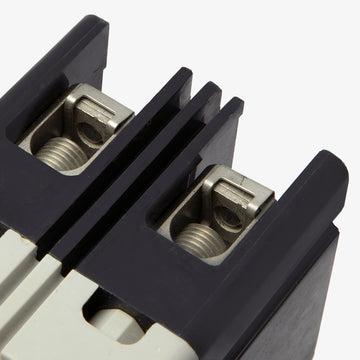

What wire sizes do the standard lugs on this breaker accept?
The standard lugs accept wire gauges from 14 AWG up to 1/0 AWG. Ensure proper torque specifications are followed during installation.
Can the PDG22M0015TFFJ replace older Eaton Series C breakers?
Yes, the Power Defense Frame 2 (PDG2) series is the direct, modernized replacement for legacy Eaton Series C F-Frame breakers, such as the FD and HFD series. Note that updated mounting hardware may be required when retrofitting.
