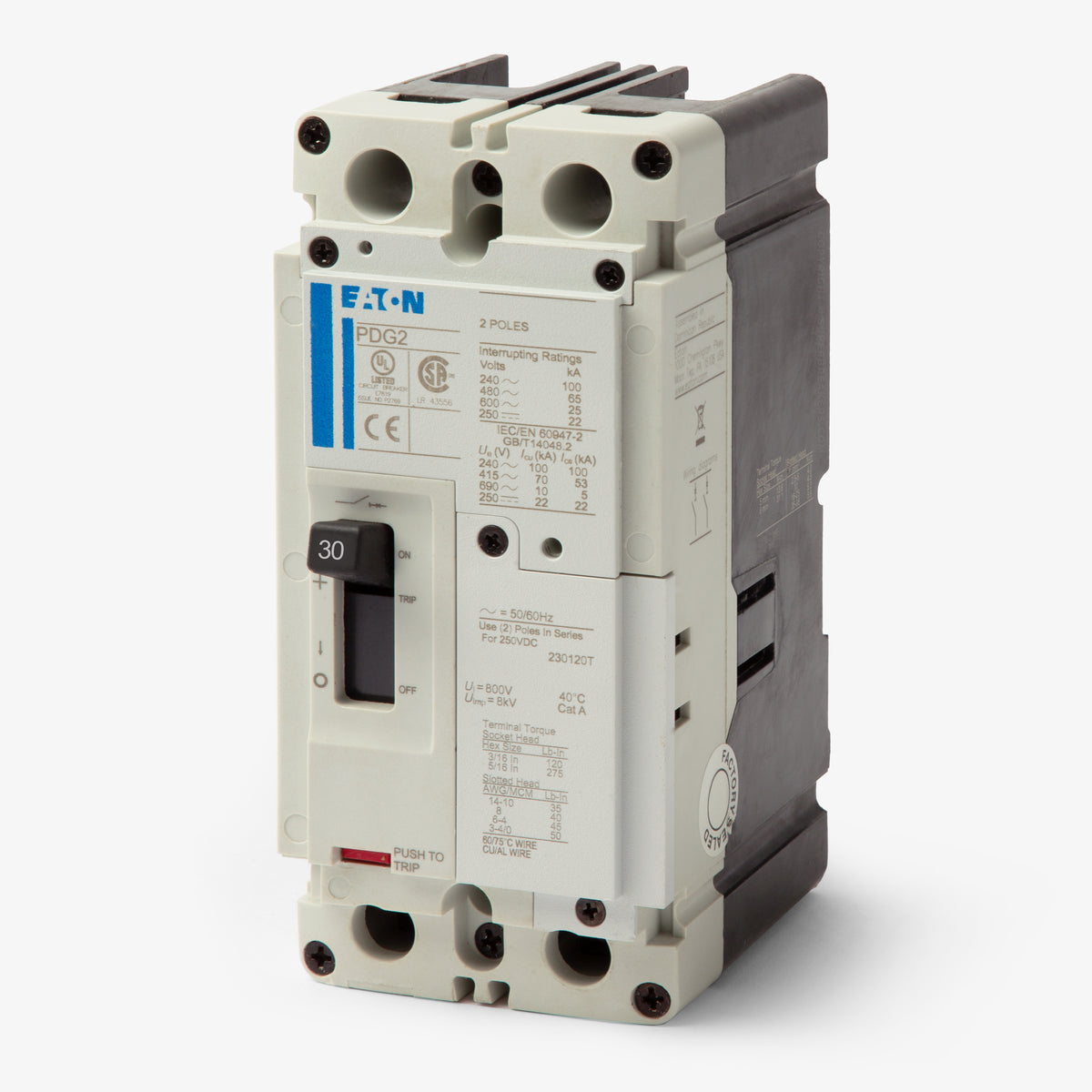

Eaton / Cutler-Hammer PDG22M0030TFFL Molded Case Circuit Breaker
- 30A
- 2 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG22M0030TFFL
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG22M0030TFFL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG22M0030TFFL - 30A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG22M0025TFFL
25A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG22M0040TFFJ
40A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG22M0040TFFL
40A 2 Pole Molded Case Circuit Breaker
Description
Designed to protect commercial and marine electrical systems, this 30A Power Defense breaker utilizes a fixed thermal-magnetic trip mechanism. The unit mounts into standard Eaton enclosures and panelboards, acting as an exact cross-reference for discontinued HFD2030 components. Featuring an M-level interrupt rating of 65kAIC at 480V, it provides high-capacity fault clearing. The package includes load-side lugs to facilitate efficient field wiring and meets global IEC and UL standards.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG2 |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Enclosures, Panelboards |
| Wire Gauge | 14 AWG - 1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Bell Alarm, Shunt Trip, Undervoltage Release, Handle Mechanism |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, RoHS, UL 489 |
| Approval | CCC, CE, CSA, IEC, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, RoHS Compliant |
Product FAQs
5 answersCan the PDG22M0030TFFL be used to replace older Eaton Series C circuit breakers?
Yes. The Power Defense Frame 2 (PDG2) series is the direct replacement for legacy Eaton Series C F-Frame breakers, such as the FD, HFD, and FDC series. You will need updated Power Defense mounting hardware for the installation.
Are the lugs on the PDG22M0030TFFL interchangeable with older Series C terminals?
Yes. Power Defense Frame 2 (PDG2) breakers can use legacy Series C F-Frame terminals, and vice versa. This allows for flexible wire termination options during retrofits and panel upgrades.
Is the Eaton PDG22M0030TFFL suitable for reverse-feed applications?
Yes. Standard Power Defense Frame 1 and Frame 2 molded case circuit breakers can be reverse fed. Note that this capability applies to thermal-magnetic breakers but does not apply to motor circuit protectors (MCPs).
Can this 2-pole breaker be utilized in DC voltage systems?
Yes. In addition to standard AC applications, this breaker is rated for use in 250VDC systems, providing a 22 kAIC interrupting capacity for direct current installations.
Does this breaker include the ArcFlash Reduction Maintenance System (ARMS)?
No. The PDG22M0030TFFL is equipped with a fixed thermal-magnetic trip unit. ARMS technology is only available on Power Defense breakers equipped with advanced Power Xpert Release (PXR) electronic trip units.
