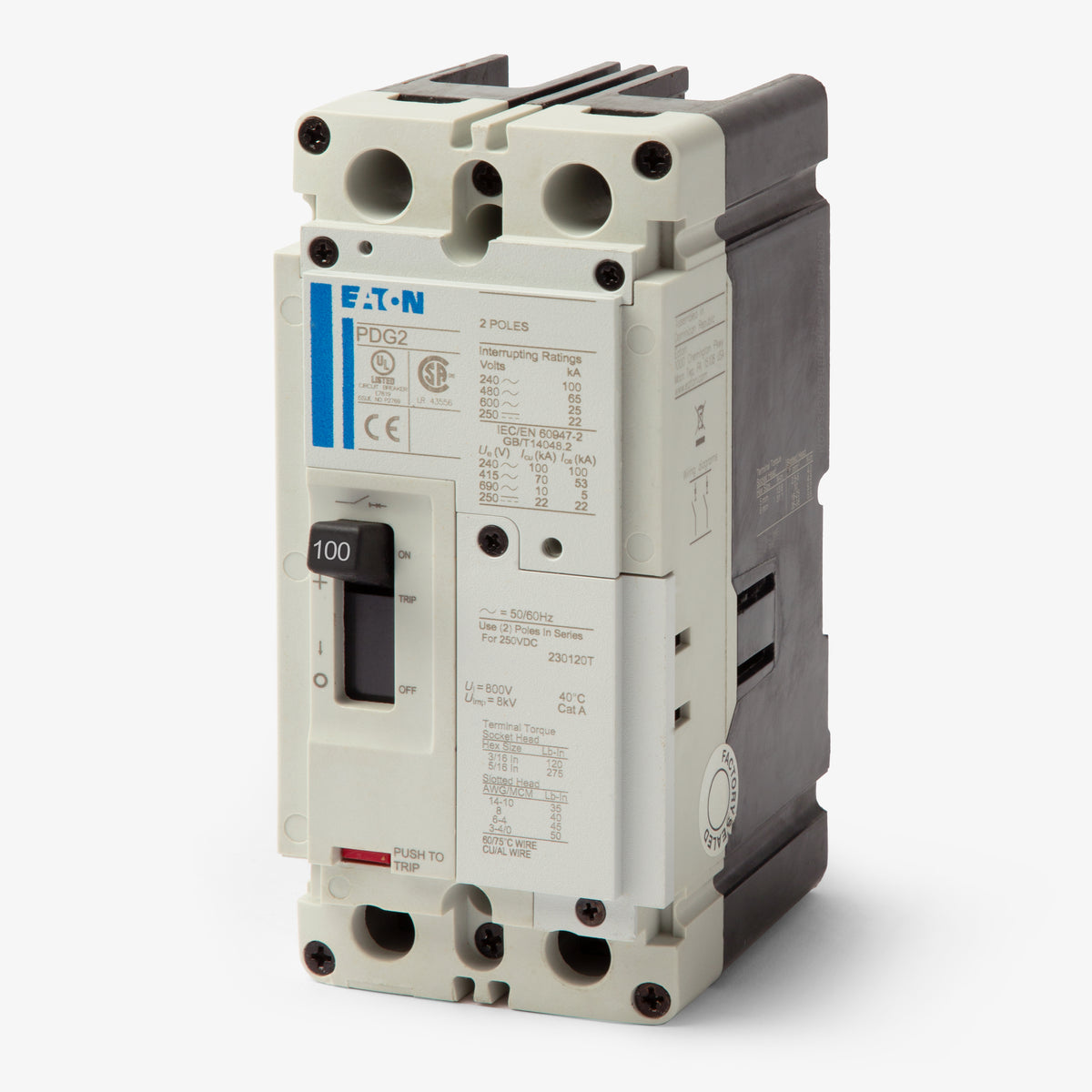

Eaton / Cutler-Hammer PDG22M0100TFFL Molded Case Circuit Breaker
- 100A
- 2 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG22M0100TFFL
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG22M0100TFFL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

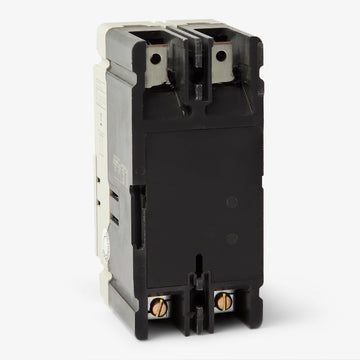

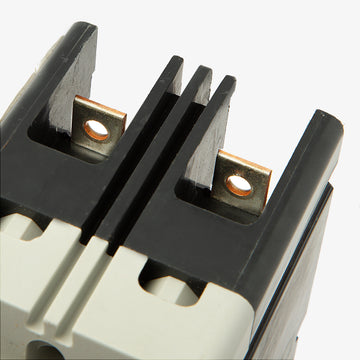

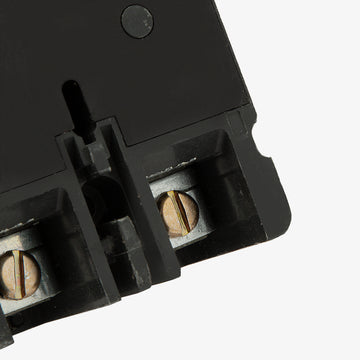

Eaton / Cutler-Hammer PDG22M0100TFFL - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG22M0090TFFL
90A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG22M0080TFFL
80A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG22M0125TFFJ
125A 2 Pole Molded Case Circuit Breaker
Description
Built for demanding industrial environments, the Eaton PDG22M0100TFFL delivers 100 amps of continuous power distribution. This 2-pole Power Defense MCCB is engineered to support critical commercial and marine electrical systems. Designed for panel mount installations, it fits perfectly into Eaton Power Defense and Series C F-Frame panelboards. It serves as a replacement for older FDC2100 and EGH2100FFG components.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG2 |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 35kA @ 600VAC, 22kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures, Series C F-Frame Panelboards |
| Wire Gauge | 14 AWG - 1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, RoHS Compliant |
Product FAQs
5 answersWhat older Eaton or Cutler-Hammer breaker does the PDG22M0100TFFL replace?
As a Power Defense Frame 2 circuit breaker, it serves as a direct drop-in replacement for older Series C F-Frame breakers with matching specifications, such as the 100A, 2-pole FDC2100. It matches the original F-Frame footprint while upgrading your panel to Eaton's modern breaker platform.
Which panelboards accept the PDG22M0100TFFL circuit breaker?
This bolt-on breaker is natively designed for Eaton Power Defense panelboards, switchboards, and enclosures. Because it shares the exact physical footprint of legacy models, it is also backwards-compatible with older Eaton and Cutler-Hammer Series C F-Frame panelboards.
Can I reuse existing F-Frame terminal lugs on this Power Defense breaker?
Yes. Eaton designed the Power Defense Frame 2 (PDG2) breakers to be compatible with the same terminal lugs used on legacy Series C F-Frame breakers. This cross-compatibility simplifies retrofits and wire management when upgrading an older panel.
Are the trip settings adjustable on the PDG22M0100TFFL?
No. This breaker is equipped with a thermal-magnetic trip unit featuring fixed Long-Time (L) and fixed Instantaneous (I) protection. Both the overload and short-circuit trip thresholds are factory-set and cannot be adjusted in the field.
What safety and compliance standards does the PDG22M0100TFFL meet?
As a globally rated breaker, it is certified to meet UL 489, CSA, IEC 60947-2, and CCC standards. This comprehensive compliance allows panel builders and OEMs to use a single breaker platform for equipment intended for both North American and international markets.
