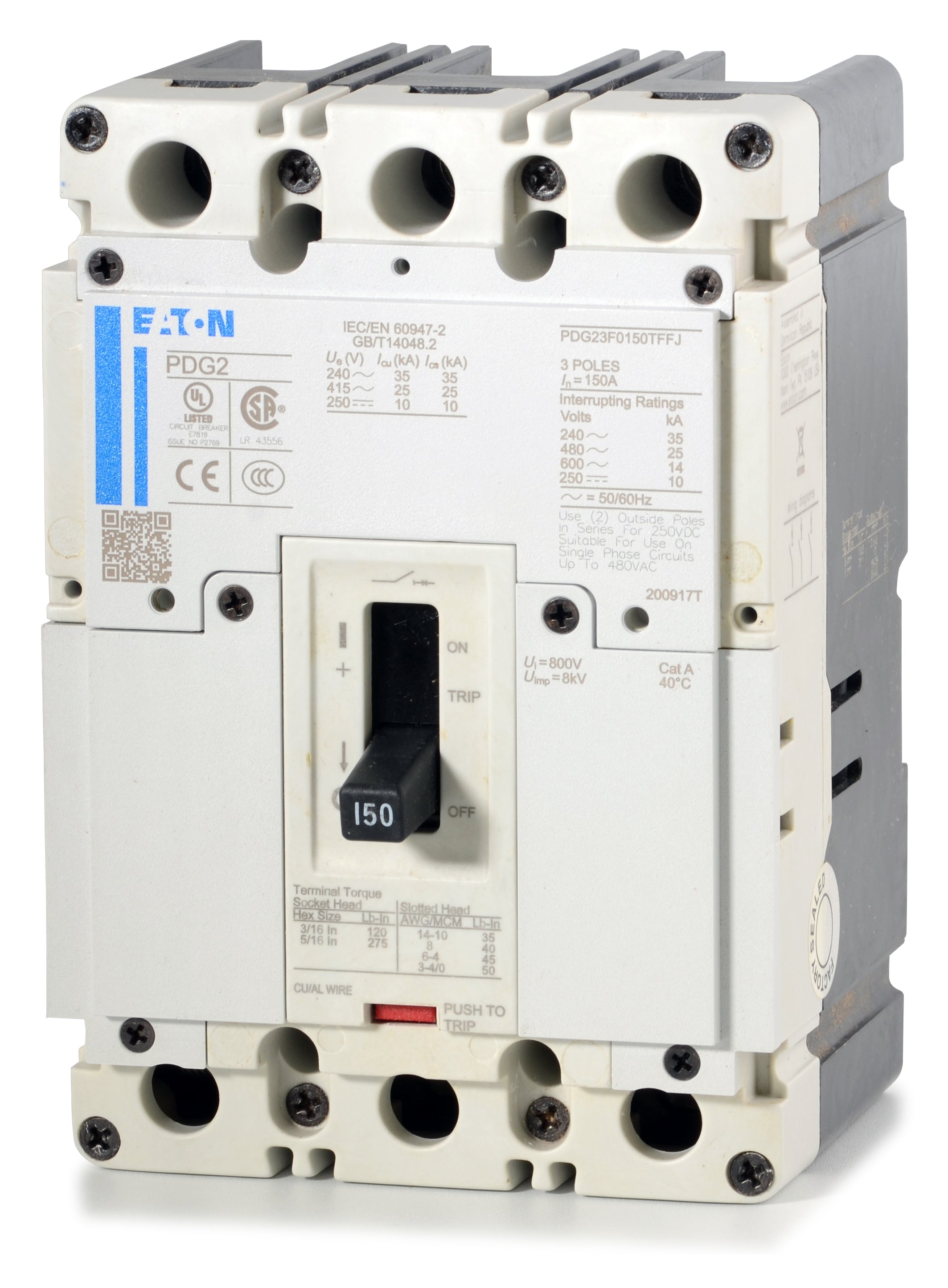

Eaton / Cutler-Hammer PDG23F0150TFFJ Molded Case Circuit Breaker
- 150A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG23F0150TFFJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG23F0150TFFJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG23F0150TFFJ - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG23G0150TFFJ
150A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23G0150TFFL
Eaton/Cutler-Hammer 3 Pole Circuit Breaker
Eaton / Cutler-HammerPDG23M0150TFFJ
150A 3 Pole Molded Case Circuit Breaker
Description
Designed to handle higher current loads, this 150A Power Defense MCCB ensures dependable power distribution across commercial, industrial, and marine applications. It integrates into Eaton panelboards and serves as a seamless, higher-interrupting upgrade for legacy 18kA FD3150 breakers. This 3-pole unit features a fixed thermal-magnetic trip mechanism, a 25kAIC rating at 480V, and includes standard line and load terminals for immediate deployment in modern electrical systems.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | PDG23F0150TFFJ |
| Series | PDG2 |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 35kA @ 240VAC, 25kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Power Defense Enclosures, Switchboards, Panelboards |
| Wire Gauge | 4 AWG - 4/0 AWG |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment, Handle Mechanism |
|---|---|
| Accessories | Standard Line and Load Terminals |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | RoHS Compliant |
Product FAQs
7 answersCan the PDG23F0150TFFJ replace older Eaton Series C F-Frame circuit breakers?
Yes, the Power Defense Frame 2 series is the direct modern replacement for legacy Series C F-Frame breakers, such as the 150A FD3150. Note that updated Eaton mounting hardware is required when upgrading to the Power Defense platform in existing equipment.
What does the F designator in the PDG23F0150TFFJ catalog number indicate?
In Eaton Power Defense nomenclature, the F indicates the breaker's interrupting capacity, which is rated at 25kAIC at 480VAC.
What type of terminals are included with the PDG23F0150TFFJ?
This breaker comes standard with line and load side lugs that accept 4 AWG to 4/0 AWG conductors. The J at the end of the catalog number designates these standard terminal connections.
Are legacy Series C F-Frame lugs compatible with this Power Defense breaker?
Yes, Eaton Power Defense Frame 2 breakers are physically compatible with legacy Series C F-Frame terminals, allowing you to reuse existing lugs or install F-Frame lug kits if needed.
What protection advantages does the fixed thermal-magnetic trip unit offer?
The fixed thermal and fixed magnetic trip unit provides reliable, tamper-proof protection against long-time overloads and instantaneous short circuits. Because the settings are fixed, it prevents unauthorized or accidental adjustments in the field.
What types of equipment is the PDG23F0150TFFJ designed to be installed in?
This 3-pole breaker is engineered for seamless integration into Eaton Power Defense enclosures, switchboards, and panelboards.
Is the PDG23F0150TFFJ suitable for DC electrical systems?
Yes, in addition to its AC ratings, this breaker is rated for up to 250VDC with a 10kAIC interrupting capacity.
