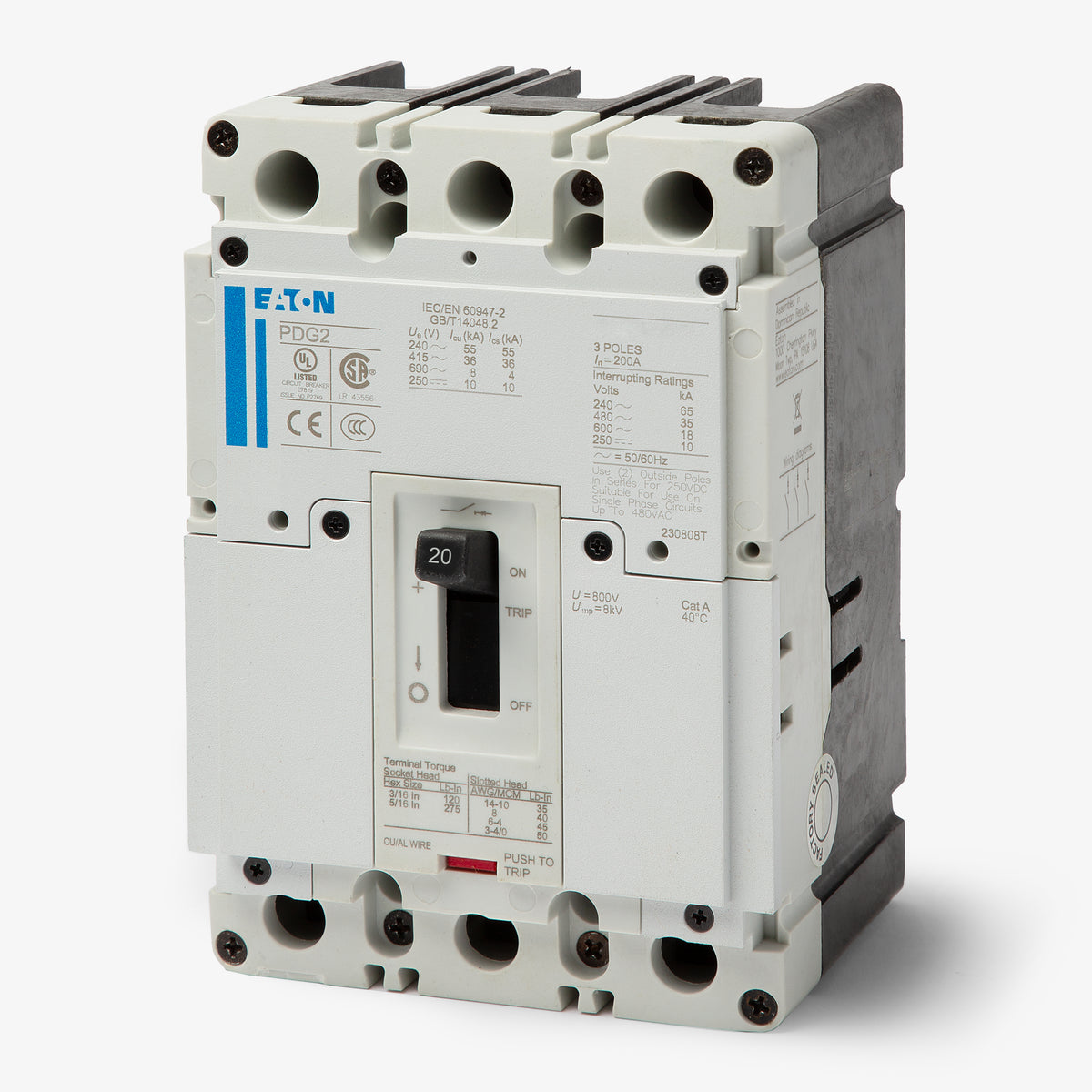

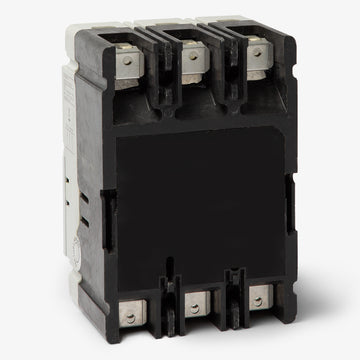

Eaton / Cutler-Hammer PDG23G0020TFFJ Molded Case Circuit Breaker
- 20A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG23G0020TFFJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG23G0020TFFJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG23G0020TFFJ - 20A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG23M0020TFFJ
20A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23M0020TFFL
20A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23G0025TFFL
Eaton/Cutler-Hammer 3 Pole Circuit Breaker
Description

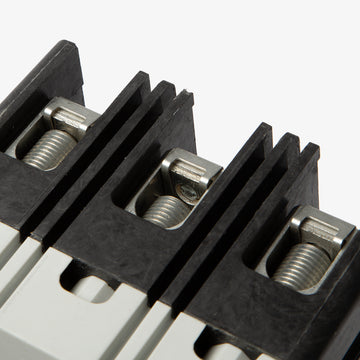

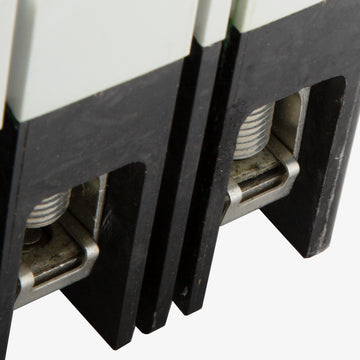

Designed for straightforward installation, the Eaton PDG23G0020TFFJ comes equipped with standard line and load lugs out of the box. This 3-pole, 20A breaker belongs to the globally rated Power Defense Frame 2 family, mounting easily into compatible Eaton switchboards and panelboards. It acts as an exact substitute for legacy FD3020 breakers. Delivering 65kAIC at 240V and 35kAIC at 480V, the unit utilizes fixed thermal and magnetic trip functions to defend against overloads and short circuits.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | PDG23G0020TFFJ |
| Series | PDG2 |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures |
| Wire Gauge | 14 AWG - 1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Bell Alarm, Shunt Trip, Undervoltage Release, Padlock Attachment, Handle Lock, Rotary Handle, Motor Operator, Terminal Shields |
|---|---|
| Accessories | Line and Load Lugs Included (PDG2X3T100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | Current Limiting, Globally Rated, RoHS Compliant, HACR Rated |
Product FAQs
6 answersDoes the Power Defense PDG23G0020TFFJ replace older Eaton Series C breakers?
Yes, the Power Defense Frame 2 series is the modern replacement for legacy Eaton Series C F-Frame breakers. Because the physical mounting arrangement differs, updated mounting hardware is required when retrofitting this breaker into existing equipment.
What does the "G" indicate in the PDG23G0020TFFJ catalog number?
In Eaton's Power Defense nomenclature, the "G" designates the interrupting rating tier. For this Frame 2 breaker, it indicates a capacity of 35kA at 480VAC and 65kA at 240VAC.
What do the letters "TFF" stand for in this breaker's part number?
"TFF" indicates the trip unit configuration. It specifies a thermal-magnetic trip unit with fixed thermal and fixed magnetic protection settings.
What protection functions are included in the LI trip unit on this breaker?
The LI designation indicates that this thermal-magnetic breaker provides Long-Time overload protection and Instantaneous short-circuit protection.
Can the Eaton PDG23G0020TFFJ be reverse fed?
Yes, this thermal-magnetic Power Defense Frame 2 breaker is suitable for reverse feed applications.
What equipment is the PDG23G0020TFFJ designed to be installed in?
This Frame 2 molded case circuit breaker is engineered for use in Eaton Power Defense panelboards, switchboards, and compatible standalone enclosures.
