Eaton / Cutler-Hammer PDG23G0050TFFJ Molded Case Circuit Breaker
- 50A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG23G0050TFFJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG23G0050TFFJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

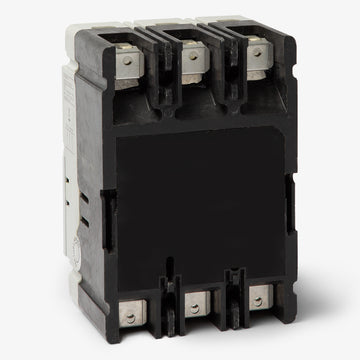

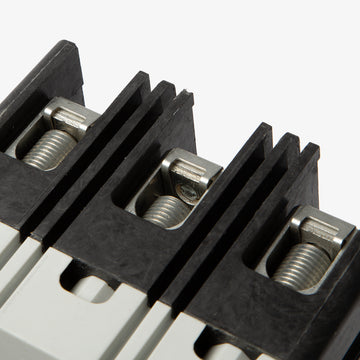

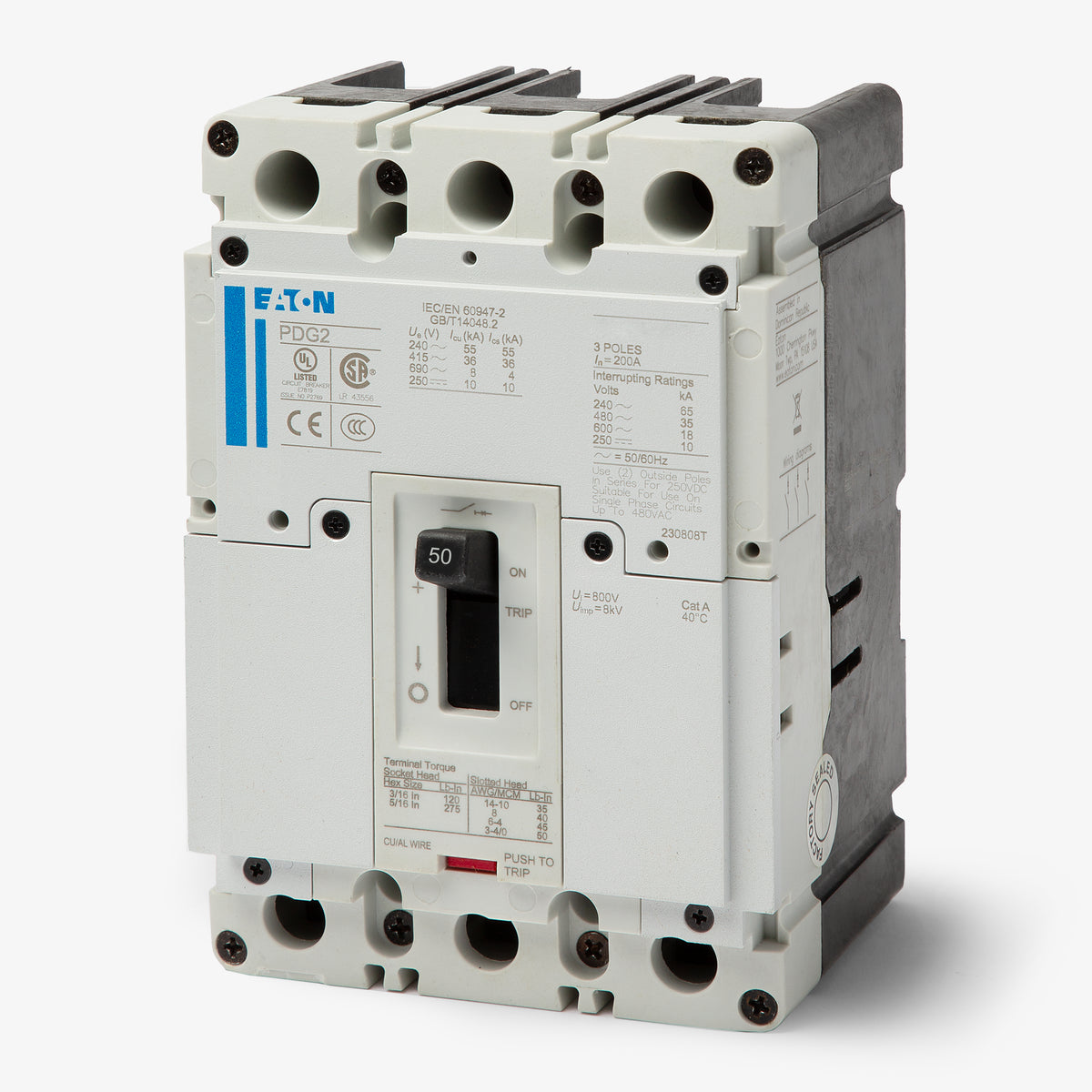

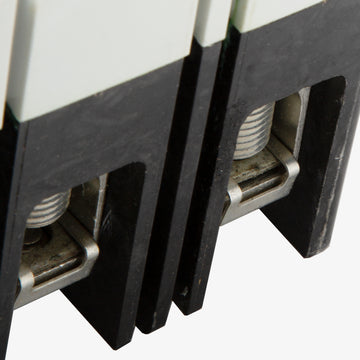

Eaton / Cutler-Hammer PDG23G0050TFFJ - 50A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG23M0050TFFJ
50A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23M0050TFFL
50A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23G0045TFFL
45A 3 Pole Molded Case Circuit Breaker
Description
Built for industrial power distribution, the Eaton PDG23G0050TFFJ is a 50A, 3-pole molded case circuit breaker from the globally recognized Power Defense series. It delivers consistent performance in harsh environments. Designed for panel mounting, this Frame 2 MCCB integrates seamlessly into Eaton Power Defense panelboards and switchboards. It replaces older FD3050 models. The breaker features a 35kAIC rating at 480VAC, fixed thermal-magnetic trip functions, and standard line and load lugs.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | PDG23G0050TFFJ |
| Series | PDG2 |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures |
| Wire Gauge | 14 AWG - 1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Rotary Handle, Motor Operator |
|---|---|
| Accessories | Line and Load Terminals (PDG2X3T100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | Current Limiting, HACR Rated, RoHS Compliant |
Product FAQs
7 answersWhat does "TFF" mean in the PDG23G0050TFFJ catalog number?
The "TFF" designation indicates a thermal-magnetic trip unit with a Total Fixed configuration. This means both the thermal overload and magnetic short-circuit trip settings are factory set and cannot be adjusted in the field.
What does the "G" signify in the PDG23G0050TFFJ part number?
In the Eaton Power Defense nomenclature, the "G" designates the specific interrupting capacity tier. For this Frame 2 breaker, it indicates a short-circuit interrupting rating of 35kAIC at 480VAC.
Is the PDG23G0050TFFJ a direct replacement for older Eaton Series C F-Frame breakers?
Yes, the Power Defense Frame 2 (PDG2) series replaces legacy Eaton Series C F-Frame breakers of the same amperage and pole configuration. It maintains the same electrical application and current rating, requiring only updated Eaton mounting hardware for installation.
What enclosures and panelboards accept the PDG23G0050TFFJ?
This Frame 2 breaker is engineered for Eaton Power Defense panelboards, switchboards, and enclosures. It is also backwards compatible with legacy Eaton Series C panelboards when installed with the appropriate updated mounting hardware.
What wire sizes do the standard lugs on the PDG23G0050TFFJ accommodate?
The factory-installed line and load lugs accept wire gauges from 14 AWG to 1/0 AWG. Ensure proper torque specifications are followed during installation as outlined by Eaton.
Can the PDG23G0050TFFJ be reverse fed?
Yes, Eaton Power Defense thermal-magnetic molded case circuit breakers are suitable for reverse-feed applications. This allows the line and load connections to be swapped if required by the specific panel layout.
What safety standards does the Power Defense PDG23G0050TFFJ meet?
As part of Eaton's globally rated Power Defense platform, this breaker is compliant with major international and North American safety standards, including UL 489, CSA C22.2 No. 5, and IEC 60947-2.
