Eaton / Cutler-Hammer PDG23G0070TFFJ Molded Case Circuit Breaker
- 70A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG23G0070TFFJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG23G0070TFFJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

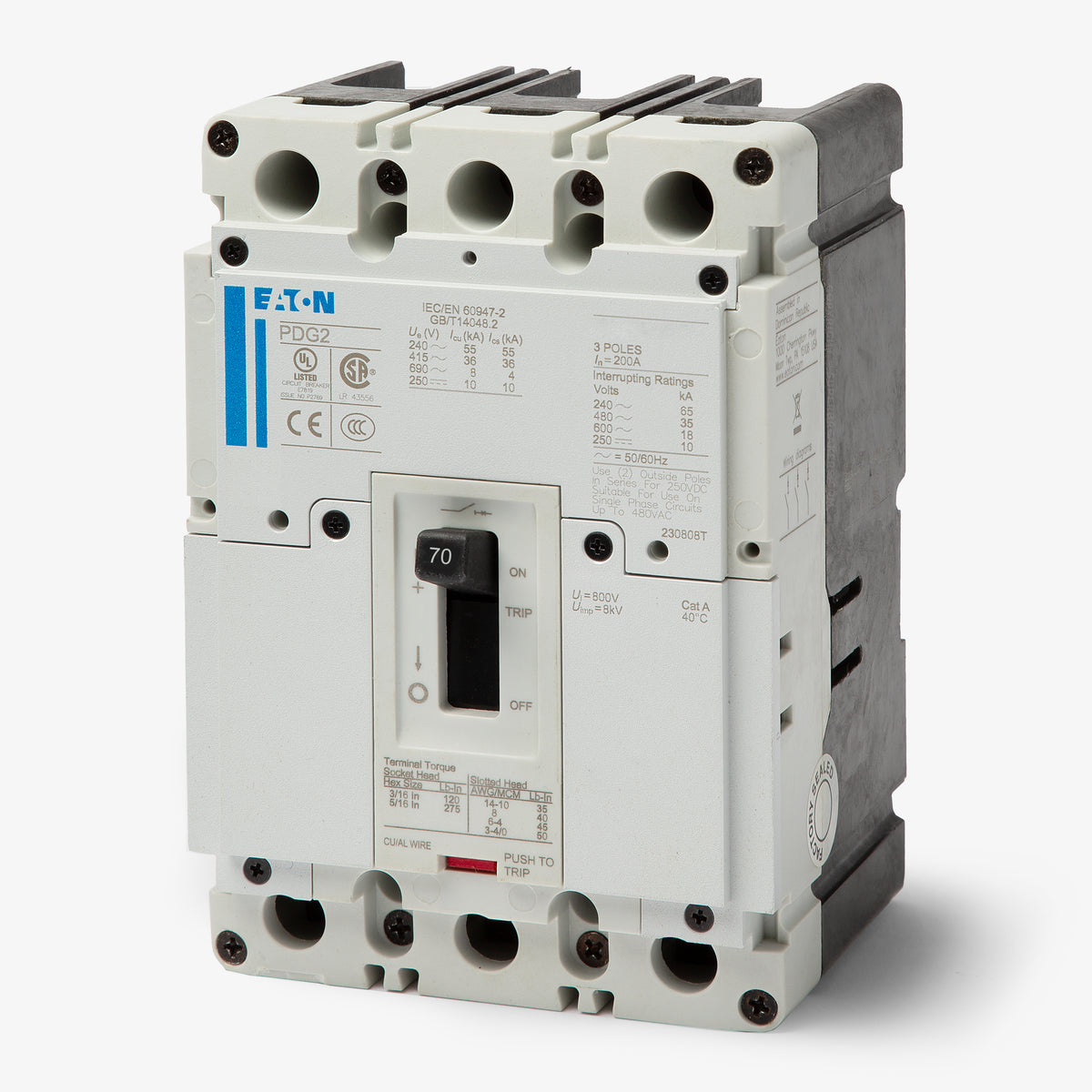

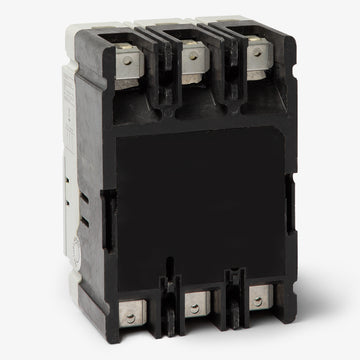

Eaton / Cutler-Hammer PDG23G0070TFFJ - 70A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton/Cutler-HammerPDG23M0070TFFL
3 Pole Circuit Breaker
Eaton / Cutler-HammerPDG23M0070TFFJ
70A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23G0080TFFJ
80A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial distribution, the Eaton PDG23G0070TFFJ is a 3-pole, 70A molded case circuit breaker from the Power Defense family. It provides reliable long-time and instantaneous (LI) protection. This panel-mount breaker installs into Eaton switchboards and enclosures, serving as a seamless upgrade for legacy FD3070 units. It includes standard line and load terminals. Rated 35kAIC at 480V, the Frame 2 MCCB features a fixed thermal-magnetic trip unit.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | PDG23G0070TFFJ |
| Series | PDG2 |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | 2 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures |
| Wire Gauge | 14 AWG - 1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Handle Mechanism |
|---|---|
| Accessories | Standard Line and Load Terminals |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, Current Limiting, RoHS Compliant |
Product FAQs
7 answersWhat legacy Cutler-Hammer breaker does the PDG23G0070TFFJ replace?
This Power Defense Frame 2 breaker serves as a direct upgrade and replacement for the legacy Series C FD3070 molded case circuit breaker.
Can I use legacy Series C F-frame terminals on this Power Defense breaker?
Yes, Eaton Power Defense Frame 2 breakers are fully compatible with legacy Series C F-frame terminals and lugs.
Does replacing an older Series C breaker with this Power Defense model require new mounting hardware?
Yes, because the Power Defense platform uses a different physical mounting arrangement than legacy Series C breakers, updated Eaton mounting hardware is required during installation.

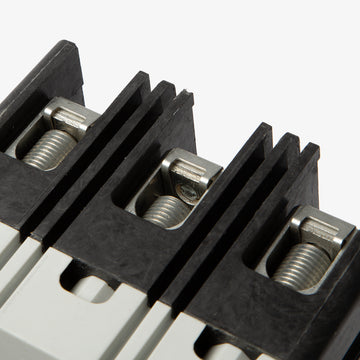

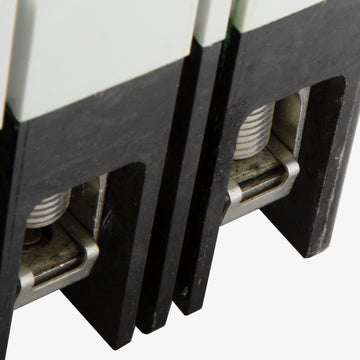

What wire sizes and materials are supported by the standard feed-thru lugs?
The factory-installed lugs accept both aluminum and copper conductors ranging from 14 AWG to 1/0 AWG.
Is this 70A breaker suitable for DC voltage applications?
Yes, in addition to its AC ratings, this breaker is rated for 250VDC applications with a 10kAIC interrupting capacity.
Can I adjust the thermal or magnetic trip settings on this breaker?
No, the PDG23G0070TFFJ features a fixed thermal and fixed magnetic trip unit. It provides standard long-time and instantaneous (LI) protection without adjustable dials.
What type of enclosures and panels is this Frame 2 breaker designed for?
It is engineered specifically for panel mount installations within Eaton Power Defense panelboards, switchboards, and approved enclosures.
